Safran CORTEX Series - Figure 101: Demodulator: Global Window for QPSK Modulation + Custom Filter; Figure 102: Demodulator: Global Window for OQPSK Modulation

HIGH DATA RATE RECEIVER
HDR-4G+ USER’S MANUAL
Ref. DTU 100782
Is.Rev 3.5
Date: June 1, 2021
© Safran Data Systems – IMP000074 e14r1
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
Page 253
 BPSK, QPSK Modulation, custom filter:

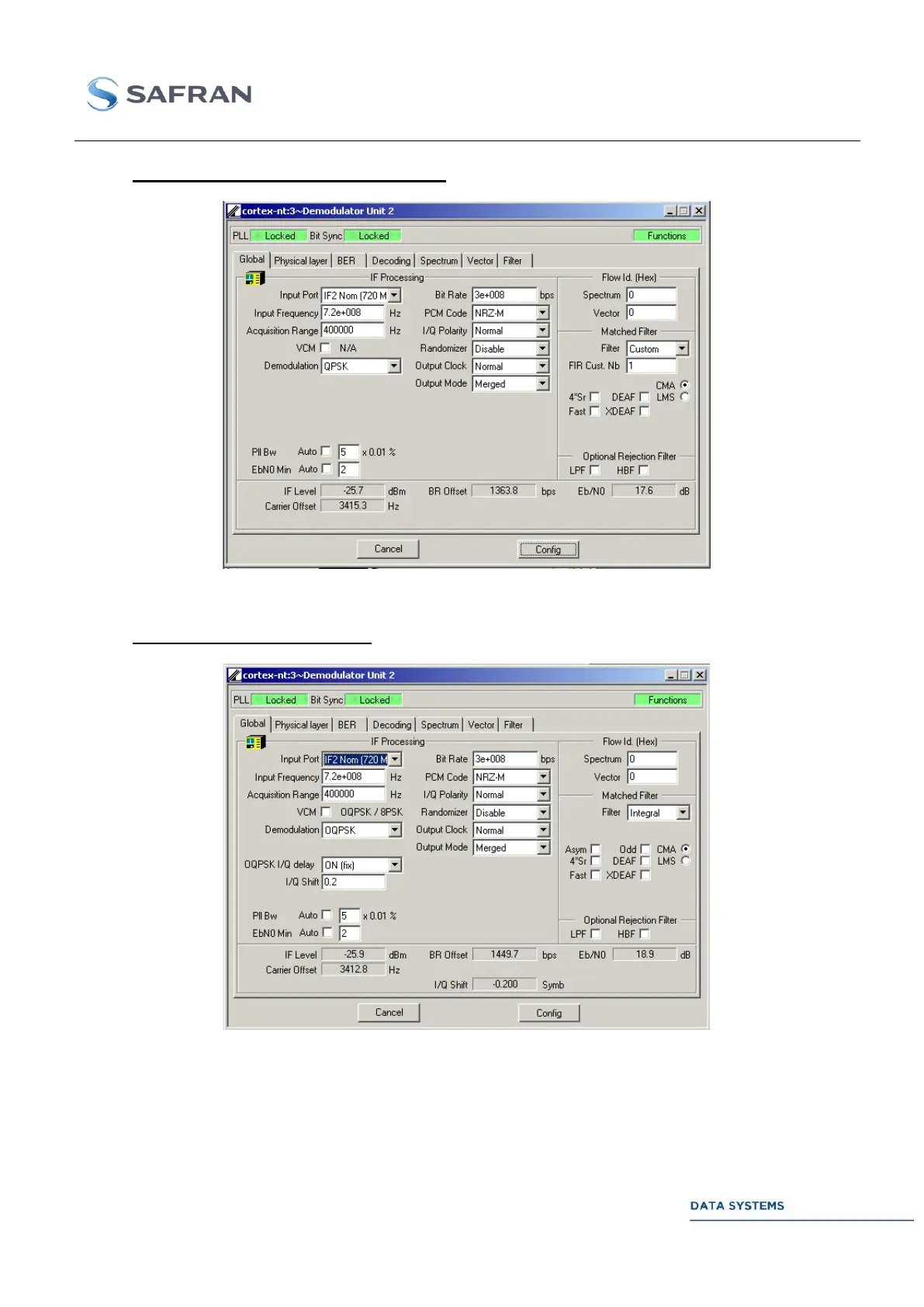

Figure 101: Demodulator: Global Window for QPSK Modulation + Custom Filter
 OQPSK (SQPSK) Modulation:
Figure 102: Demodulator: Global Window for OQPSK Modulation
