“Physical layer status” Window 4.5.4.3

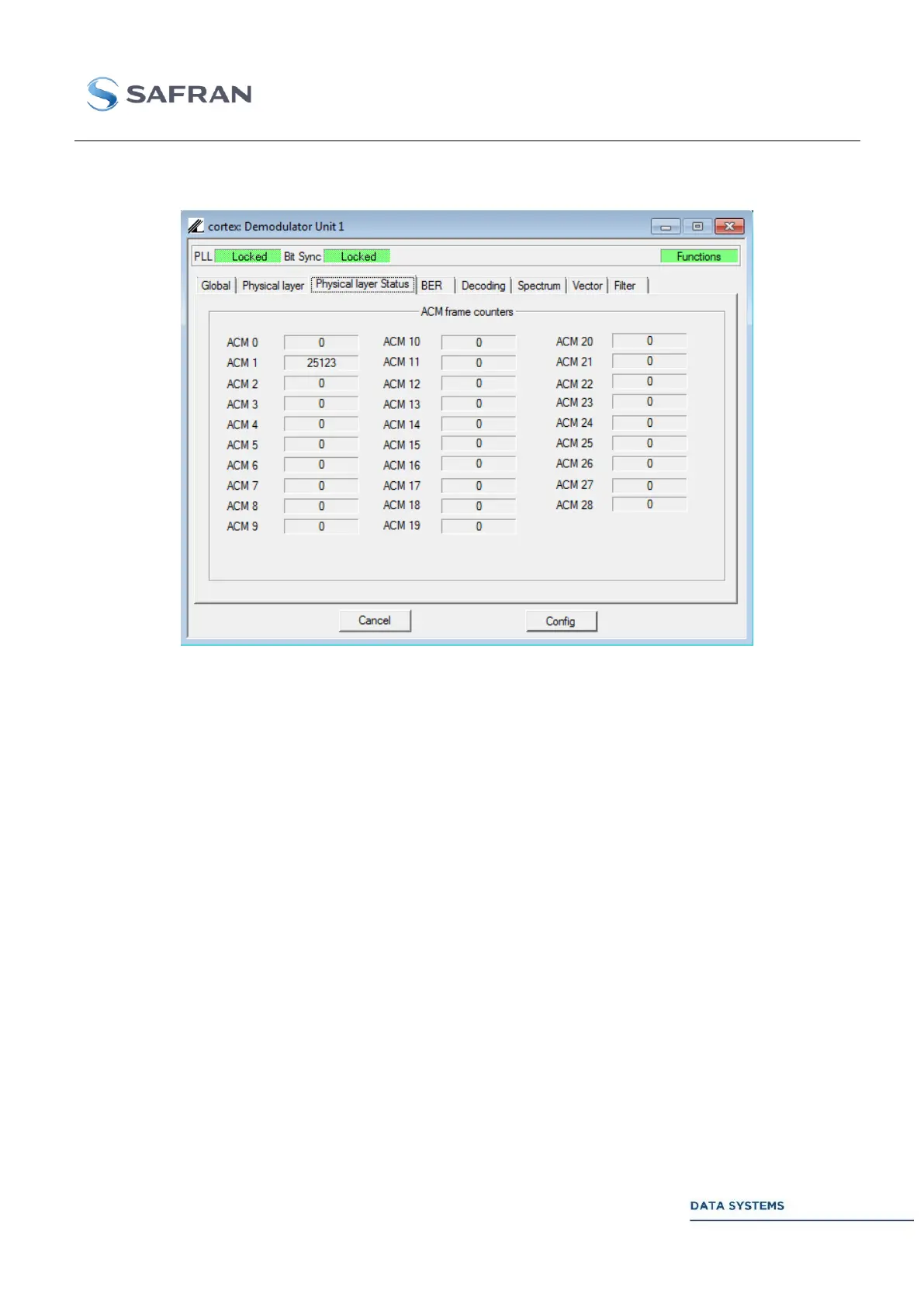

Figure 115: Demodulator: Physical layer status window for SCCC and DVB-S2 standard
Monitoring 4.5.4.3.1
Statuses in this window are described in DMU.
ACM N
Counters of received frames for the different ACM.
OTHER ACM
Counters of received frames for ACM numbers above 28.
