TIME-TAG FORMAT
Time tag format.
3 is the standard code format: field N is the number of seconds elapsed since
January 1st, 0:00:00:000 of current year. Field N+1 is the number of
microseconds in the current second. Both fields are 32-bit integers coded in
hexadecimal form. Other codes reserved.
STATUS FORMAT
TM Block status format
NUMBER OF TM FILES
Number of TM Files on the disk
“FTP” window 4.5.7.3

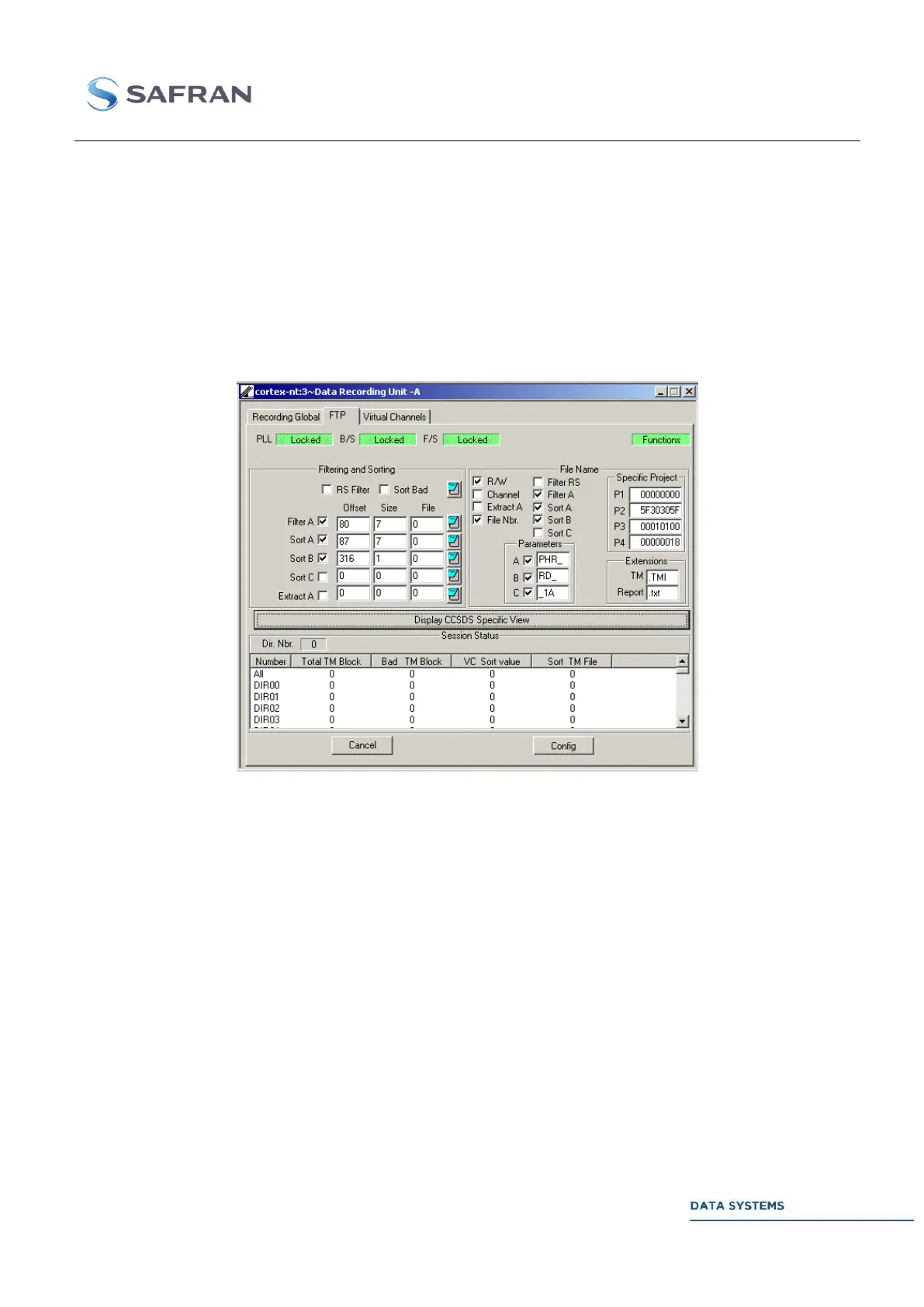

Figure 142: DRU: FTP Window (Generic)
