Additional MCS Documents can be created at will by the operator. A set of MCS Documents (common
satellites configuration) is available on the hard disk C:\Program Files\IN-
SNEC\crtxMcs\DefaultConfig).
A copy of the original MCS files (those installed from the CORTEX reference CD-ROM) is available in
directory C:\Program Files\IN-SNEC\crtxMcs\DefaultConfig_ref. These files are in read-only mode.
They can be copied to the working directory (C:\Program Files\IN-SNEC\crtxMcs\DefaultConfig) if
necessary (remove the read-only protection on the copies).
MCS documents are binary files. They cannot be displayed on the screen or printed out, except if the
MCS software package is installed in a remote PC with printing capability (PRINT PREVIEW & PRINT
commands).
MCS Start Sequence. MCS Control Status 4.3.3
shhjdssdh kjdsk wks ,jhkjhsh kjshchsckd lisclslk lkdjlkj
shhjdssdh kjdsk wks ,jhkjhsh kjshchsckd lisclslk lkdjlkj
shhjdssdh kjdsk wks ,jhkjhsh kjshchsckd lisclslk lkdjlkj
shhjdssdh kjdsk wks ,jhkjhsh kjshchsckd lisclslk lkdjlkj
shhjdssdh kjdsk wks ,jhkjhsh kjshchsckd lisclslk lkdjlkj
shhjdssdh kjdsk wks ,jhkjhsh kjshchsckd lisclslk lkdjlkj
shhjdssdh kjdsk wks ,jhkjhsh kjshchsckd lisclslk lkdjlkj
shhjdssdh kjdsk wks ,jhkjhsh kjshchsckd lisclslk lkdjlkj
shhjdssdh kjdsk wks ,jhkjhsh kjshchsckd lisclslk lkdjlkj
OK / DIFFER
cortex-nt.mcs
IP address
IN-SNEC MCS
CORTEX SPS
GUI
TCP-IP
1
2
3
5
4
?
M&C Clients
CTX table
MCS table
IP address
Configuration
Parameters only
(see STI100013)
TM Quick look
setting
IP address
Configuration
Parameters
& Global status
(see STI100013)
TM Quick look
setting
Configuration
Parameters
And
Status
(see STI100013)
Global status
setting

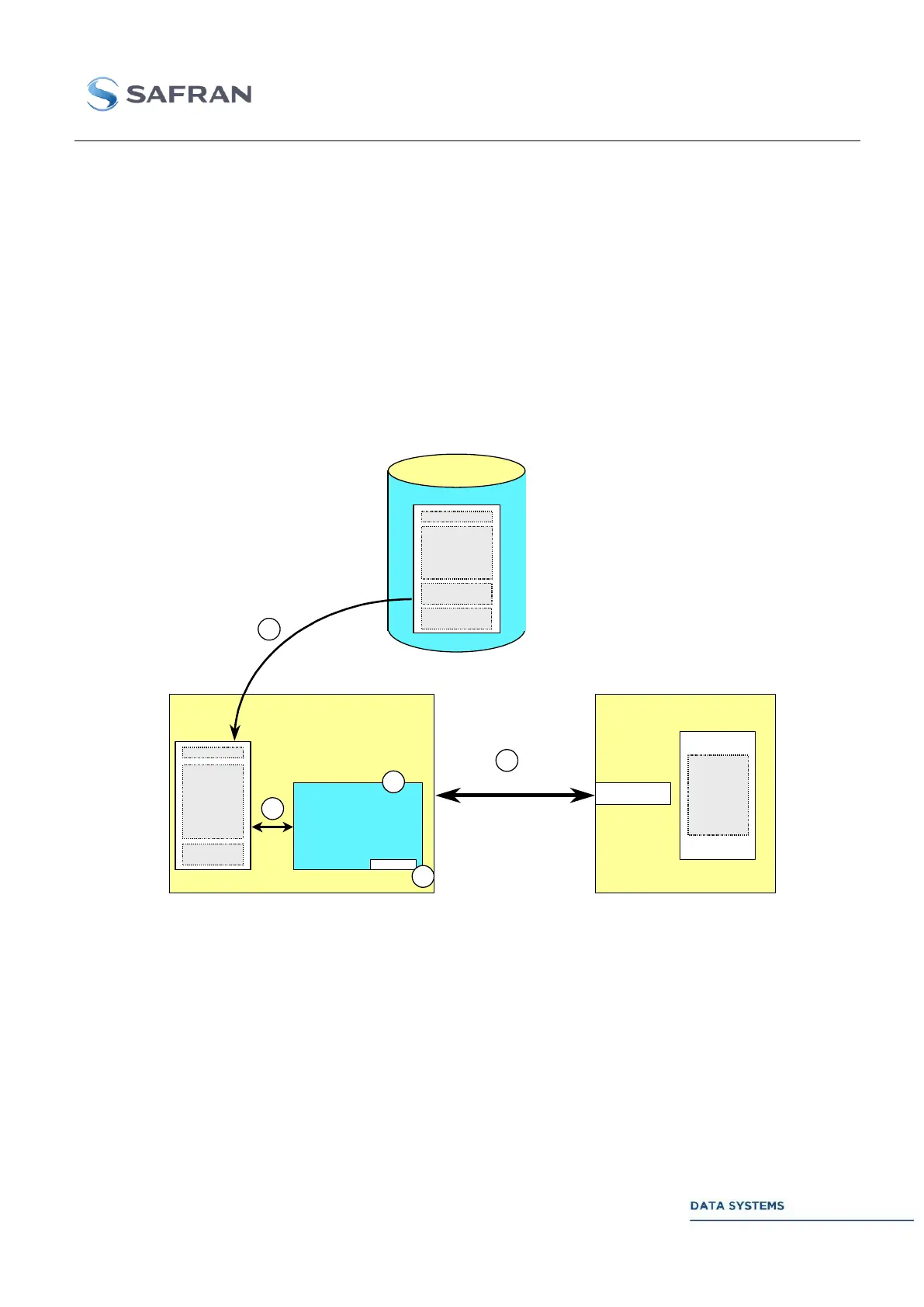

Figure 80: MCS Start Sequence
