I/O CONNECTORS DEFINITION 2.2
CPU Board I/Os 2.2.1
The only operational I/O ports on the CPU board ar:
 Dual port RJ45 Gigabit Base-T Ethernet ports, used for connection to the Ethernet network(s)
 Dual port 10 Gigabit RJ45 copper or LC fiber-optic connectors (configuration dependent)
About detail see Intel® Ethernet Converged Network Adapter series X520 or consult factory.
See Annex 4 for more details on the CPU board.
Demodulator & Test Modulator I/Os 2.2.2
HDR 4G/4G+ I/Os 2.2.2.1

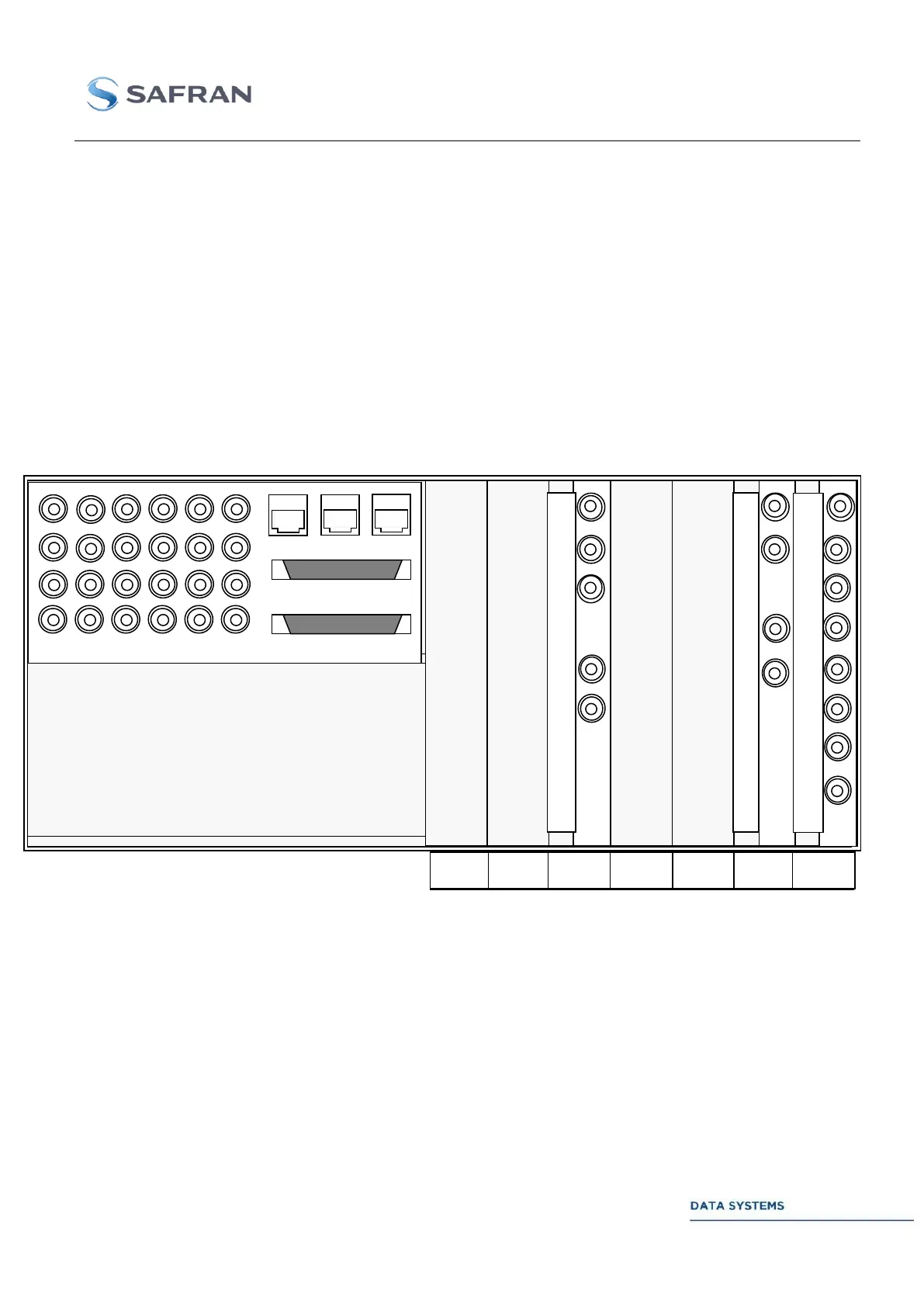

Figure 10: CORTEX HDR 4G/G+ I/Os
J20
CLK+
RX
J50
IF OUT1
J51
IF OUT2
J52
ECL
IN 1
J57
10 MHz
IN
TX
RX
IF INPUT
J1
NOM IF1
J2
ALT IF1
J3
NOM IF2
J4
ALT IF2
J5
AGC
OUT1
J6
AGC
OUT2
J7
IRIG IN
J8
10 MHz
IN
J9
1PPS
IN
J53
ECL
IN 2
J54
ECL
IN 3
J55
ECL
IN 4
J56
ECL
IN 5
IN1+
IN1-
IN2+
IN2-
J72 LVDS
DEM IN1
J70 LVDS
DEM OUT1
J71 LVDS
DEM OUT2
J73 LVD DATA OUT
J74 LVDS DATA IN
J10 CLK+
J20 CLK+
J24 OUT2+
J60 CLKIN+
J64 IN2+
J11 CLK-
J21 CLK-
J25 OUT2-
J61 CLKIN-
J65 IN2-
J12 OUT1+
J16 OUT3+
J22 OUT1+
J26 OUT3+
J62 IN1+
J66 IN3+
J13 OUT1-
J17 OUT3-
J23 OUT1-
J27 OUT3-
J63 IN1-
J67 IN3-
J14 OUT2+
J15 OUT2-
