The created directories arborescence is given by the following figure:

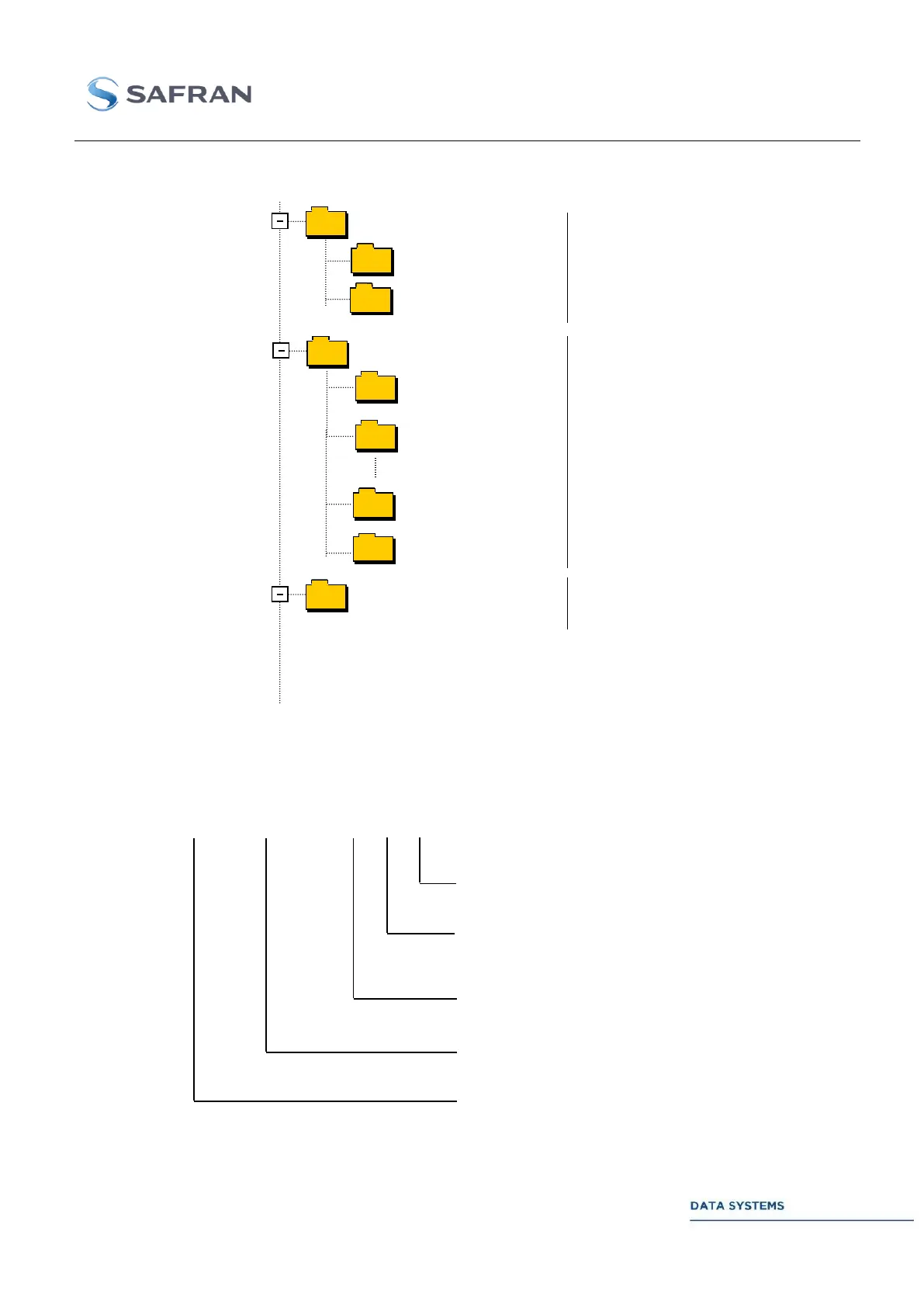

Figure 44: CCSDS FTP Mode Storage Directories
The names of the recorded data files are defined by the SORT_A_0.txt configuration file and by the
set-up in the FTP window, an example of a file name is given below:
DiskController_1_00
VC_63
VC_XX
Report_TMA
Report_TMB
DiskController_1_01
DiskController_1_02
VC_00
VC_01
Directories for session report
files for TMA and TMB
1 report file per recording
session
TMA
Directories for the 64 VCID
+
Directory for unidentified VCID (>63)
TMB
(same structure as TMA)
R_20070225093835_00001.TMI
File extension defined in the FTP
window set-up
Files number enable in the FTP
window set-up
Marker for VCID 0, defined in the
SORT A configuration file and
enable in the FTP window set-up
Date of the creation of the file (default
name)
Read / Write indicator:
W_: the file is currently being writing
R_: the file is available and can be get
Marker enable in the FTP window set-up
