Single or Dual Viterbi Decoder 3.3.3.2
The Viterbi decoding module can operate either in single mode or in dual mode:
 In the single mode, there is only one Viterbi decoder connected to the Demodulator module (I
& Q output channels of the demodulator are connected to G1 & G2 inputs of the Viterbi
decoder).
 In the dual mode, the Viterbi decoding module has two separate Viterbi decoders on I and Q
Channels.
QPSK, OQPSK
Viterbi
decoder
G1
G2
I channel
Q channel
Data
IF input
Vector Demodulator Viterbi Decoding Module
QPSK, OQPSK
UQPSK,
BPSK (I only)
Viterbi
decoder
G1
G2
I channel
Q channel
I channel
Q channel
IF input
Vector Demodulator
Viterbi Decoding Module
Viterbi
decoder
Z
-1
G1
G2
Z
-1

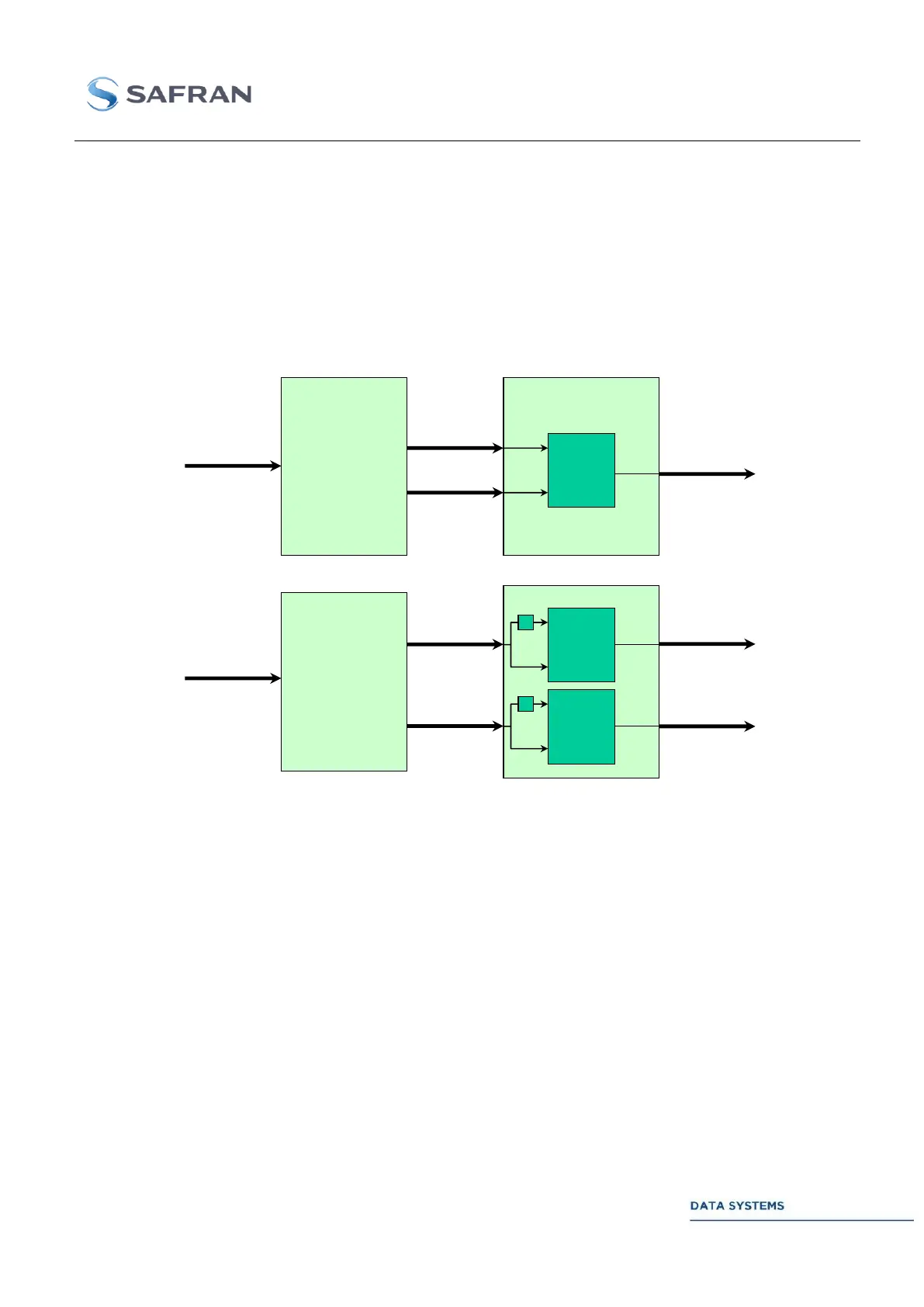

Figure 15: Viterbi Decoding Module. Single & Dual Operating Modes
