HIGH DATA RATE RECEIVER
HDR-4G+ USER’S MANUAL
Ref. DTU 100782
Is.Rev 3.5
Date: June 1, 2021
© Safran Data Systems – IMP000074 e14r1
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
Cable equalizer filter 3.7
The purpose of the optional cable equalizer filter is to compensate for cable degradation by means of
a digital equalizer integrated to the receiver. Analog equalizers are commonly used to solve this
problem; however a digital implementation offers the following advantages:
More flexibility,
Higher performances.
The primary cause of transmission loss below 1 GHz is skin effect, which is proportional to the square
root of frequency:
Amplitude Loss
(dB)
= A * sqrt (frequency)

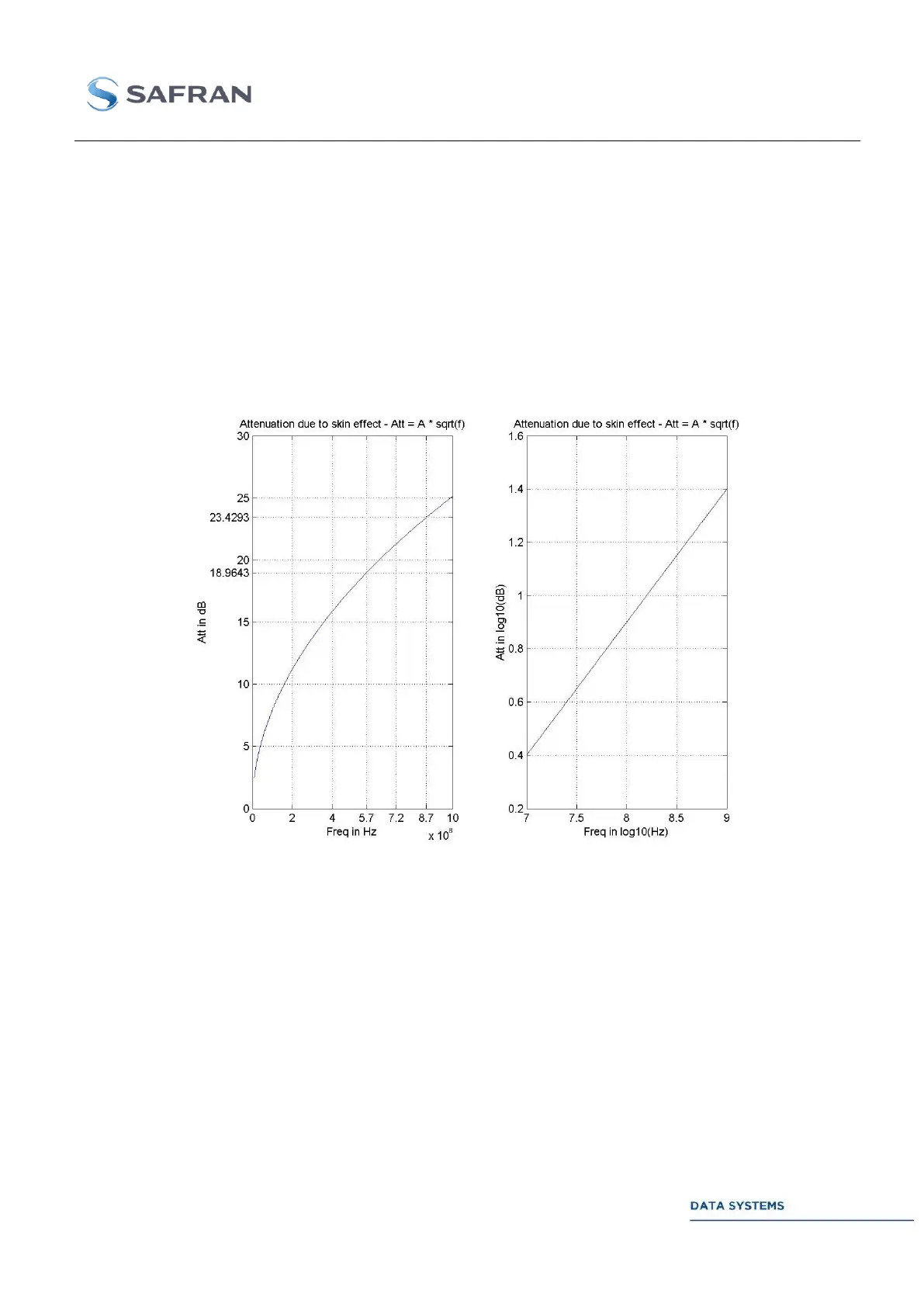

Figure 74: Example of Non-linearity in a RG188A/U Cable
Since this type of non-linearity is almost linear between 500 MHz and 1 GHz (above figure), it can be
well compensated by a straight line with opposite rope of the tangent.
The sampled signal is filtered before baseband transposition. By this way, a symmetrical low-pass filter
can be implemented:
