 For dual Viterbi configuration:
BER I
Viterbi Bit Error Rate on I Channel (must be 0 if no error)
BER Q
Viterbi Bit Error Rate on Q Channel (must be 0 if no error)
VITERBI DECODER I
Viterbi decoder status for I Channel:
 Locked
 Unlocked
 Disabled
VITERBI DECODER Q
Viterbi decoder status for Q Channel:
 Locked
 Unlocked
 Disabled
“Spectrum” Window 4.5.4.6

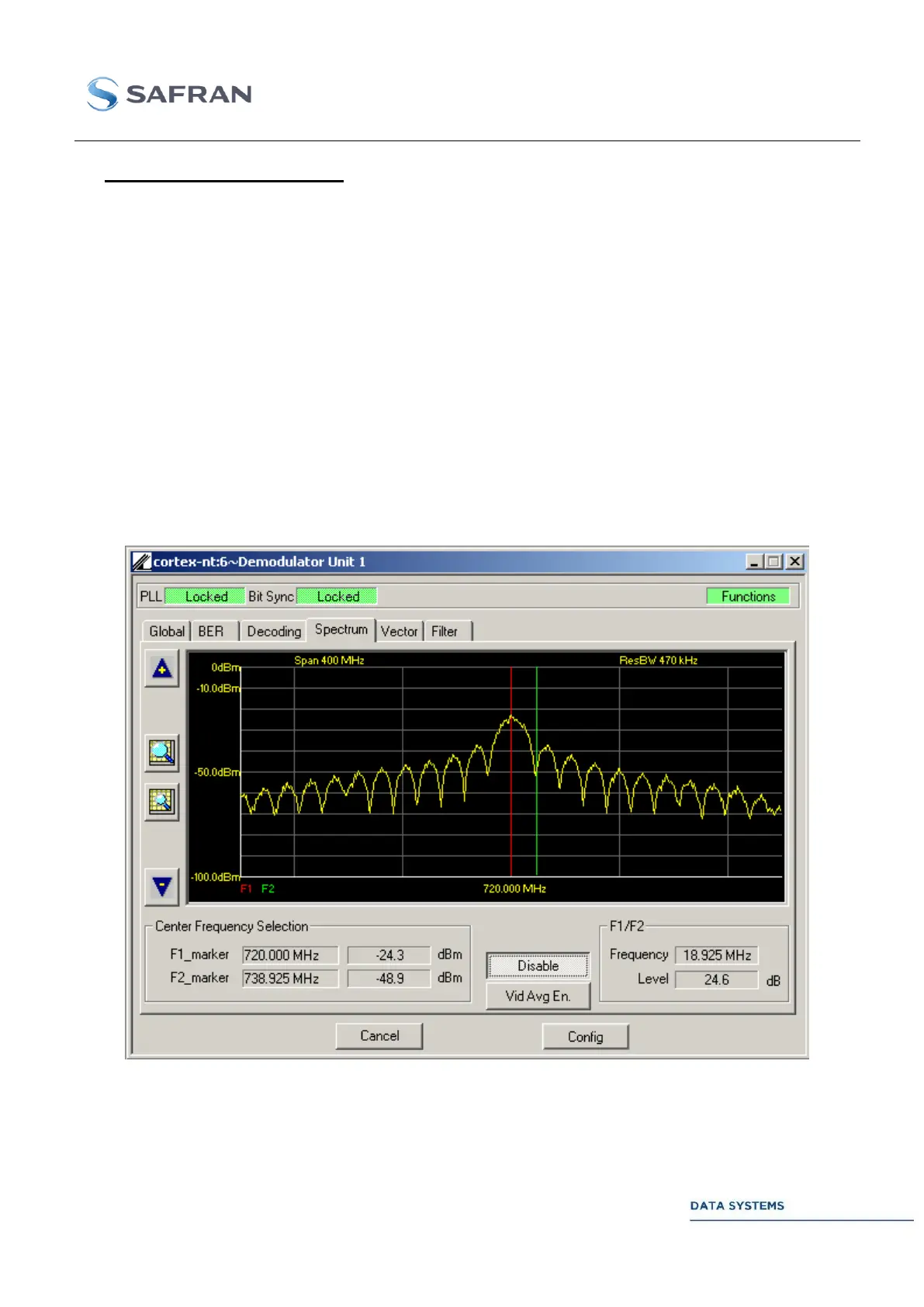

Figure 123: Demodulator: Spectrum Window
