Control 4.5.8.1.1.4
DATA
Simulated telemetry data source:
 Off: For reset purposes
 File: Read data from a file
 File I/Q: Select two different files for I and Q
 Playback: Connect the test modulator unit with the Playback
 Pseudo XX: Pseudo random data from PRN generator XX. See Section
3.6.1.1.1
 External: External source of data
OFFSET (BITS)
In multi DGU mode, adjustable offset between DGU
FILE NUMBER
FILE NUMBER Q
File number for BER in File mode: enter any value from 0 to 4,294,967,295
CYCLE LENGTH
CYCLE LENGTH Q
Cycle length for File mode only (in bytes). Enter a value from 4,194,303 bytes
PLAYBACK AUTO
If selected insert PRN data before and after the actual recorded data in Playback
INVERSE DATA
If selected invert the data to be modulated
PRN INIT.
Initializing vector for PRN data generation
“Internal Framing” Window 4.5.8.1.2
General selection 4.5.8.1.2.1

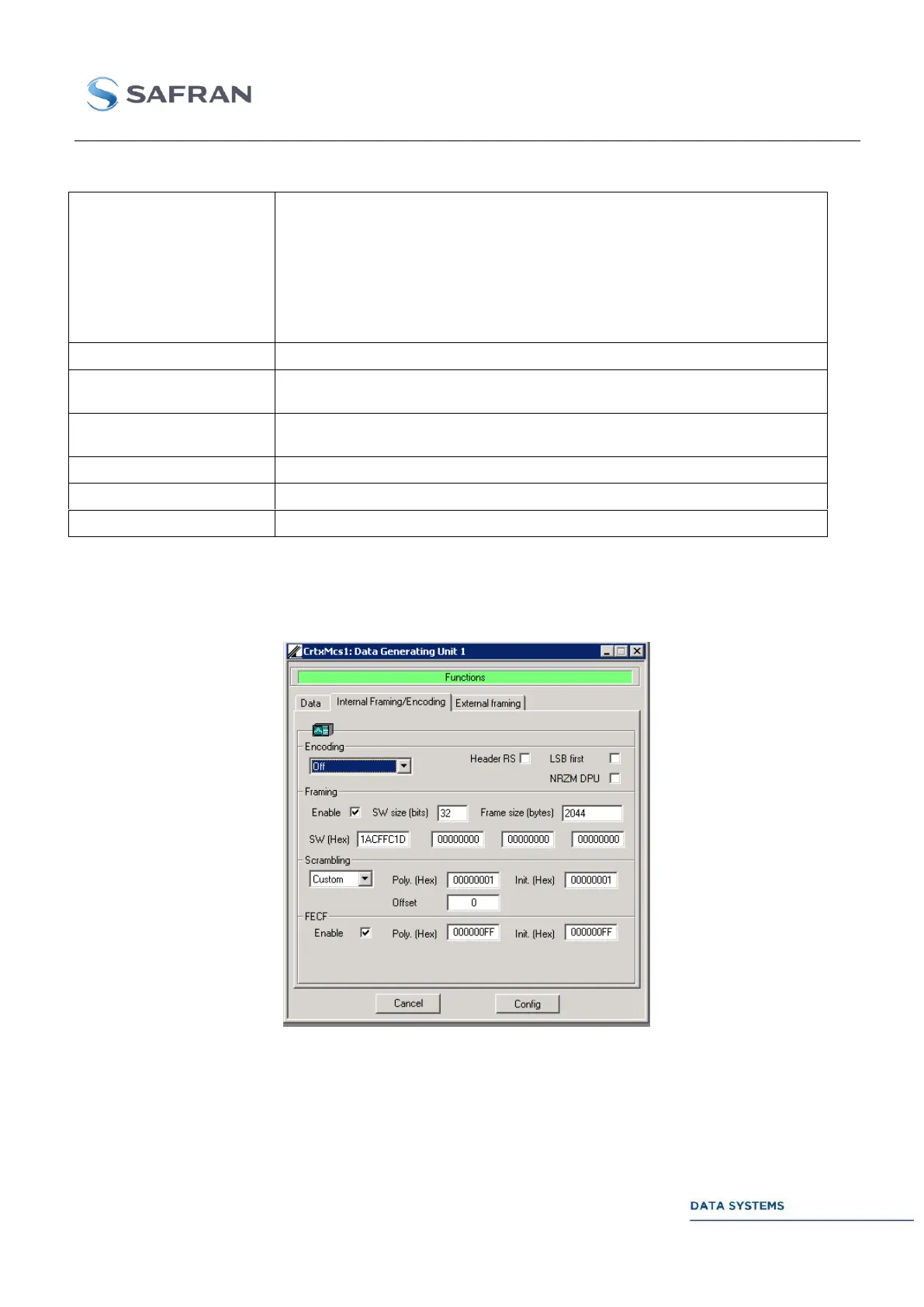

Figure 148: Internal Framing Window
