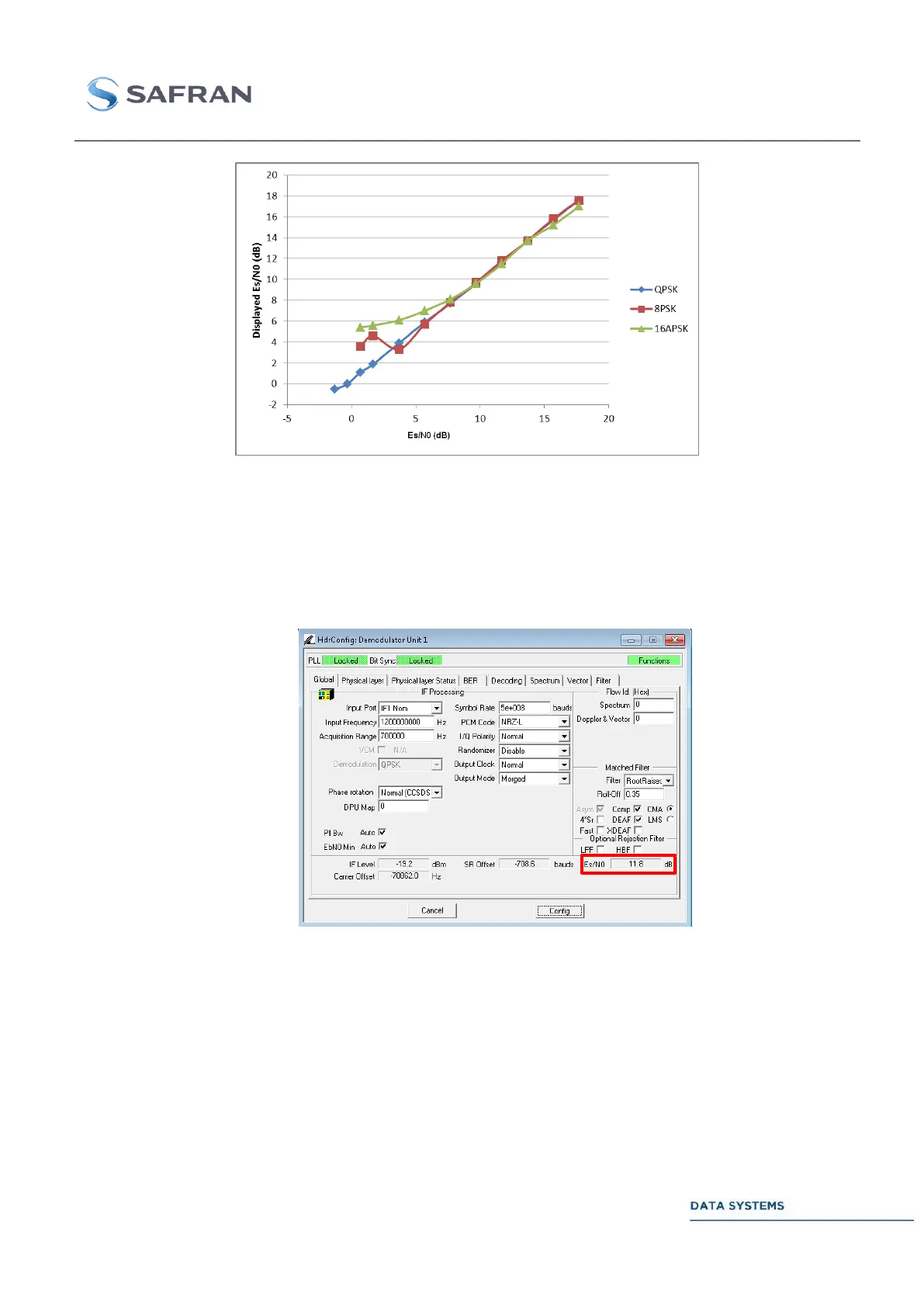

Figure 35: Estimator behavior VS Es/N0 and modulations
This estimate is available in the HDR through the following means:
A. In the TCP/IP interface (See STI100013_hdr document), in Demodulator Unit Table (base
component 0x3010, offset 43).
B. In the GUI, in the main demodulator pane:
Figure 36: Standard Es/N0 estimate in the GUI
