“Transport Layer” Windows 4.5.5.2
This window is only available with RS DVB and LDPC decoding. It gives the status of the Transport
layer.

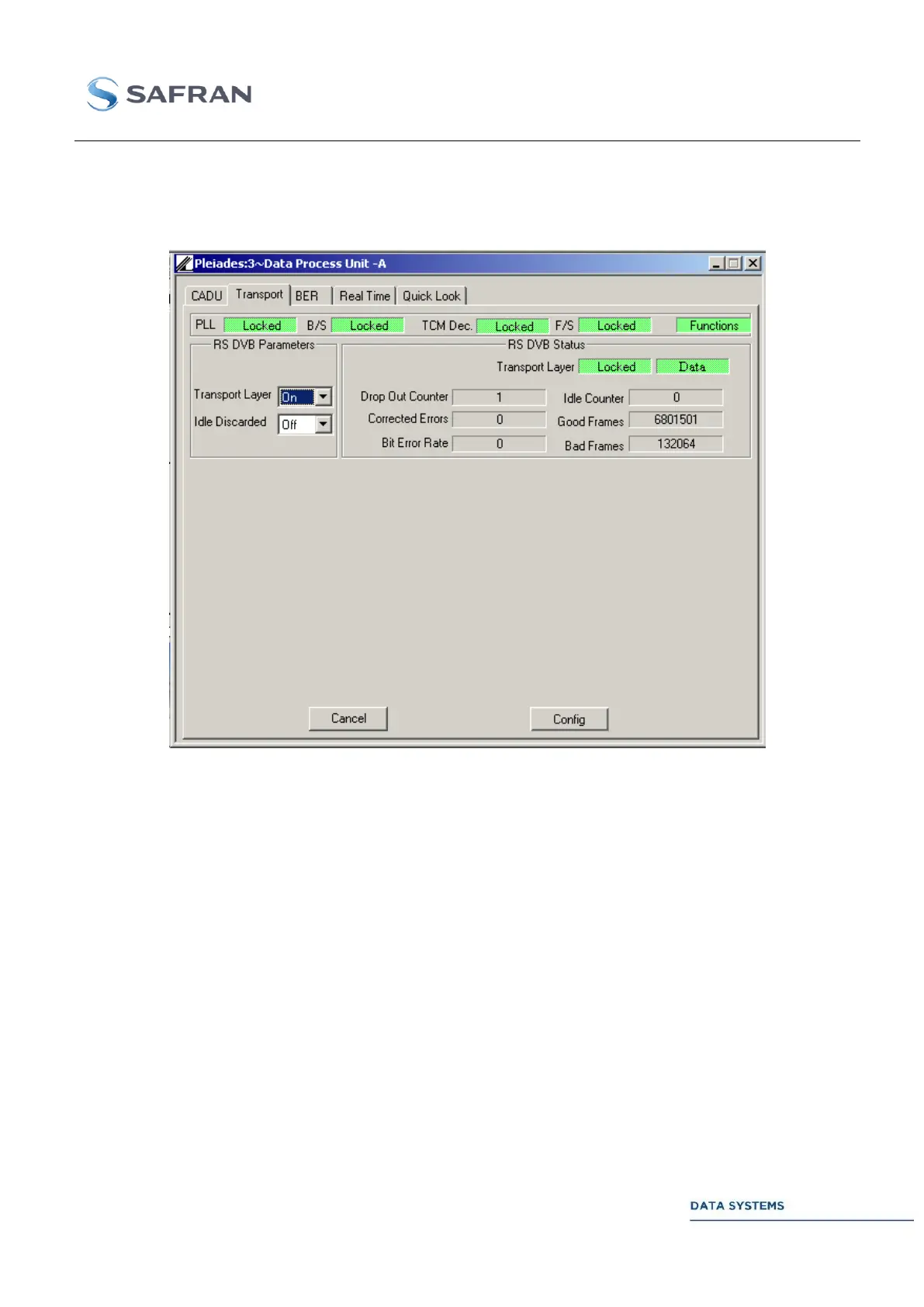

Figure 133: DPU: Transport Layer Window (R-S DVB Mode)
Control (Transport Layer Window) 4.5.5.2.1
Unless otherwise specified, parameters in this window are described in DPU.
TRANSPORT LAYER
Set the Transport Layer ON or OFF
IDLE DISCARDED
Discard (ON ) or transmit the idle frames to the CADU frame synchronizer
(OFF)
