 Vector analysis:
 I & Q values and associated signal-to-noise ratio (Eb/No) are displayed for each
quadrant.
 Signal analysis:
 IF level gives the level of the input signal.
 Nb Vector gives the number of displayed bursts of vector values.
 Ampli. Err. And Phase Err. give respectively the RMS errors on the Amplitude and phase
measurements.
“Filter” Window
4.5.4.8
 Time Display Mode:

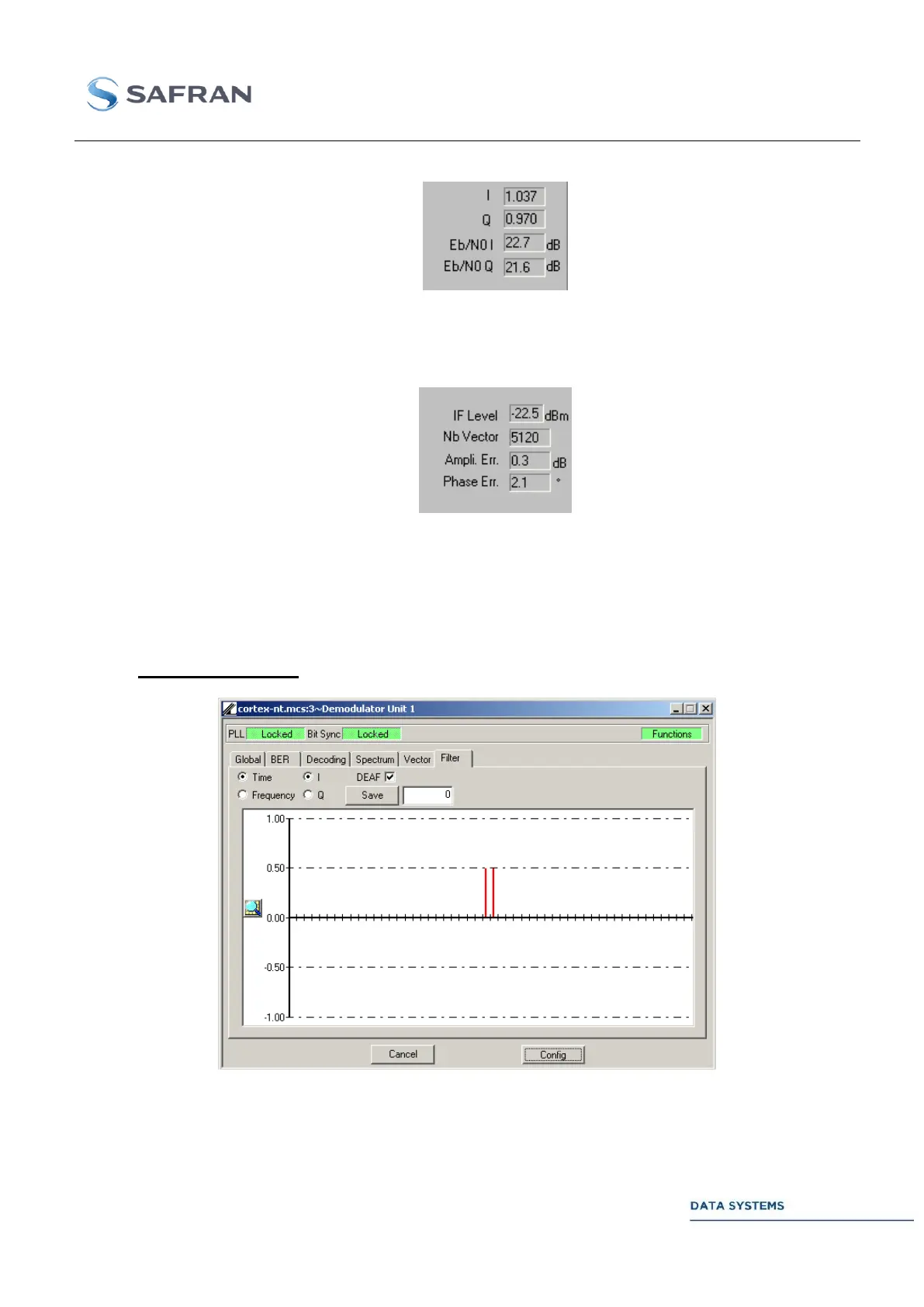

Figure 130: Filter: Time Display Selection
