“Decoding” Window 4.5.4.5
For BPSK, QPSK, OQPSK, UQPSK modulations, ½ and ¼ Viterbi decoder are available (if licence
purchased):
½-based, punctured Viterbi are available too:
 BPSK Modulation:

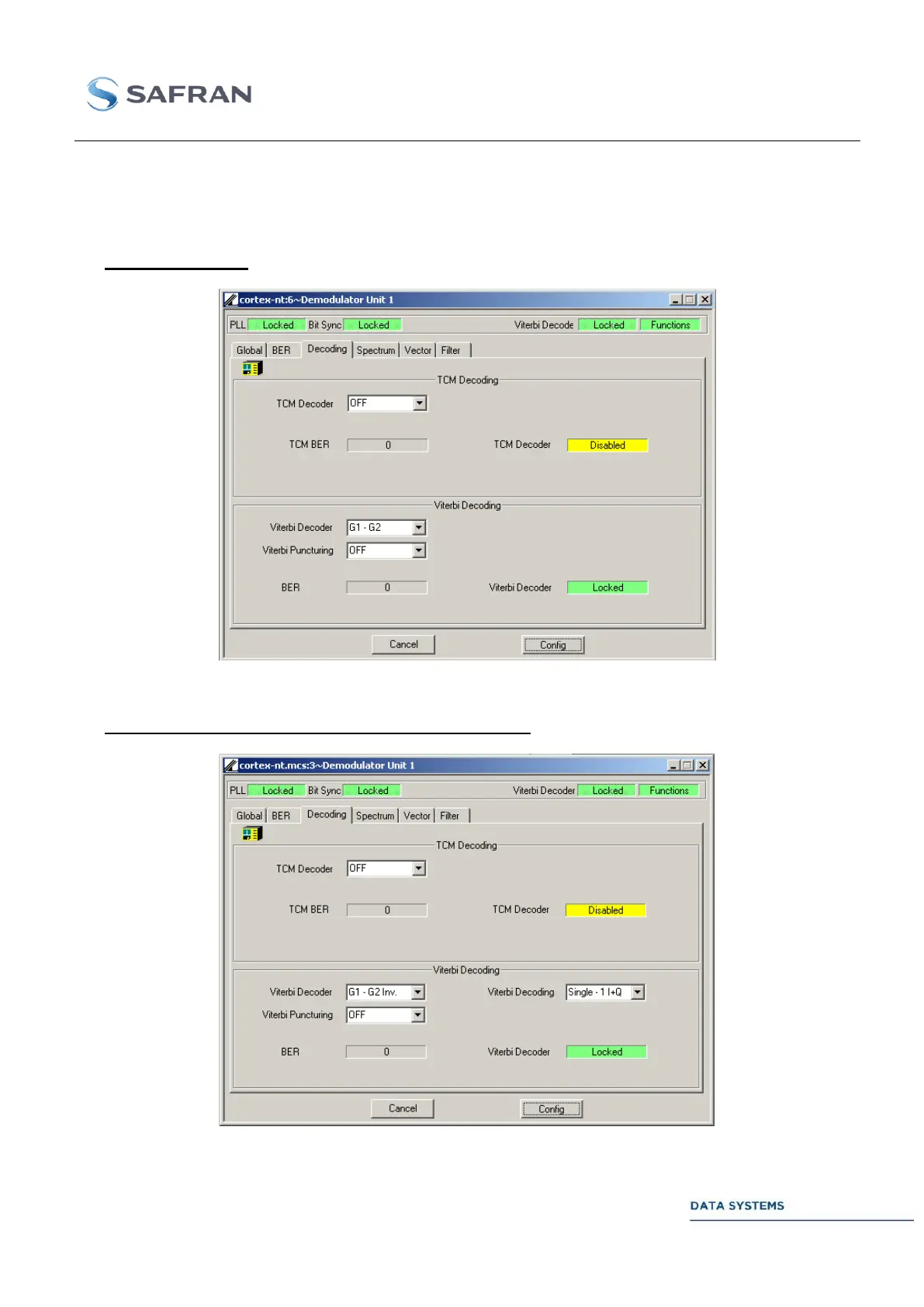

Figure 118: Demodulator: Decoding Window for BPSK Modulation
 QPSK or OQPSK (SQPSK) Modulation: Viterbi single
Figure 119: Demodulator: Decoding Window for QPSK & OQPSK Modulation (Viterbi Single)
