Status & Warnings 4.5.8.1.4
The upper banner indicates the Warning status: OK (green display) or ERROR (red display).
When pointing at the banner, more information about the Warning is displayed.

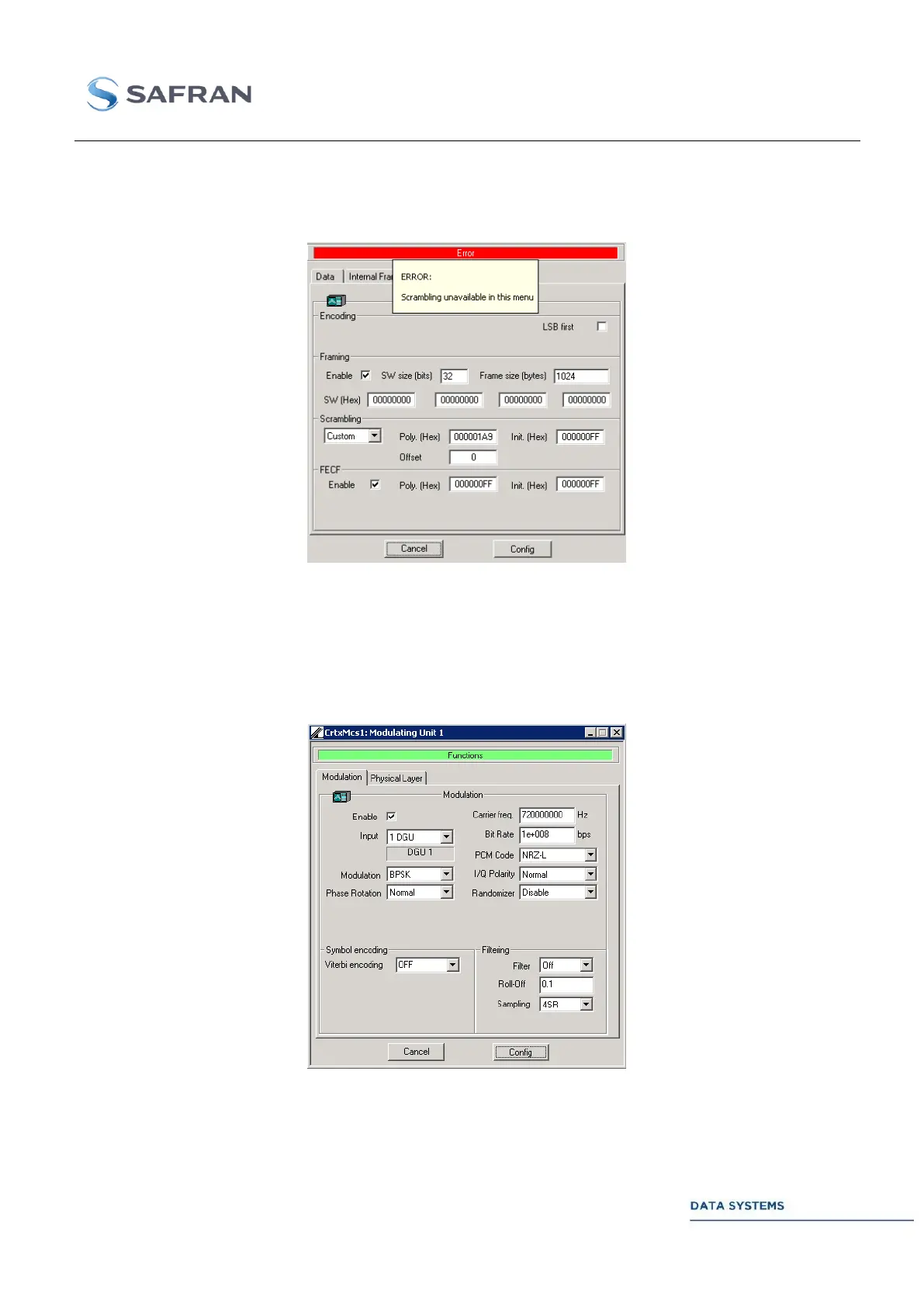

Figure 150: Pointing at an error
“Modulation Unit” Windows 4.5.8.2
“Modulation” Window 4.5.8.2.1
BPSK/QPSK/GMSK 4.5.8.2.1.1
Figure 151: BPSK/QPSK/GMSK Configuration
