HIGH DATA RATE RECEIVER
HDR-4G+ USER’S MANUAL
Ref. DTU 100782
Is.Rev 3.5
Date: June 1, 2021
© Safran Data Systems – IMP000074 e14r1
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
The help windows recall inside a single table the capabilities of each basic hardware menu available for
the demodulator, the test modulator and the optional extension board.
The tables indicate also which basic menu(s) is or are authorized for the current loaded configuration:
green or yellow columns (green: full compliance between the menu and the loaded configuration,
yellow: full compliance only for the demodulation channel #1). For the other non-authorized menus, a
red stamp is applied on the function(s) or performance(s) which do not match what is required by the
loaded configuration.
Monitoring 4.5.3.4.2

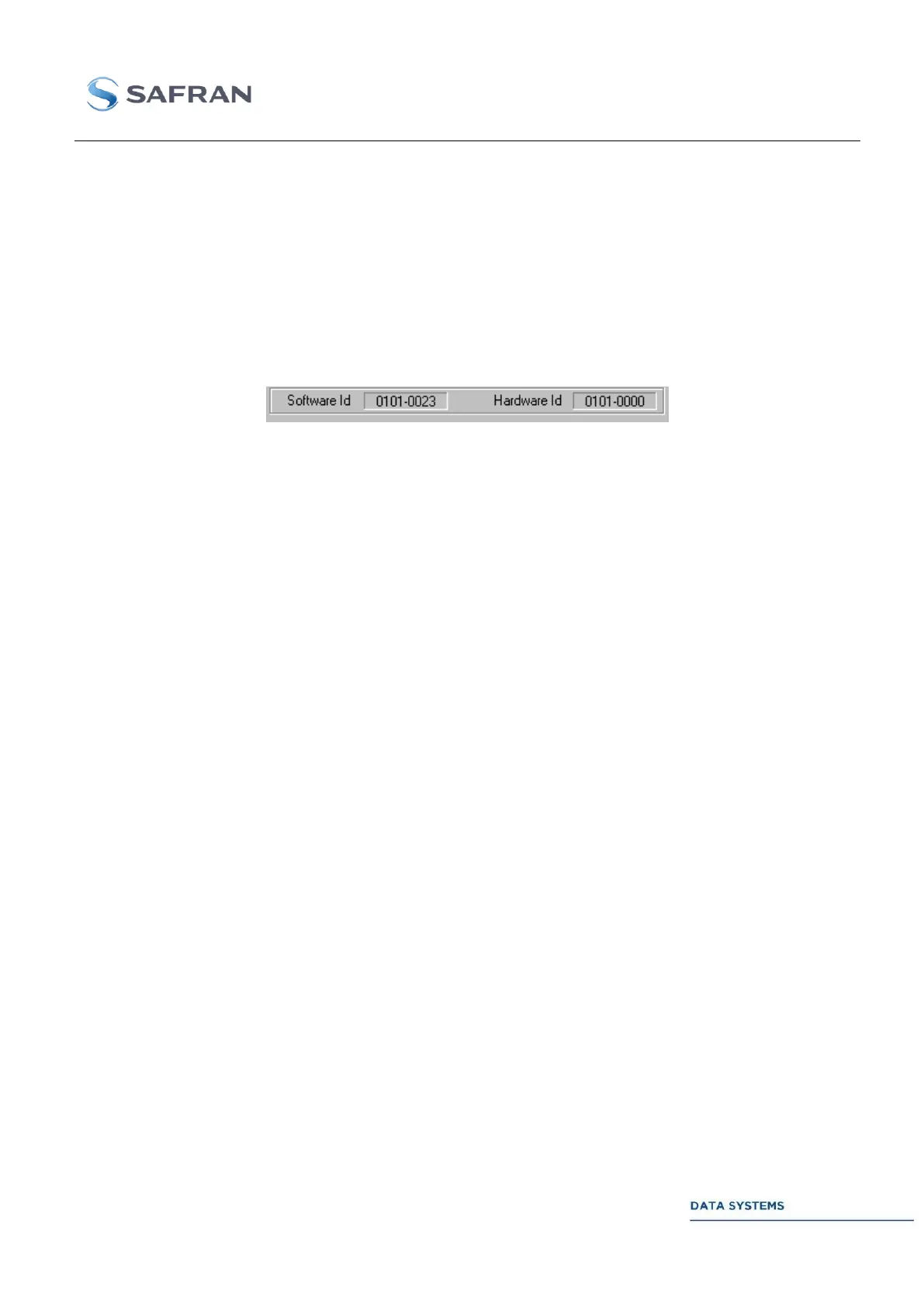

Demodulator board: software ID. From left to right:
DSP software version: Edition (2 digits) + Revision (2 digits).
DSP software: build number (4 digits).
Demodulator board: Hardware ID.
