This estimator can be accessed by the following means:
 In the TCP/IP interface (See STI100013_hdr document), in Demodulator Unit Extended Table
(base component 0x30A0, offset 112).
 In the GUI, in the main Physical Layer pane of the demodulator window:

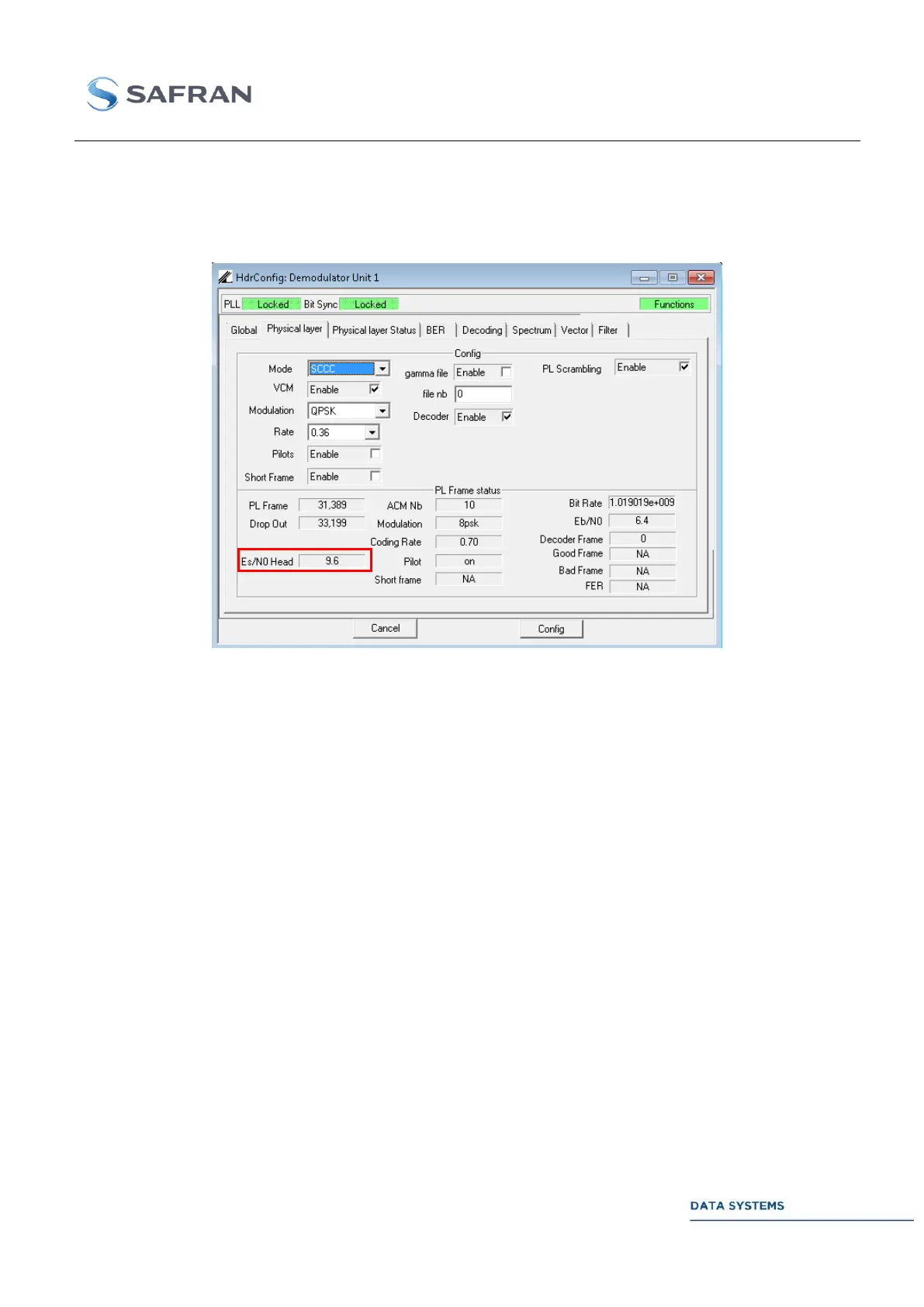

Figure 39: data-aided estimator in the GUI, Physical Layer pane of the demodulator
