HIGH DATA RATE RECEIVER
HDR-4G+ USER’S MANUAL
Ref. DTU 100782
Is.Rev 3.5
Date: June 1, 2021
© Safran Data Systems – IMP000074 e14r1
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
Page 307
Data Recording Unit Windows 4.5.7
“Global Disk and Memory Management” Window 4.5.7.1
In the upper toolbar, click on to open the Disk Partitioning & Memory Allocation window:

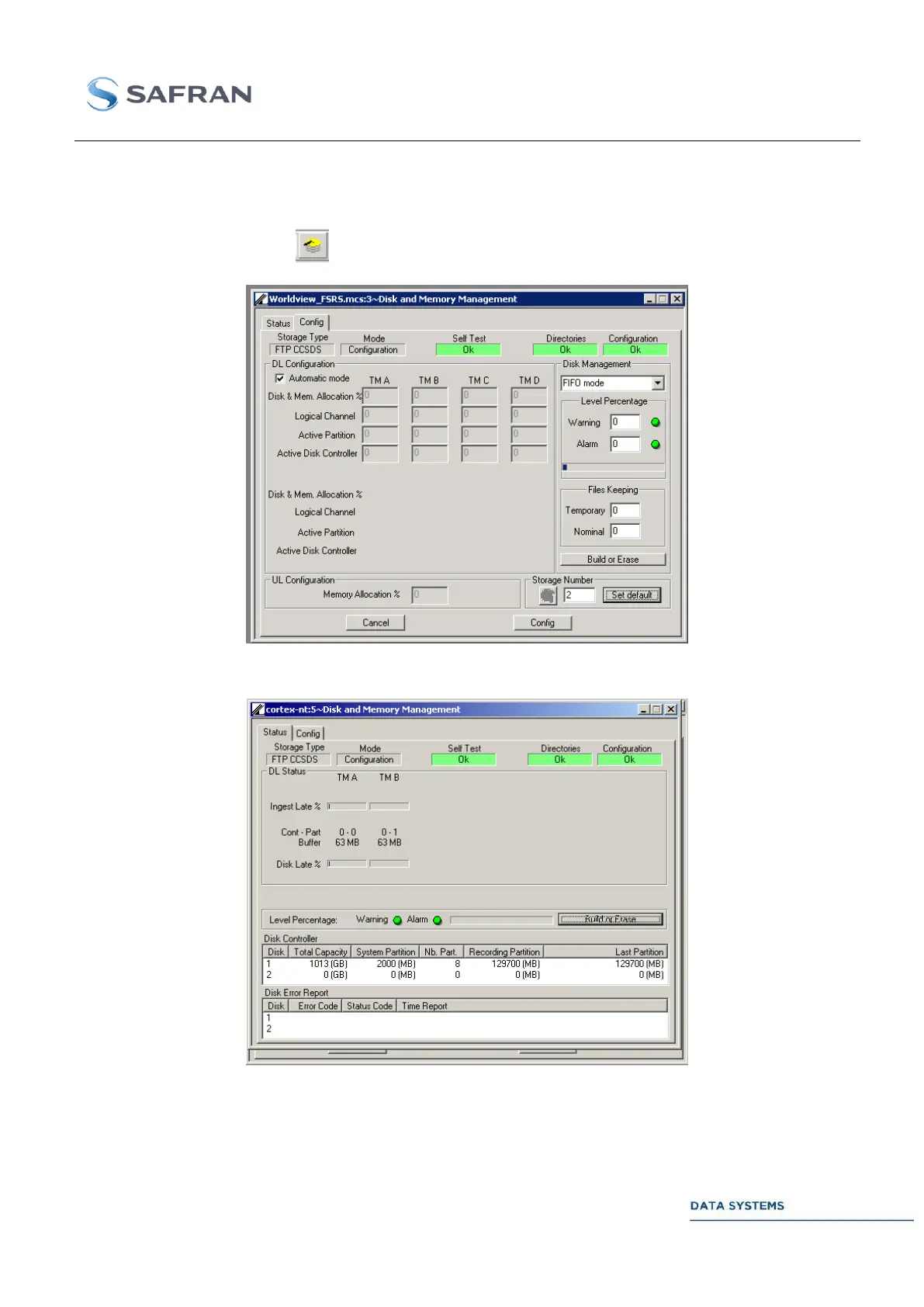

Figure 139: Global Disk & Memory Management Window (Configuration)
Figure 140: Global Disk & Memory Management Window (Status)
