“Real Time Frame” Window 4.5.5.4

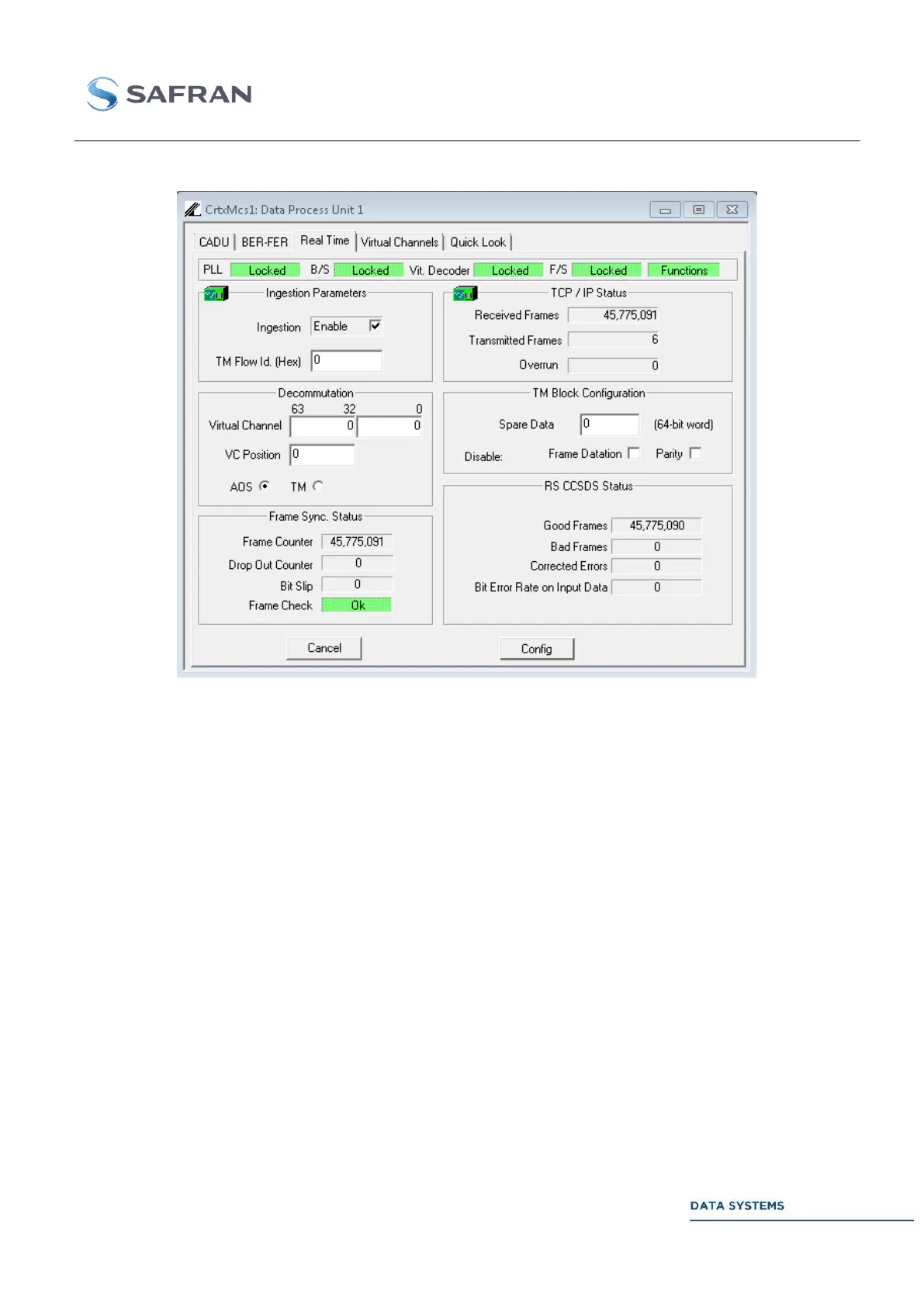

Figure 135: Data Processing Unit: Real Time Frame Window
Control 4.5.5.4.1
Parameters in this window are described in DPU.
 Ingestion parameters:
FRAME SYNC.
Enable or disable the frame synchronizer
TM FLOW ID.
Identification of the telemetry flow. This value is reported in all telemetry
messages over the Telemetry port (TM). Enter any hexadecimal value from 0 to
FFFFFFFF.
