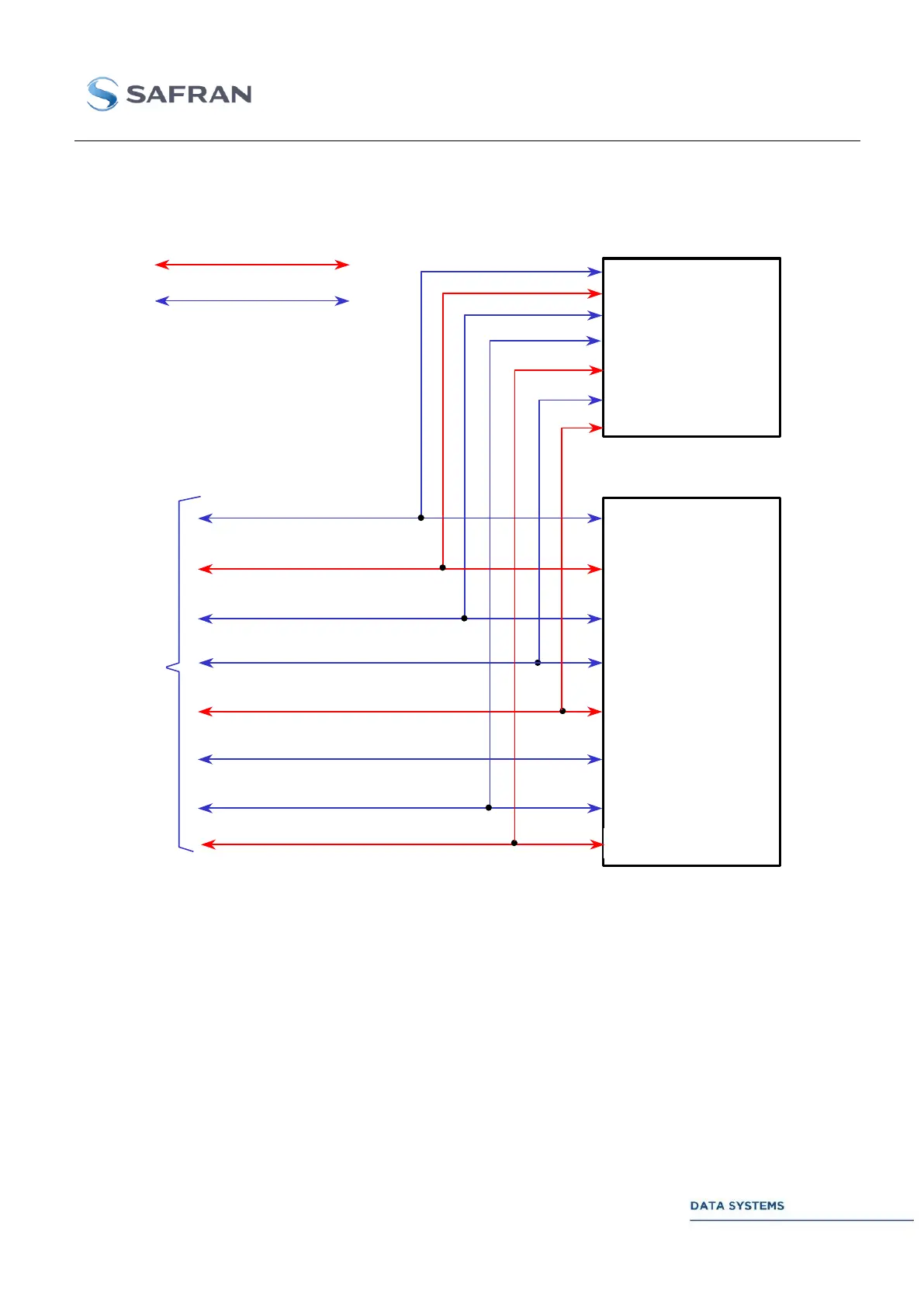

Next figure shows data flows between CORTEX HDR software components and between the CORTEX
HDR and the outside world:
M&C SOFTWARE
SIGNAL PROCESSING
SOFTWARE
Telemetry Data (Option)
Vector Analysis Data (VEC)
Logging Data (LOG)
Reset Commands (RST)
Spectrum Analysis Data (SPA)
Control Data (CTRL)
Monitoring Data (MON)
CLIENTS
REMOTE TCP-IP CLIENTS
Single-client Connections
Multi-client Connections
3050
3001
3000
3075
3002
3040
3055
DATA SERVER
RAC Commands (RAC)
3003
Figure 7: CORTEX HDR TCP-IP Interfaces
FTP Interface 1.5.3
Received data frames can be filtered and sorted, depending on the selected TM flow, the result of the
Reed-Solomon decoding, the virtual channels, or User defined. The resulted data frames are
embedded inside specified-names files and can be store in dedicated directories on an archiving
system.
In order to recover the constructed data files through the network by external Clients, the CORTEX
HDR is fitted with a powerful FTP server. External Clients can connect this server at the standard
dedicated FTP port number.
