Safran CORTEX Series - Time Window; Figure 90: CORTEX Time Window

HIGH DATA RATE RECEIVER
HDR-4G+ USER’S MANUAL
Ref. DTU 100782
Is.Rev 3.5
Date: June 1, 2021
© Safran Data Systems – IMP000074 e14r1
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
Page 238
“Time” Window 4.5.3.2
From the opposite window, the User
can program time offsets to cope with
time-tagging requirements with local
time or UTC time or GPS time,
etc....or to have the day counter not
reset at the beginning of each year.
Leap years should be declared in this
window to avoid potential loss of lock
on the internal Time Code Reader at
the end of the year.
Expected time code must be entered
for proper synchronization of the
Time Code Reader.
Parameters, status and alarms in this
window are described in GLOB.

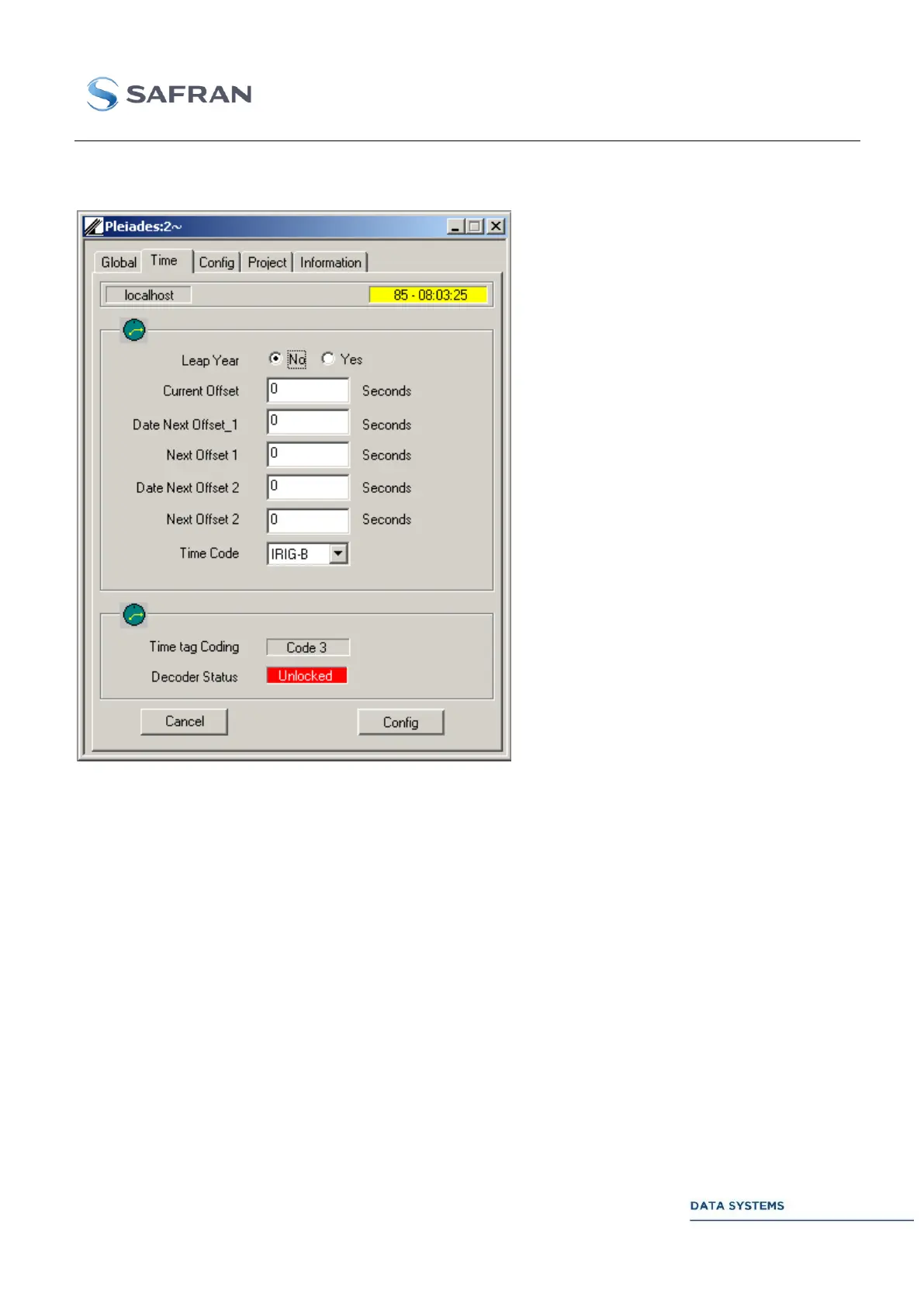

Figure 90: CORTEX « Time » Window
