“Project” Window 4.5.3.5
From the window opposite, the User
can monitor & control parameters,
status and alarms that have been
implemented from Customer-
specific requirements. Should be all
zeros for the standard CORTEX HDR
product.
Unless otherwise specified,
parameters, status and alarms in this
window are described in PROJ.

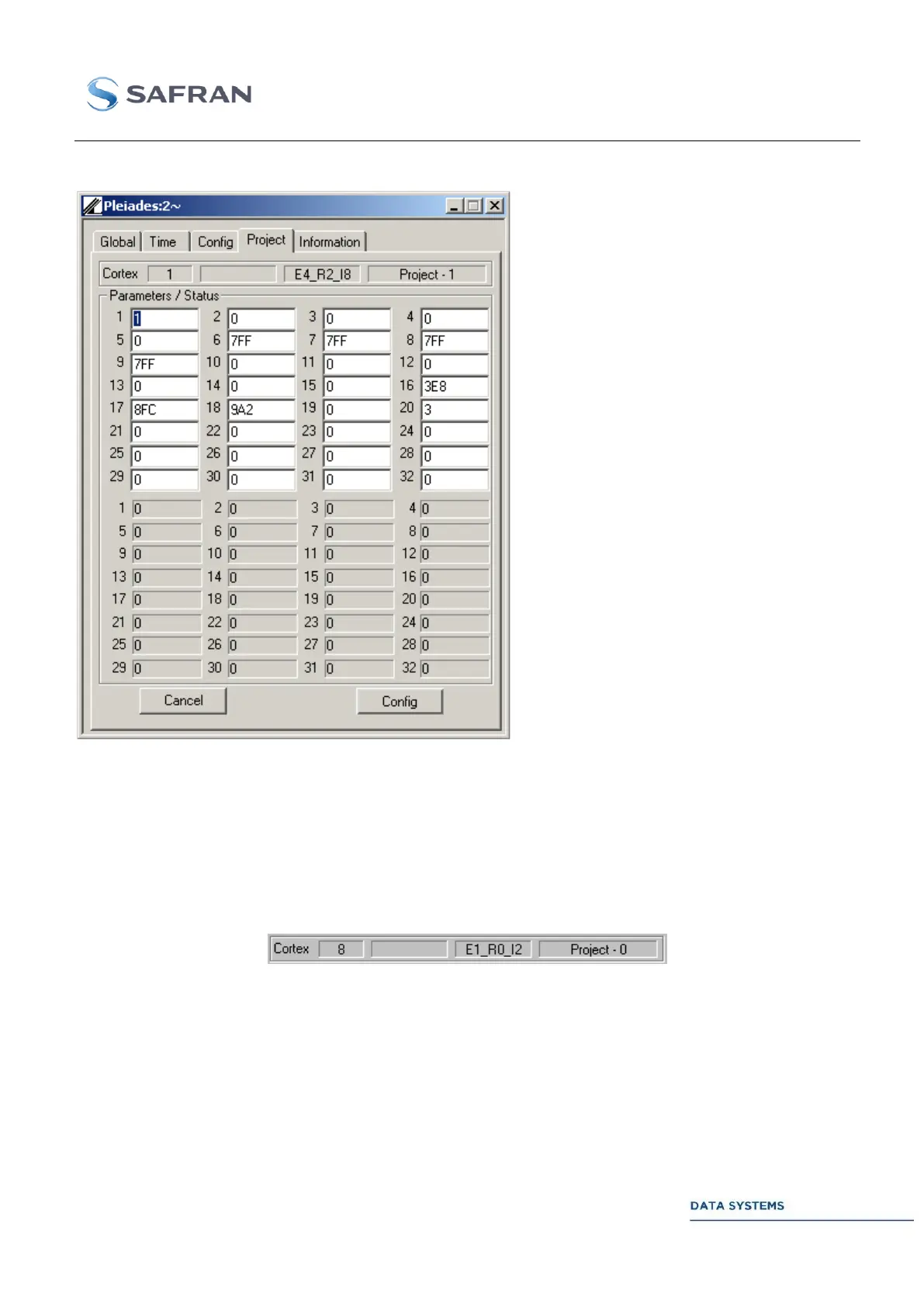

Figure 95: CORTEX HDR: Project Window
Control 4.5.3.5.1
PARAMETER 1 to 32
32 project-specific parameters (project-specific parameters are described in
Annex 5).
Monitoring 4.5.3.5.2
From left to right:
 CORTEX HDR number (GLOB).
 Software and Ethernet ICD version ID (SWID).
 Project ID. 0 for generic CORTEX HDR. Other values reserved for custom design (see Annex
5).
STATUS 1 to 32
32 project-specific status & alarms. (project-specific status and
alarms are described in Annex 5).
