Punctured Viterbi 3.3.3.4
Punctured Viterbi is supported for most puncturing rates:
2
/
3
3
/
4
4
/
5
5
/
6
6
/
7
7
/
8
Puncturing codes (Code 0 and Code 1) and swap sequence must be programmed in the registry (see
section 0).
FIFO 1
FIFO 2
I1
I2
NULL
Code 1
Code 0
1
0
0
1
Swap sequence
0
0
1
Vector
Demodulator
Viterbi
Decoder
De-puncturing & swapping
Example: ¾ Punctured Dual Viterbi:
C0(1) C1(2) C0(4) C1(5)
C1(1) C0(3) C1(4) C0(6)
De-puncture
3/4
C0(1) NULL C0(3) C0(4) NULL C0(6)
C1(1) C1(2) NULL C1(4) C1(5) NULL
Registry keys : VitPunctCode0 : 1 1 0 1 1 0
VitPunctCode1 : 1 0 1 1 0 1
VitPunctSwap : 0 1 1 0 1 1
G1 Viterbi input = C0
G2 Viterbi input = C1
Viterbi decoder setting : “ G1-G2”
QPSK
demodulation
3/4
Punctured
3/4
Punctured
Viterbi (2,1,7)
decoder
Viterbi (2,1,7)
decoder
DNRZ
(option)

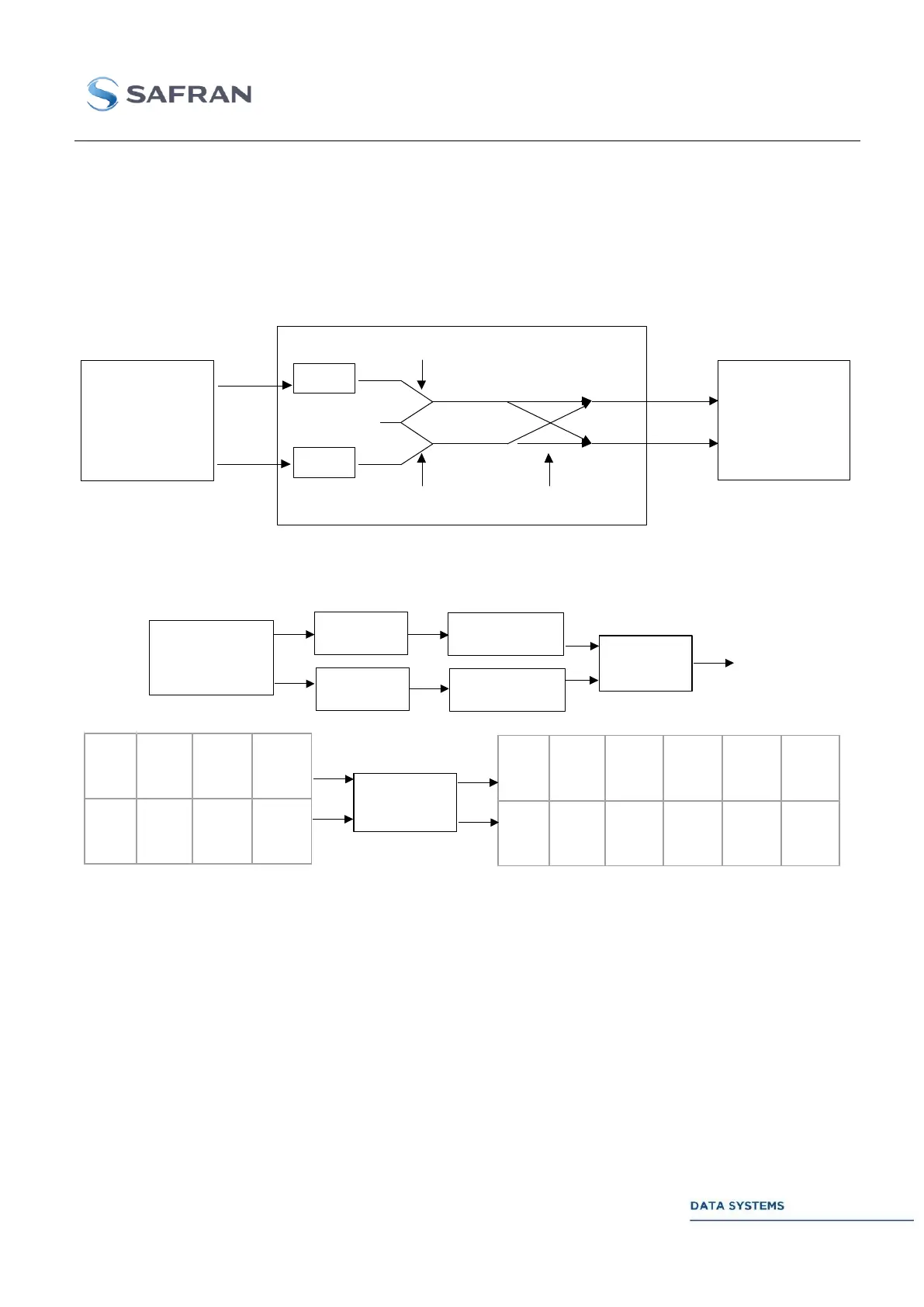

Figure 17: Viterbi De-puncturing Process.
