HIGH DATA RATE RECEIVER
HDR-4G+ USER’S MANUAL
Ref. DTU 100782
Is.Rev 3.5
Date: June 1, 2021
© Safran Data Systems – IMP000074 e14r1
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
Page 180
Main features of this low-pass filter are:
 Fully programmable solution: the gain slope defined by the amplitude difference between the
transmission at 570 MHz and 870 MHz. This gain slope can be locally or remotely programmed
between 0 to 12 dB.
 Gain compensation performance in the bandwidth better than 0.1dB (see Figure 74)
 Intrinsic phase linearity performance.
960 MHz 860 MHz 760 MHz 660 MHz 560 MHz

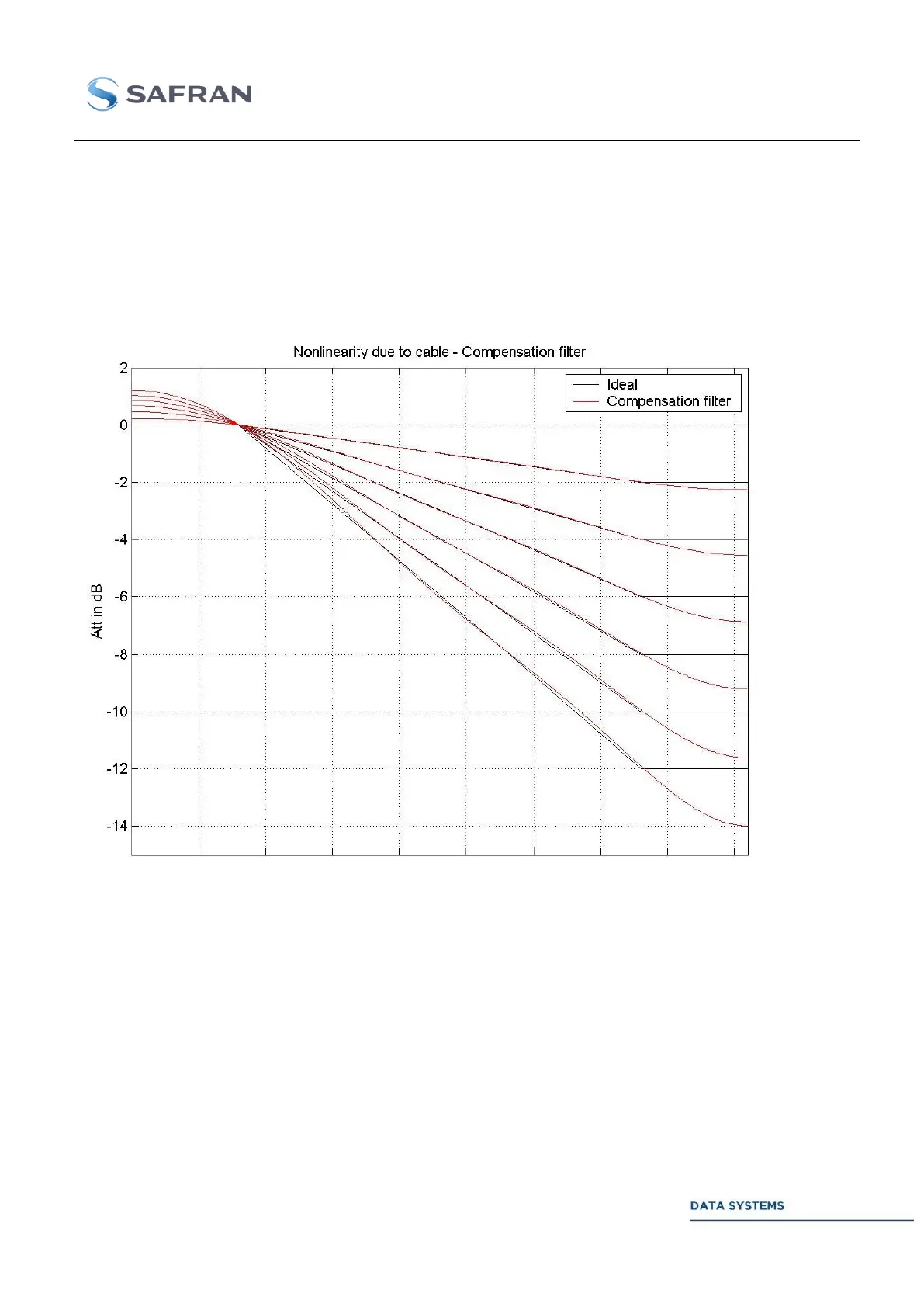

Figure 75: Example of cable compensation
