Output Data Definition and Timing 2.2.3
Timing for all output types 2.2.3.1
Remark: For data output after specific decoding process (example: TCM + RS-DVB, punctured
Viterbi), “holes” inside the output data and clock signals can be present. These “holes” are due to the
delayed check symbols and / or synchronization words. Nevertheless it has to be considered that for
each data corresponds an edge of the clock.

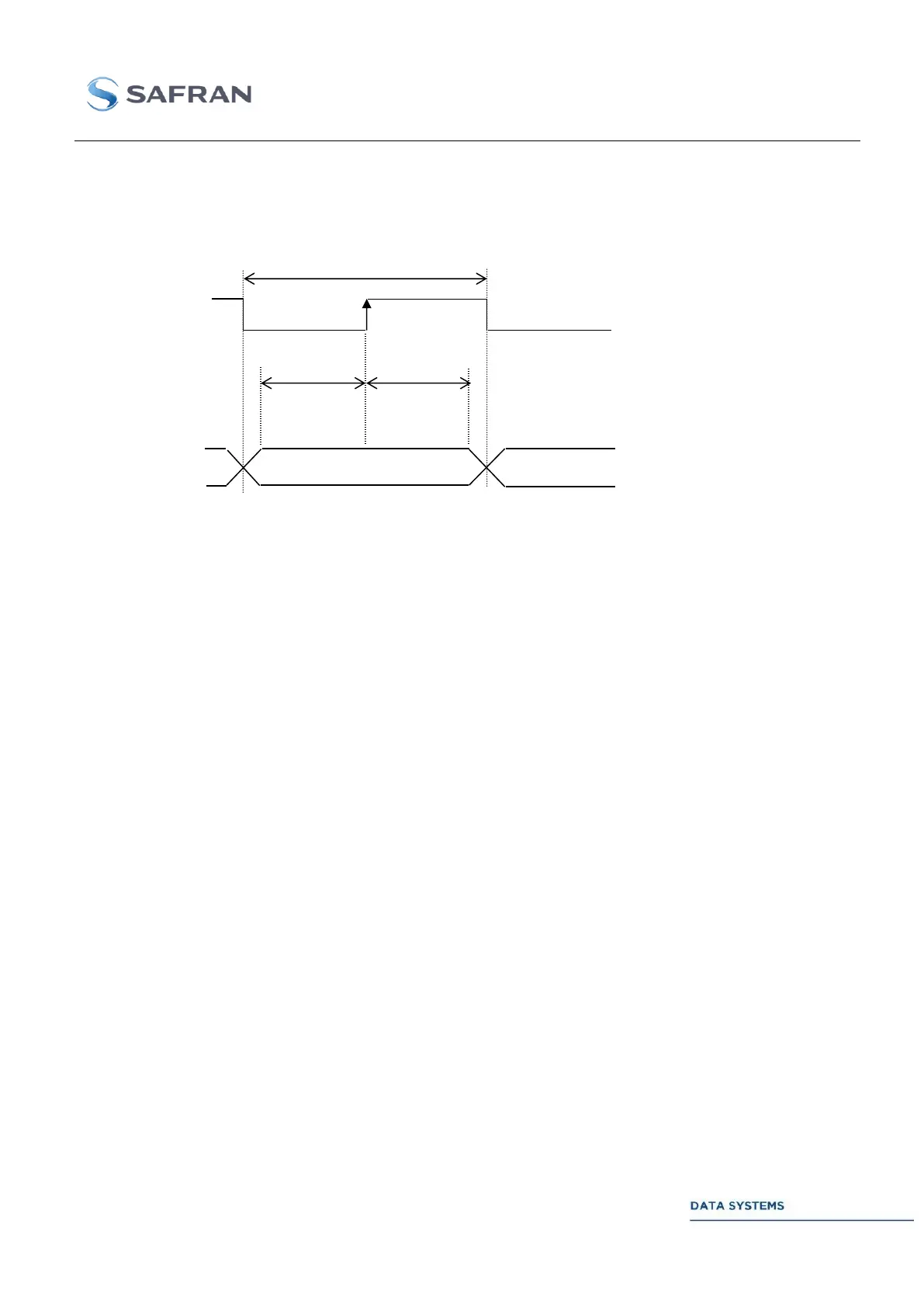

* Clock polarity: Normal Output Clock
** Except when OUT3 = CLK
CLK+ *
OUTx +/- **
1 / Bit Rate
DATA
t
s
t
h
For I/Q merged output, RS CADU output and LDPC CADU output:
t
s
= 1/2BR - 500 ps
t
h
= 1/2BR - 500 ps
For normal I and Q outputs:
t
s
= 1/BR - 500 ps
t
h
= 1/BR - 500 ps
