Interpretation of the Vector Display 5.2.4

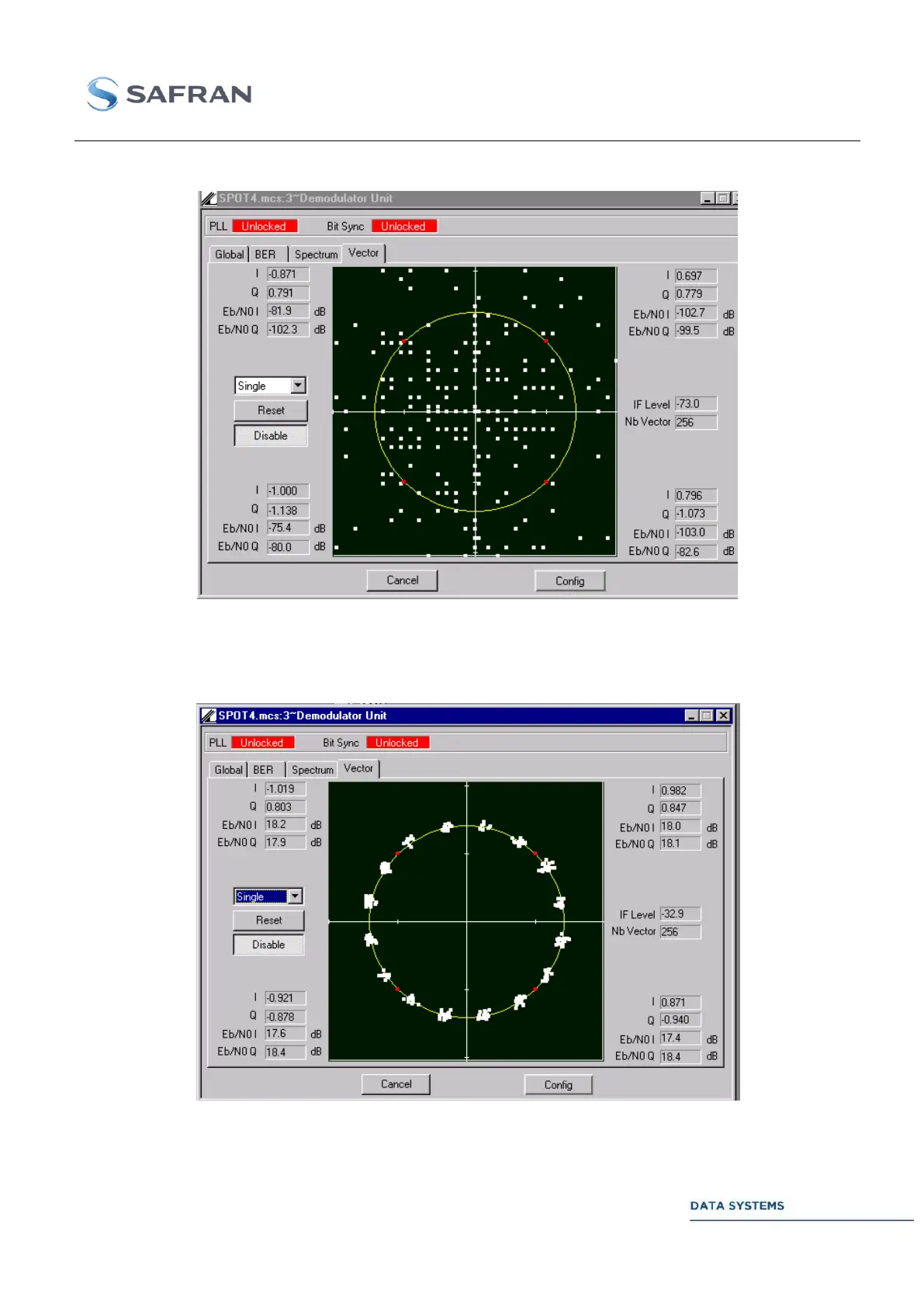

 Low IF input level (-73 dBm). No signal at Demodulator input
 I/Q display: random noise
 Incorrect IF setting (signal = QPSK 720 MHz. Demodulator setting = 721 MHz)
