 Incorrect bit rate setting (signal = QPSK 50 Mbps. Demodulator setting: 47 Mbps). Matched
filter inefficient.

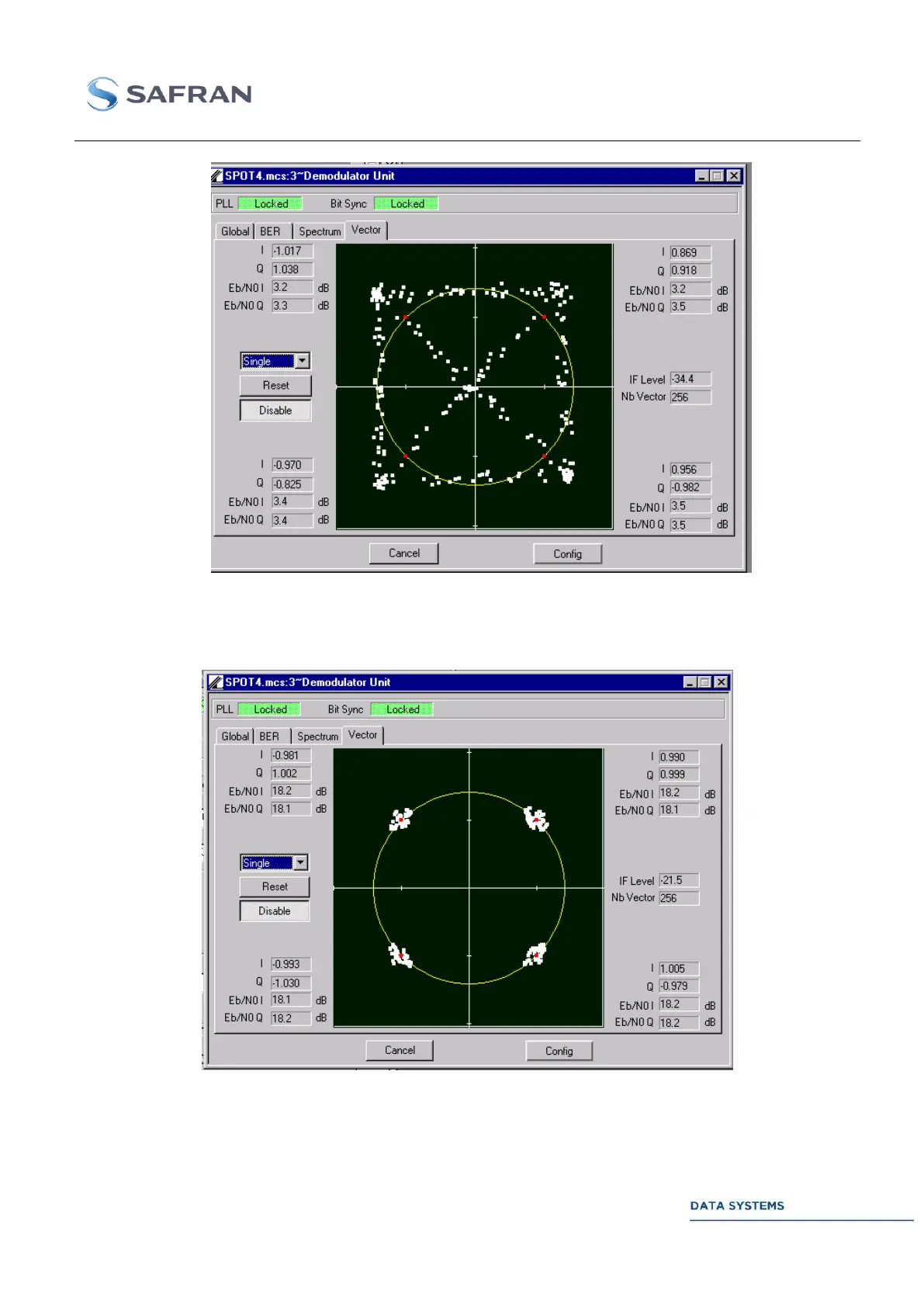

 QPSK input signal with unwanted MSK modulation appearing as phase noise on the I/Q display
