Parallel Viterbi decoders 3.3.3.3
The HDR supports the rate ½ Viterbi parallel processing as specified in the NASA SNUG (450-SNUG).
The number of decoders can be set between N = 1 and 16 on I and Q channels. Dual Viterbi decoding
as described in the previous paragraph can be seen as a particular case of the parallel processing with
N = 1.
The supported symbols sequence is given in the following figure.

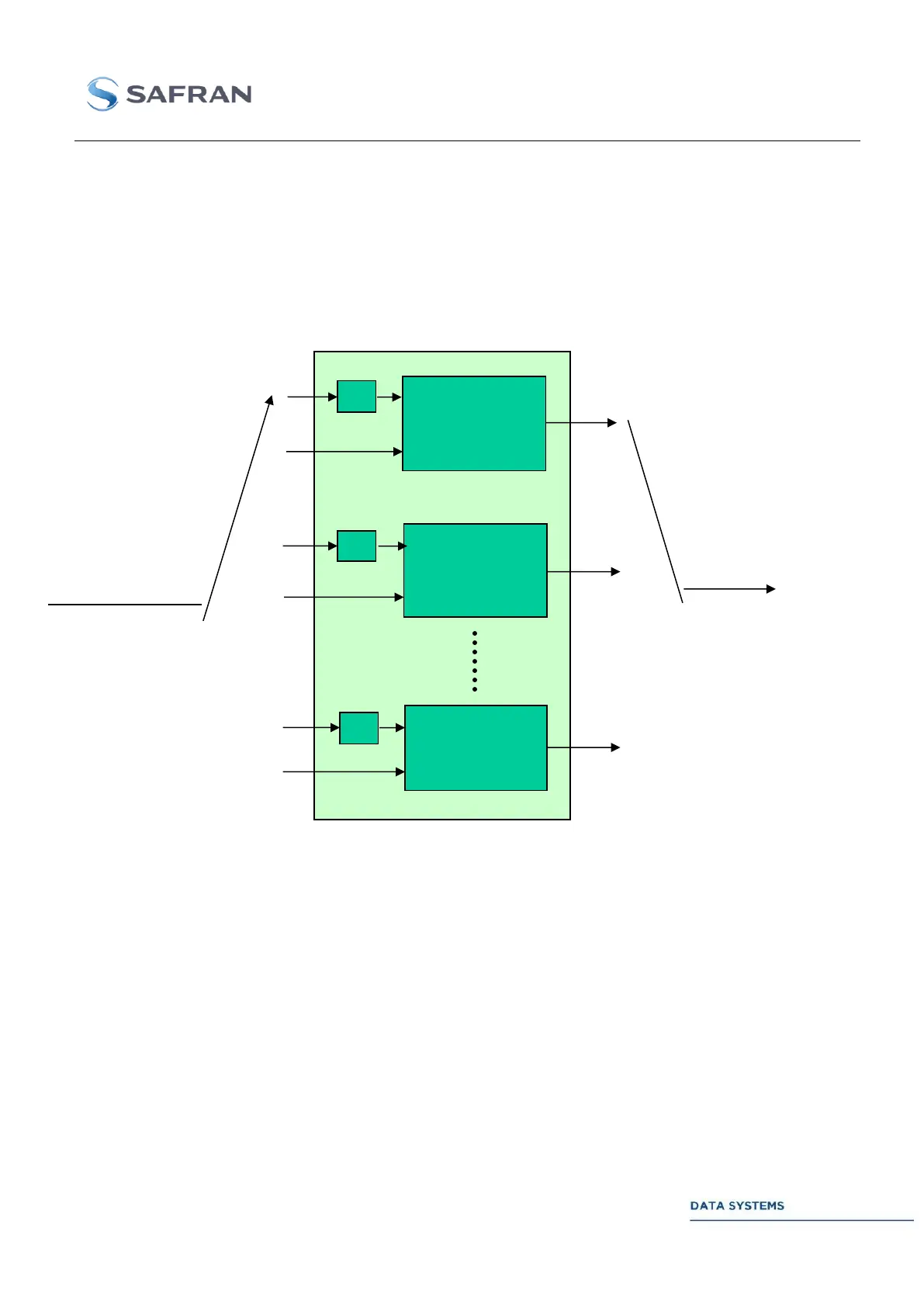

Figure 16: Parallel Viterbi Decoding Module.
…, S
N2
,...S
22
,S
12
,S
N1
,….S
21
,S
11
…,D
N
,…,D
2
,D
1
,…
Viterbi
decoder
#1
Viterbi
decoder
#2
Viterbi
decoder
#N
S
11
S
N1
S
21
D
1
D
2
D
N
G1
G2
Z
-1
S
12
G1
G2
Z
-1
Z
-1
G1
G2
S
2
2
S
N2
I or Q channel
2 x Data rate
Data rate
