HIGH DATA RATE RECEIVER
HDR-4G+ USER’S MANUAL
Ref. DTU 100782
Is.Rev 3.5
Date: June 1, 2021
© Safran Data Systems – IMP000074 e14r1
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
Page 335
“IF Unit” Windows 4.5.8.3
“IF” Window 4.5.8.3.1
General Selection 4.5.8.3.1.1

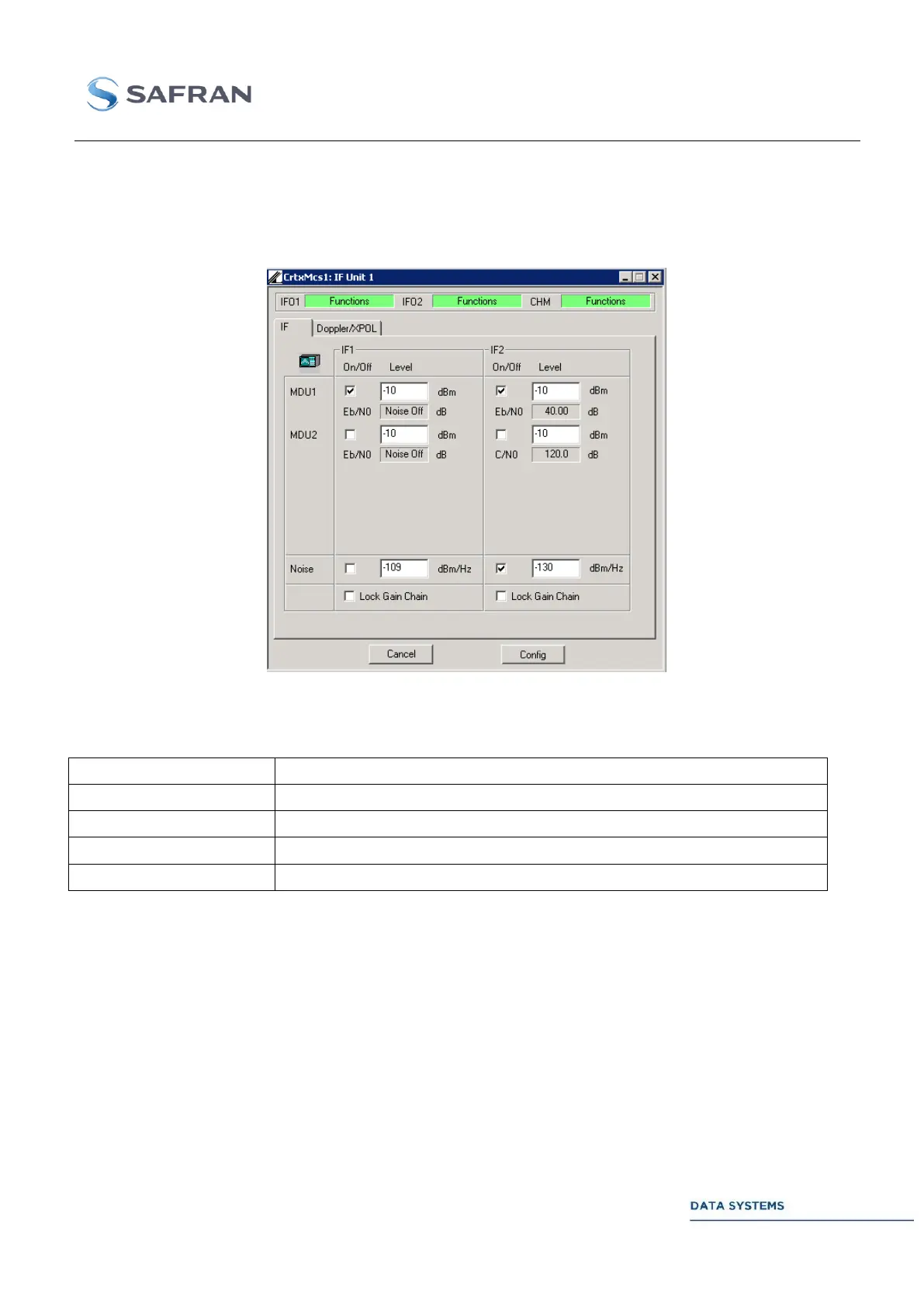

Figure 166: IF Window
Control 4.5.8.3.1.2
MDU X – IF Y – ON/OFF
Enable or disable the carrier (contribution of MDU X for IF Y)
MDU X – IF Y – LEVEL
Carrier Level in dBm
IF Y – NOISE
Enable or disable the noise generator
IF Y – NOISE LEVEL
Noise Level in dBm/Hz
IF Y – LOCK GAIN CHAIN
Setting reserved for factory puproses
