HIGH DATA RATE RECEIVER
HDR-4G+ USER’S MANUAL
Ref. DTU 100782
Is.Rev 3.5
Date: June 1, 2021
© Safran Data Systems – IMP000074 e14r1
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
Page 284

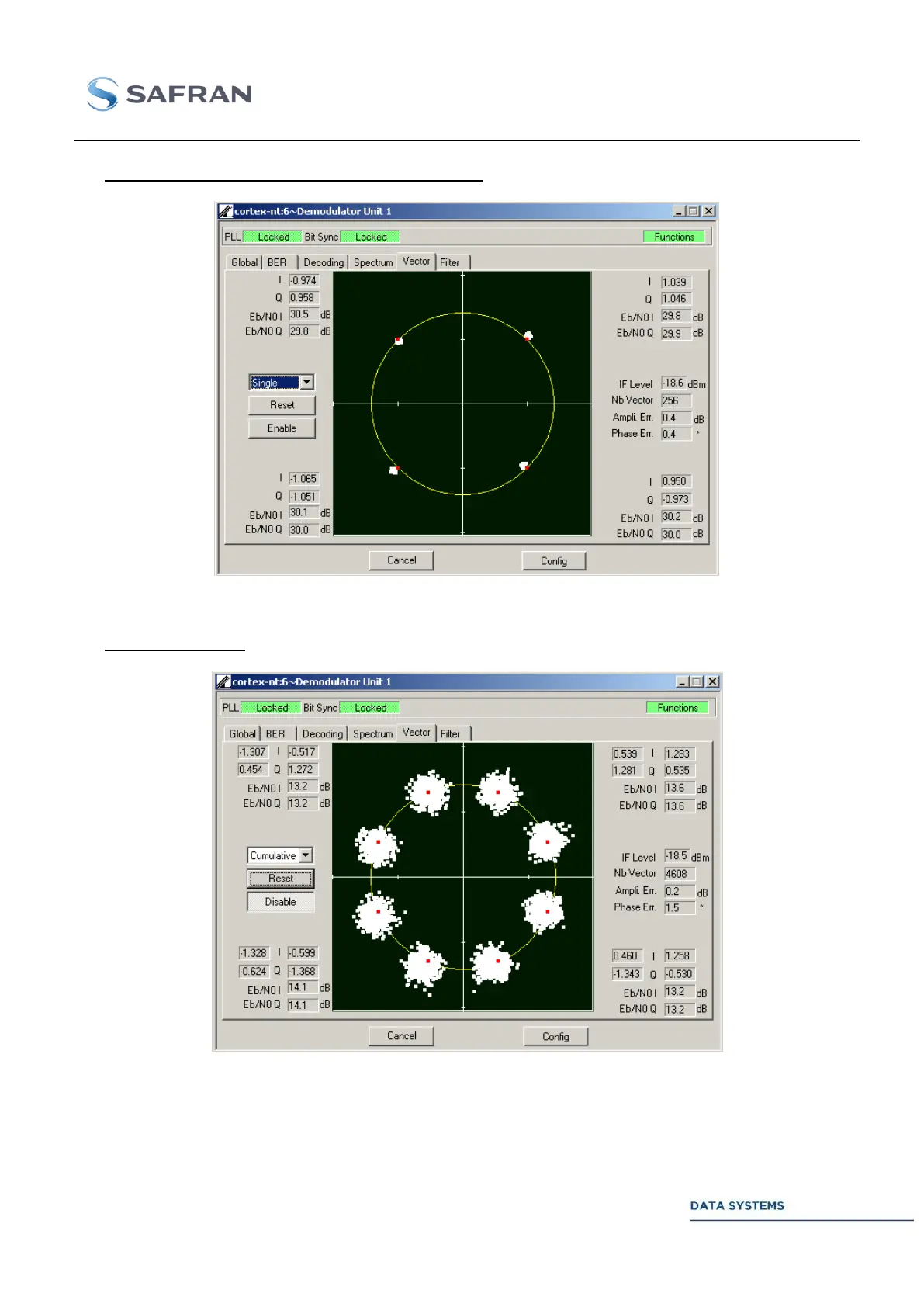

 QPSK, OQPSK (SQPSK) or UQPSK Modulation:
Figure 125: Demodulator: QPSK(OQPSK) Vector Window
 8PSK Modulation:
Figure 126: Demodulator: 8PSK Vector Window
