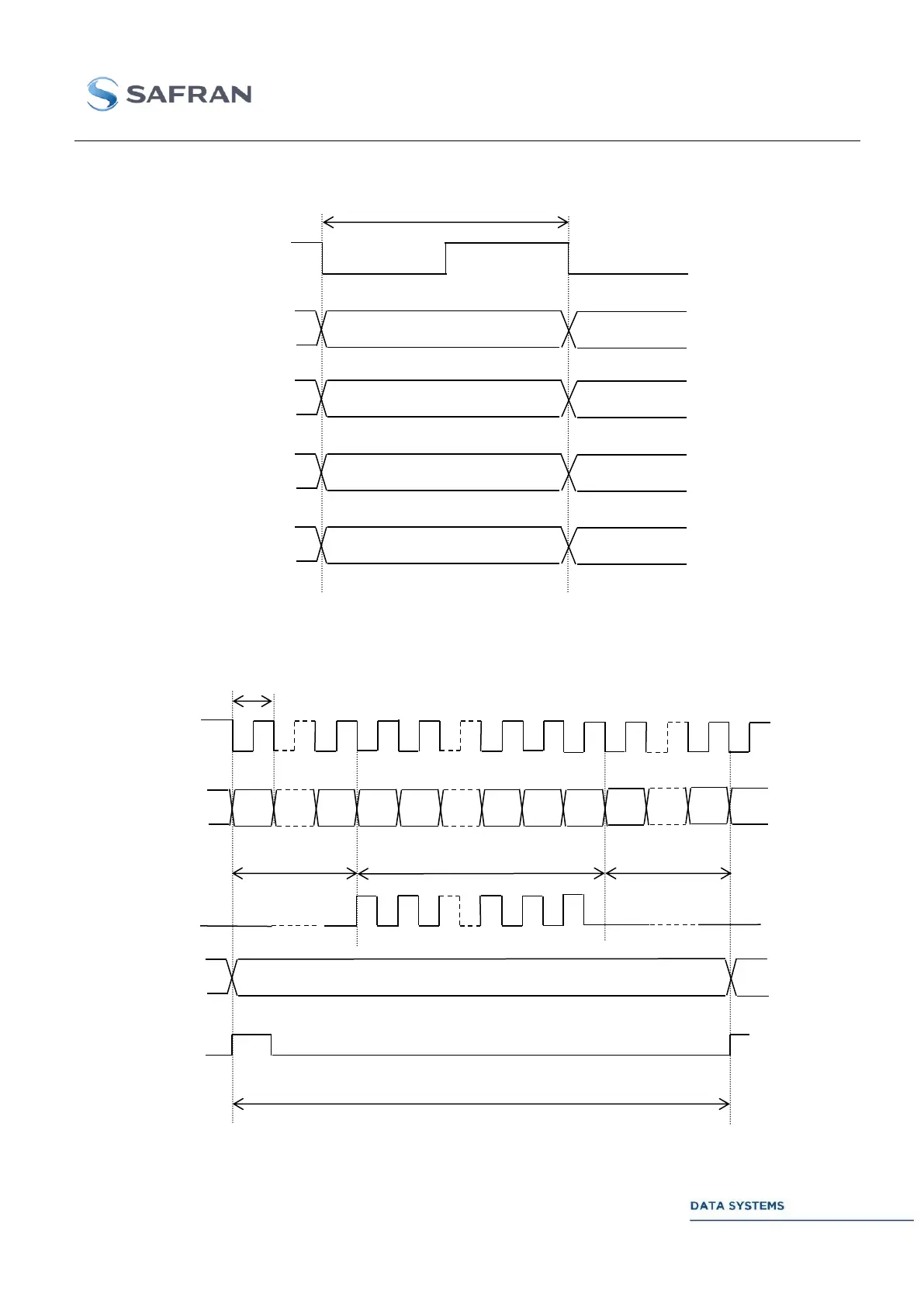

Split 4 output 2.2.3.4
CADU output formats 2.2.3.5
4 / Bit Rate
I Data n
I Data n+2
Q Data n
Q Data n+2
I Data n+1
I Data n+3
Q Data n+1
Q Data n+3
CLCK +/-
DATA I-1
DATA Q-1
DATA I-2
DATA Q-2
CLK +/-
Data
User Data
Clock
1 / Bit Rate
User Data
Frame
Synchronization
Word
Quality of the CADU
1: Good
0: Bad (errors)
Parity Data
CADU
Status
Synchro
Pulse
