Working in manual mode
3.3 Traversing axes
Turning
106 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
3.3 Traversing axes
You can traverse the axes in manual mode via the Increment or Axis keys or handwheels.
During a traverse initiated from the keyboard, the selected axis moves at the programmed
setup feedrate. During an incremental traverse, the selected axis traverses a specified
increment.
Set the default feedrate
Specify the feedrate to be used for axis traversal in the set-up, in the "Settings for Manual
Operation" window.
3.3.1 Traverse axes by a defined increment
You can traverse the axes in manual mode via the Increment and Axis keys or handwheels.

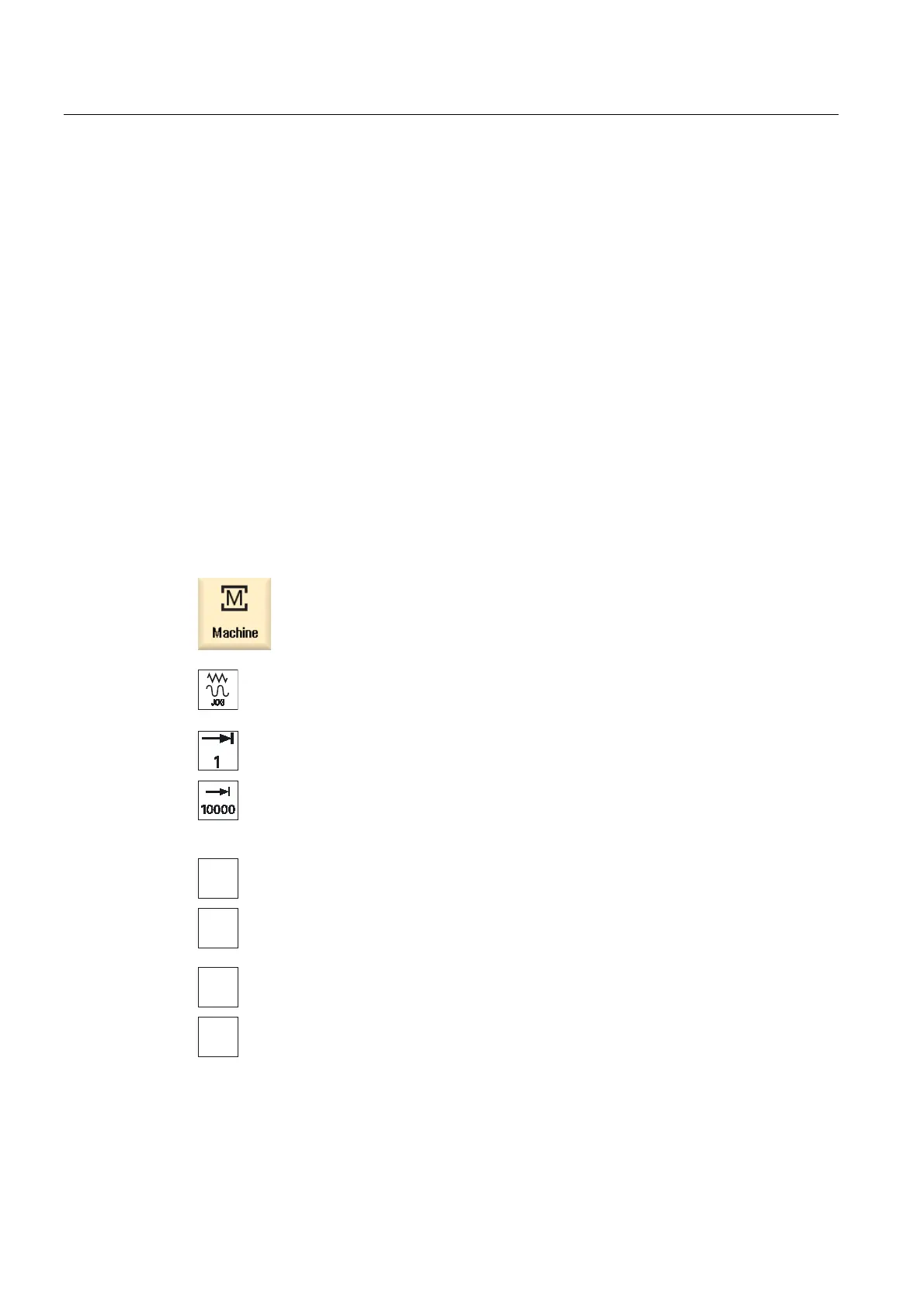

Procedure
1. Select the "Machine" operating area.
2. Press the <JOG> key.
3. Press keys 1, 10, etc. up to 10000 in order to move the axis in a defined
increment.
The numbers on the keys indicate the traverse path in micrometers or
microinches.
Example: Press the "100" button for a desired increment of 100 μm (=
0.1 mm).
;
=
4. Select the axis to be traversed.
5. Press the <+> or <-> key.
Each time you press the key the selected axis is traversed by the
defined increment.
Feedrate and rapid traverse override switches can be operative.
