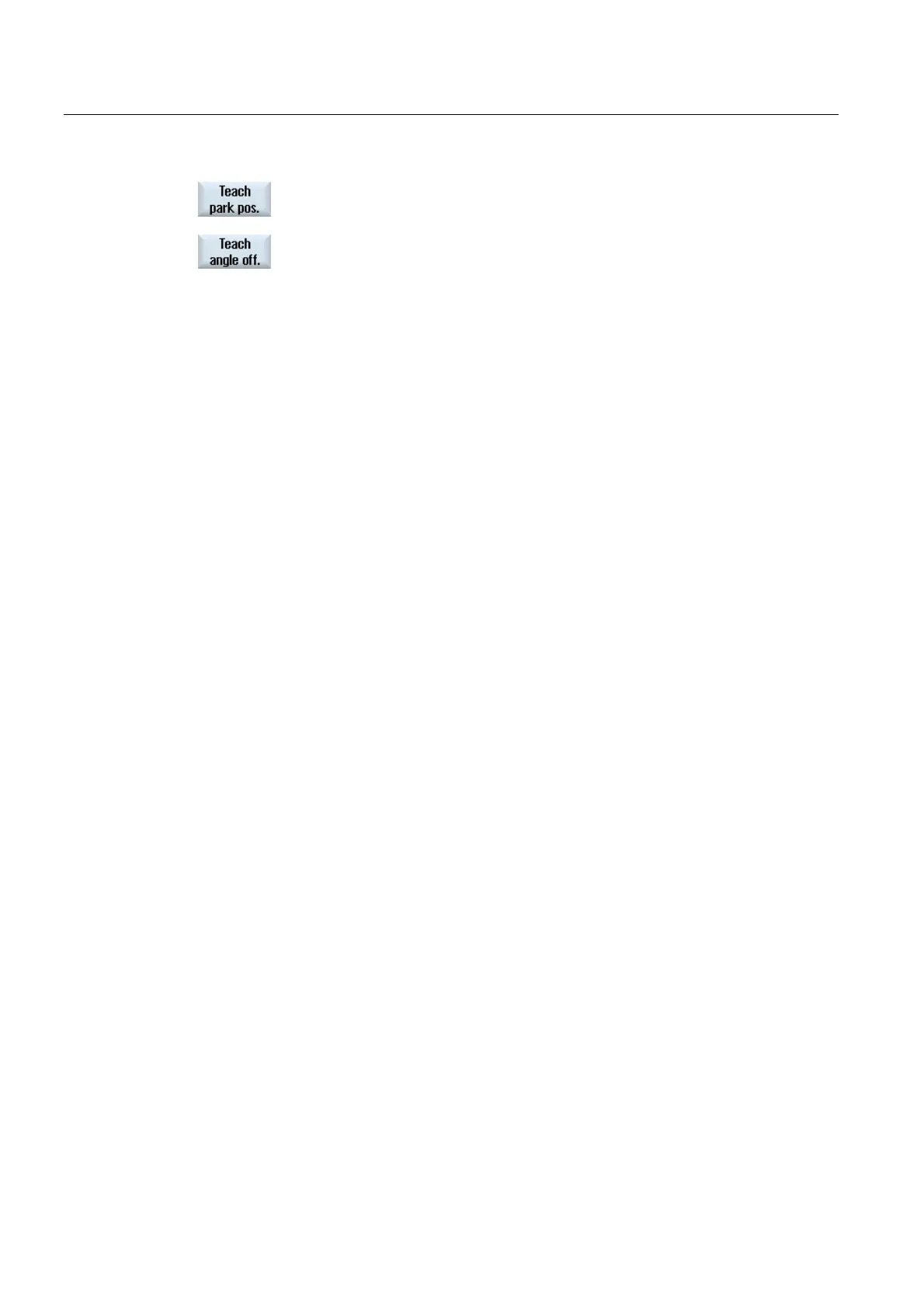

5. Press the “Teach park pos.” softkey.
The actual tool park position is saved.
6. Press the “Teach angl. offset" softkey.
The actual angular difference between the main and counter spindles
will be saved.
8.7.17.1 Programming example: Machining main spindle – Transfer workpiece – Machining
counterspindle
The programming for this operation might look like this:
Programming steps - alternative 1:
● Machining, main spindle
● Gripping
● Withdrawing
● Rear face
● Machining, counterspindle
Programming steps - alternative 2:
● Machining, main spindle
● Complete (gripping, withdrawing and rear face)
● Machining, counterspindle
8.7.17.2 Programming example: Machining, counterspindle - without previous transfer
Programming steps
● Rear face
– Work offset
Work offset is only activated
– ZV:
Parameter is not evaluated.
● Machining, counterspindle
