Machining the workpiece
4.13 Mold making view
Turning
Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
167
Changing and adapting the mold making view
Just the same as for simulation and simultaneous recording, you have the option of changing
and adapting the simulation graphical representation in order to achieve the optimum view.
Increasing or reducing the size of the graphic
Moving the graphic
Rotating the graphic
Changing the section
4.13.2 Starting the mold making view

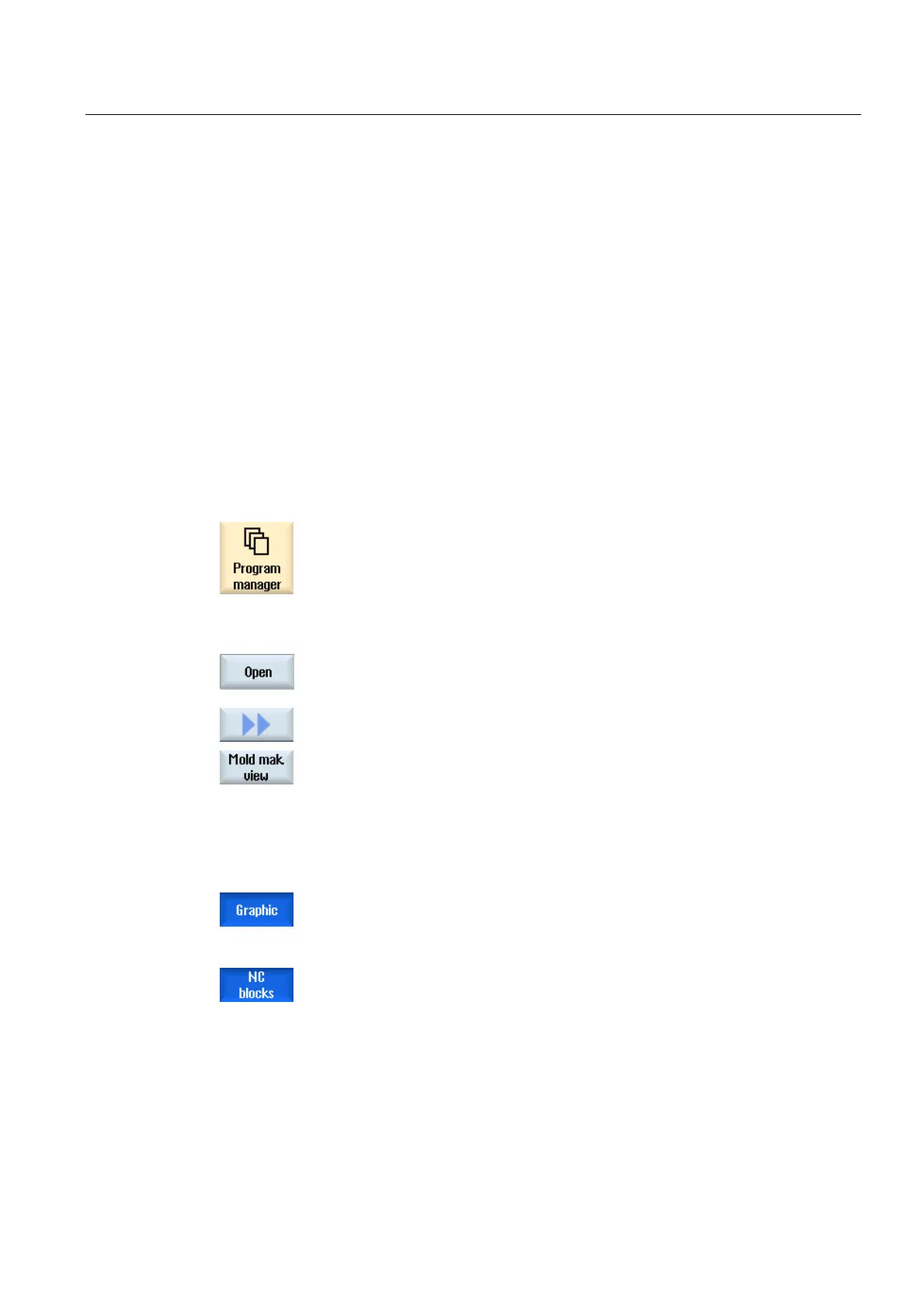

Procedure
1. Select the "Program manager" operating area.
2. Select the desired storage location and position the cursor on the
program that you would like to display in the mold making view.
3. Press the "Open" softkey.
The program is opened in the editor.
4. Press the ">>" and "Mold making view" softkeys.
The editor splits up into two areas.
The G code blocks are displayed in the left half of the editor.
The workpiece graphic is displayed in the right half of the editor.
All of the points and paths programmed in the part program are shown
in the graphical representation.
5. Press the "Graphic" softkey in order to hide the graphic and to view the
program as usual in the editor
- OR -
Press the "NC blocks" softkey in order to hide the G code blocks and
therefore only to display the graphic.
