Tool management
11.12 Displaying tool details
Turning
620 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
11.12 Displaying tool details
All of the selected tool parameters are listed in the "Tool Details" window.
The parameters are displayed, sorted according to the following criteria
● Tool data
● Grinding data (if grinding tools have been configured)
● Cutting edge data
● Monitoring data
Protection level
You require access level, keyswitch 3 (protection level 4) in order to edit the parameters in
the detail window.
Machine manufacturer
Please refer to the machine manufacturer's specifications.

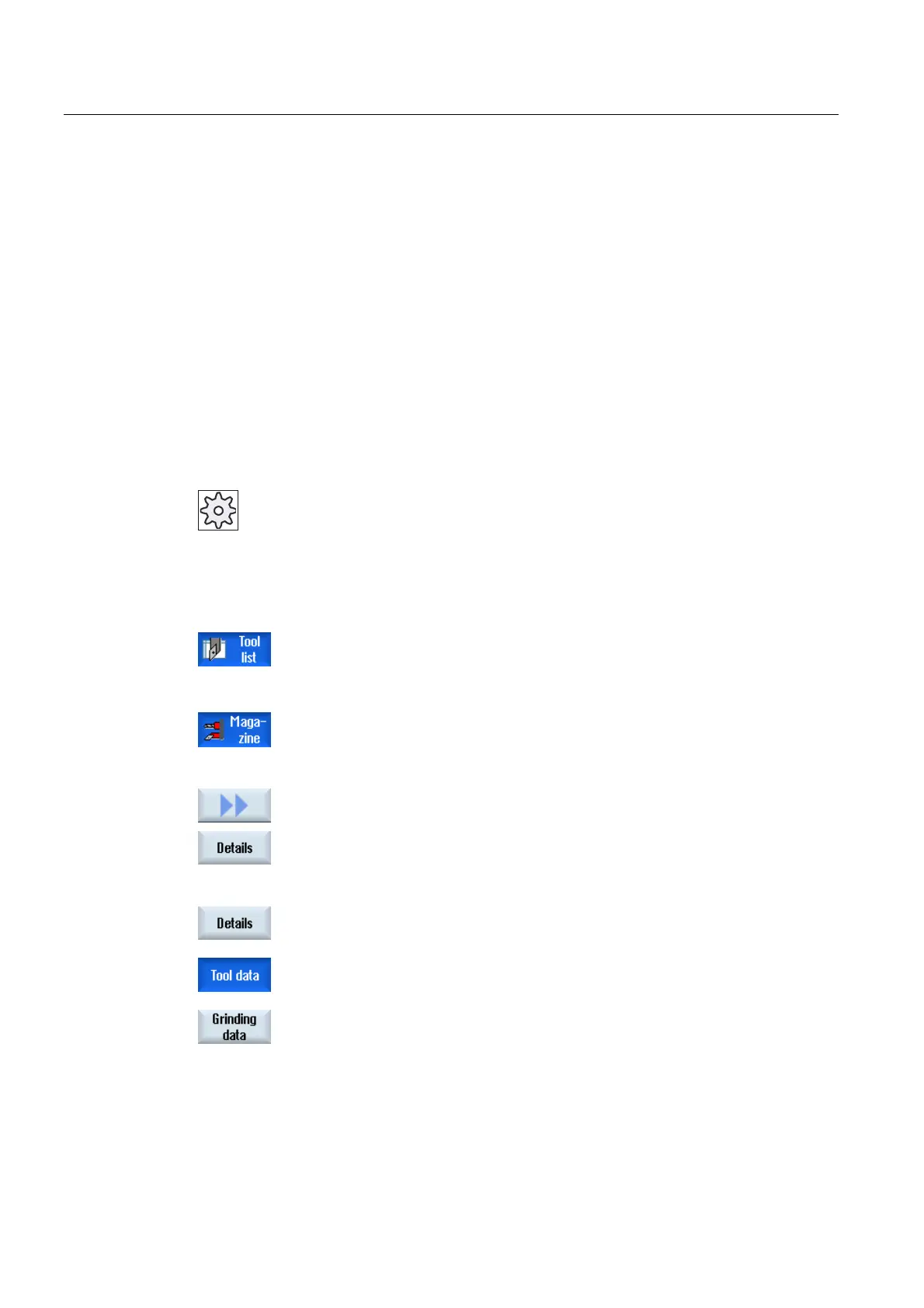

Procedure
...
1. The tool list, the wear list, the OEM tool list or the magazine is open.
2. Position the cursor to the desired tool.
3. If you are in the tool list or in the magazine, press the ">>" and "Details"
softkeys.
- OR -
If you are in the wear list or OEM tool list, press the "Details" softkey.
The "Tool Details" window opens.
All of the available tool data is displayed in the list.
4. Press the "Grinding data" softkey if you want to display the grinding
data.
To Next Page
