Tool management
11.16 Working with multitool (only 840D sl)
Turning
Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
631
11.16.6 Loading and unloading multitool
Procedure

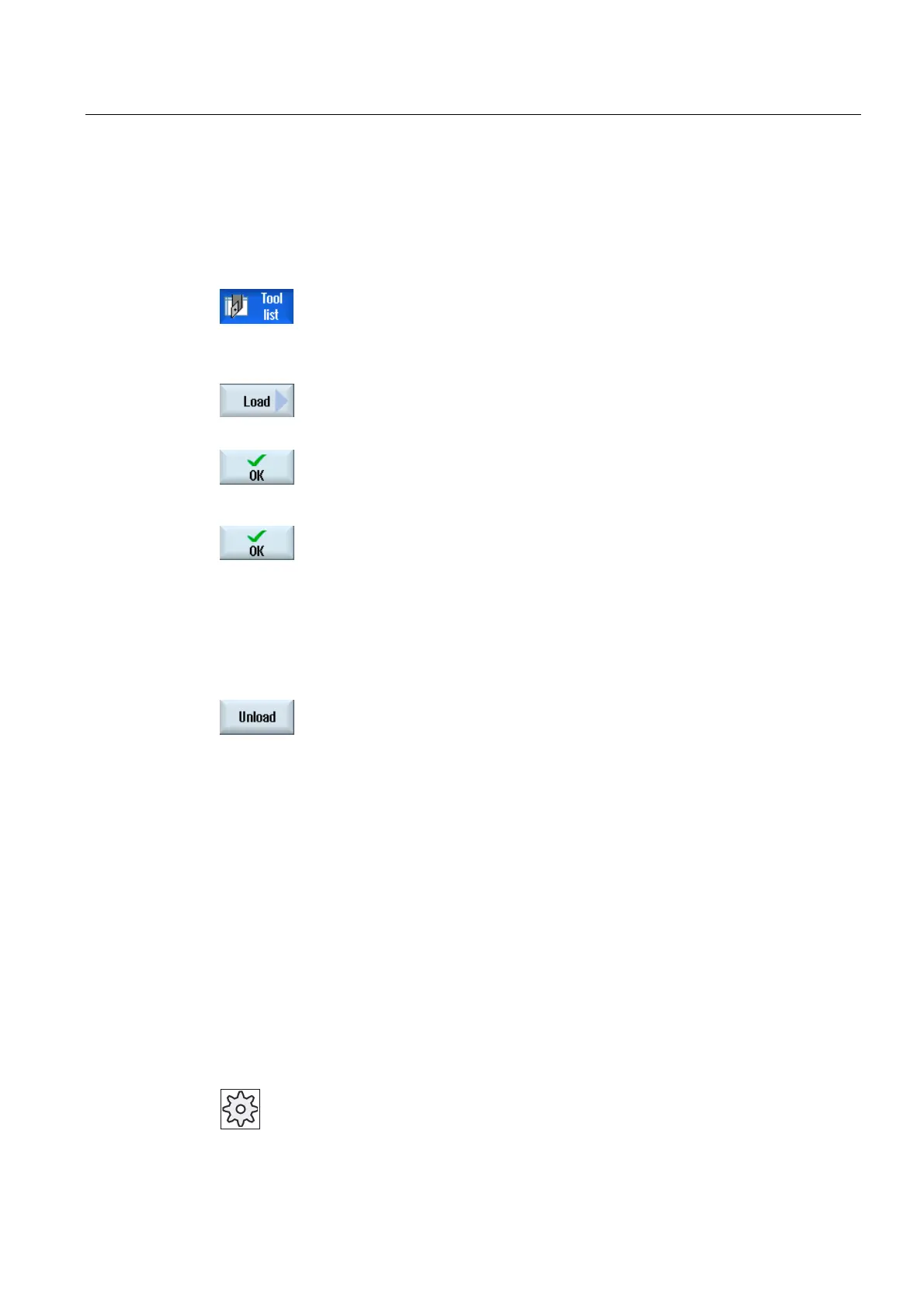

1. The tool list is opened.
2. Position the cursor at the multitool that you wish to load into the
magazine.
3. The "Load to" window opens.
The "... location" field is pre-assigned with the number of the first
empty magazine location.
4. Press the "OK" softkey to load the multitool to the recommended
empty location.
- OR -
Enter the location number you require and press the "OK" softkey.
The multitool together with the tools in it is loaded to the specified
magazine location.
Unloading a multitool
1. Position the cursor on the multitool that you would like to unload
from the magazine and press the "Unload" softkey.
The multitool is removed from the magazine and is saved in the
NC memory at the end of the tool list.
11.16.7 Reactivating the multitool
Multitool and tools located on the multitool can be disabled independently of one another.
If a multitool is disabled, then the tools of the multitool can no longer be changed in using a
tool change.
If only one tool on a multitool has a set monitoring function and the lifetime or the unit
quantity has expired, then the tool and the multitool on which the tool is located are disabled.
The other tools on the multitool are not disabled.
Machine manufacturer
Please refer to the machine manufacturer's specifications.
