Creating a ShopTurn program
7.2 Program views
Turning
220 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
7.2 Program views
You can display a ShopTurn program in various views:
● Work plan
● Graphic view
● Parameter screen, either with help display or graphic view
Work plan
The work plan in the editor provides an overview of the individual machining steps of a
program.

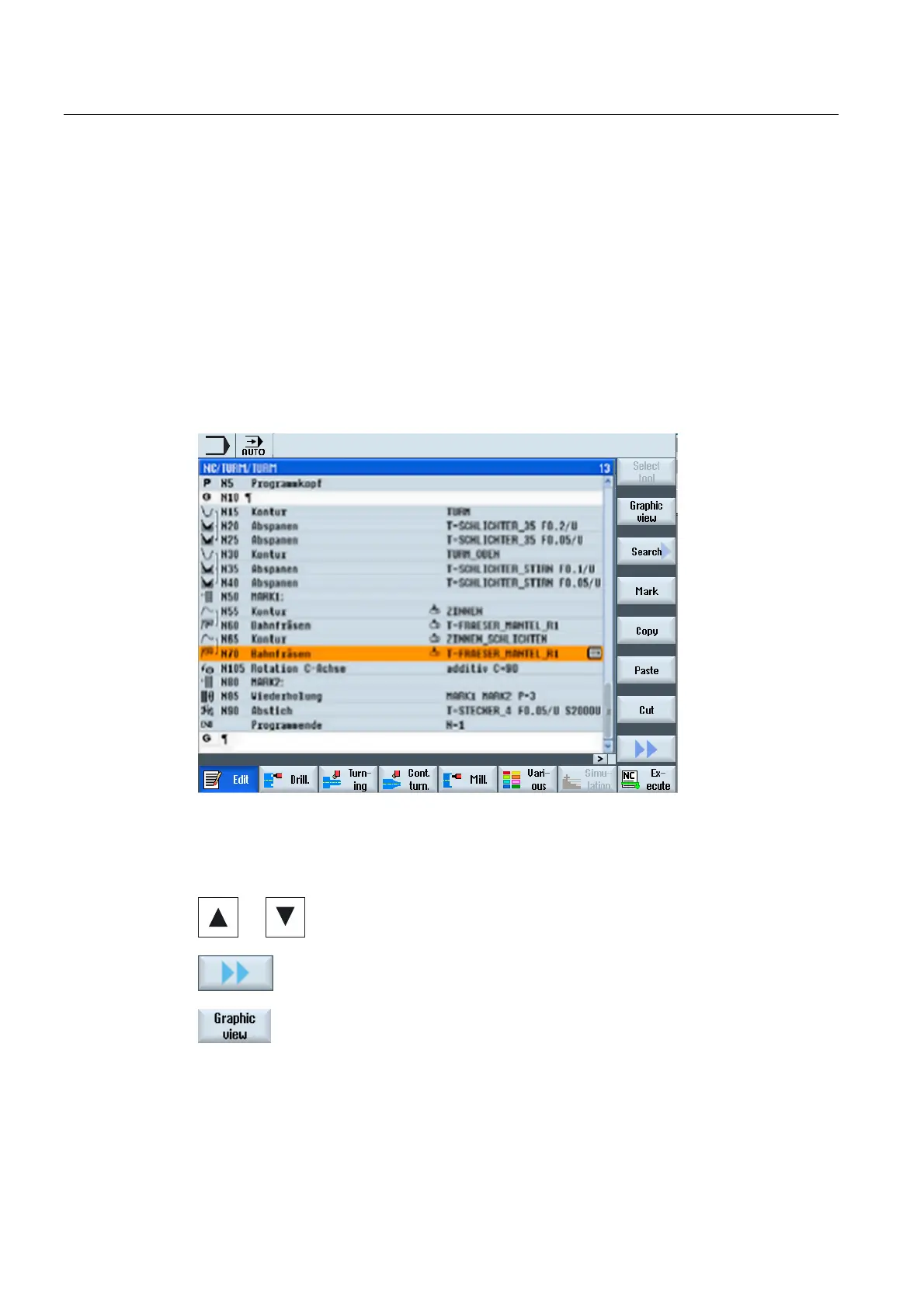

Figure 7-1 Machining schedule of a ShopTurn program
...
1. You can move between the program blocks in the work plan using
the <Cursor up> and <Cursor down> keys.
2. Press the ">>" and "Graphic view" softkeys to display the graphic
view.
