Programming technology functions (cycles)
8.7 Additional cycles and functions in ShopTurn
Turning
Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
501
8.7.7 Mirroring
Furthermore, you can mirror all axes. Enter the axis to be mirrored in each case.
Note
Travel direction of the milling cutter
Note that with mirroring, the travel direction of the cutting tool (conventional/climb) is also
mirrored.

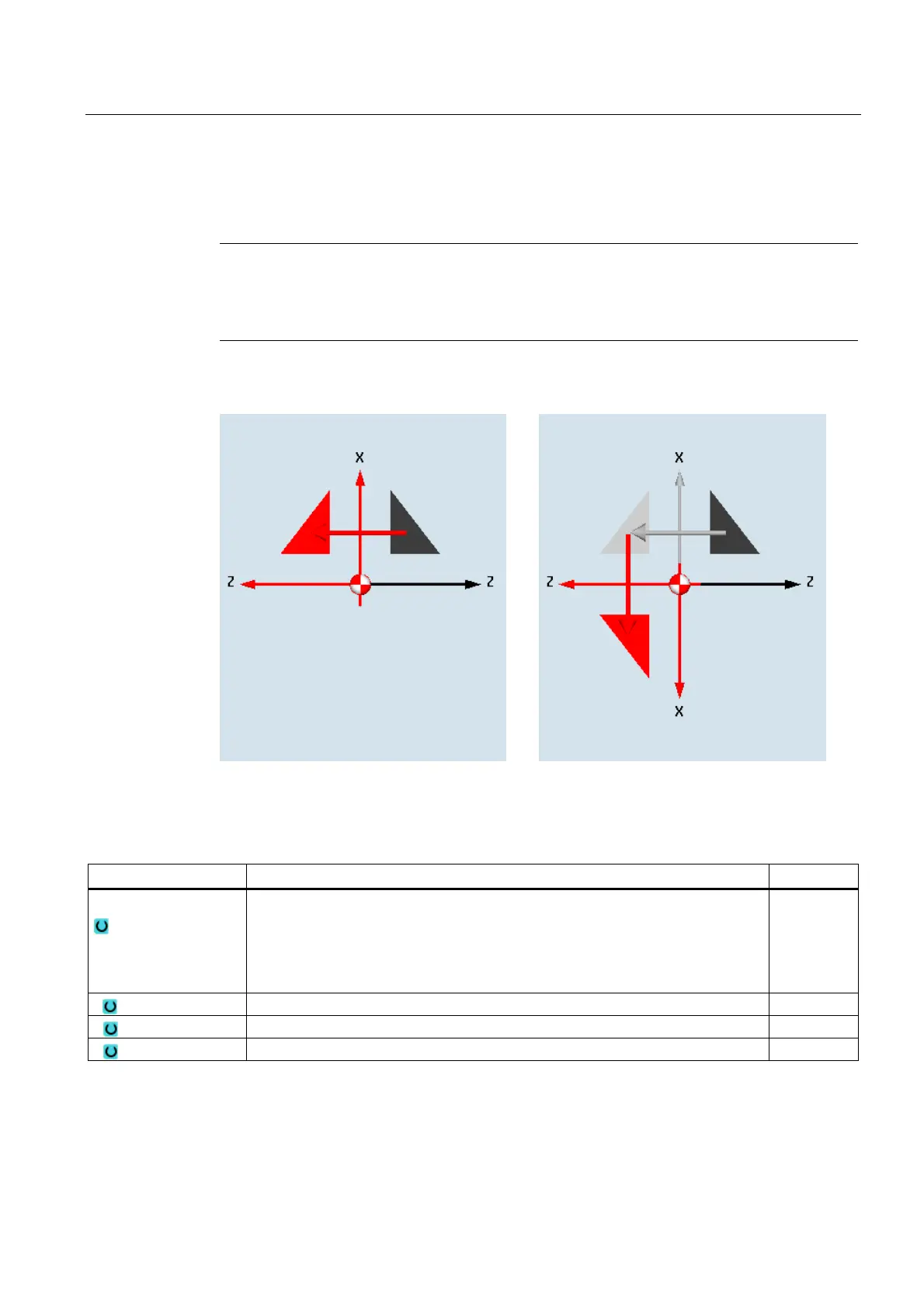

New mirroring
Additive mirroring
Table 8- 2
Parameters Description Unit
Mirroring
• New
New mirroring
• Additive
Additive mirroring
Z Mirroring of the Z axis, on/off
X Mirroring of the X axis, on/off
Y Mirroring of the Y axis, on/off
