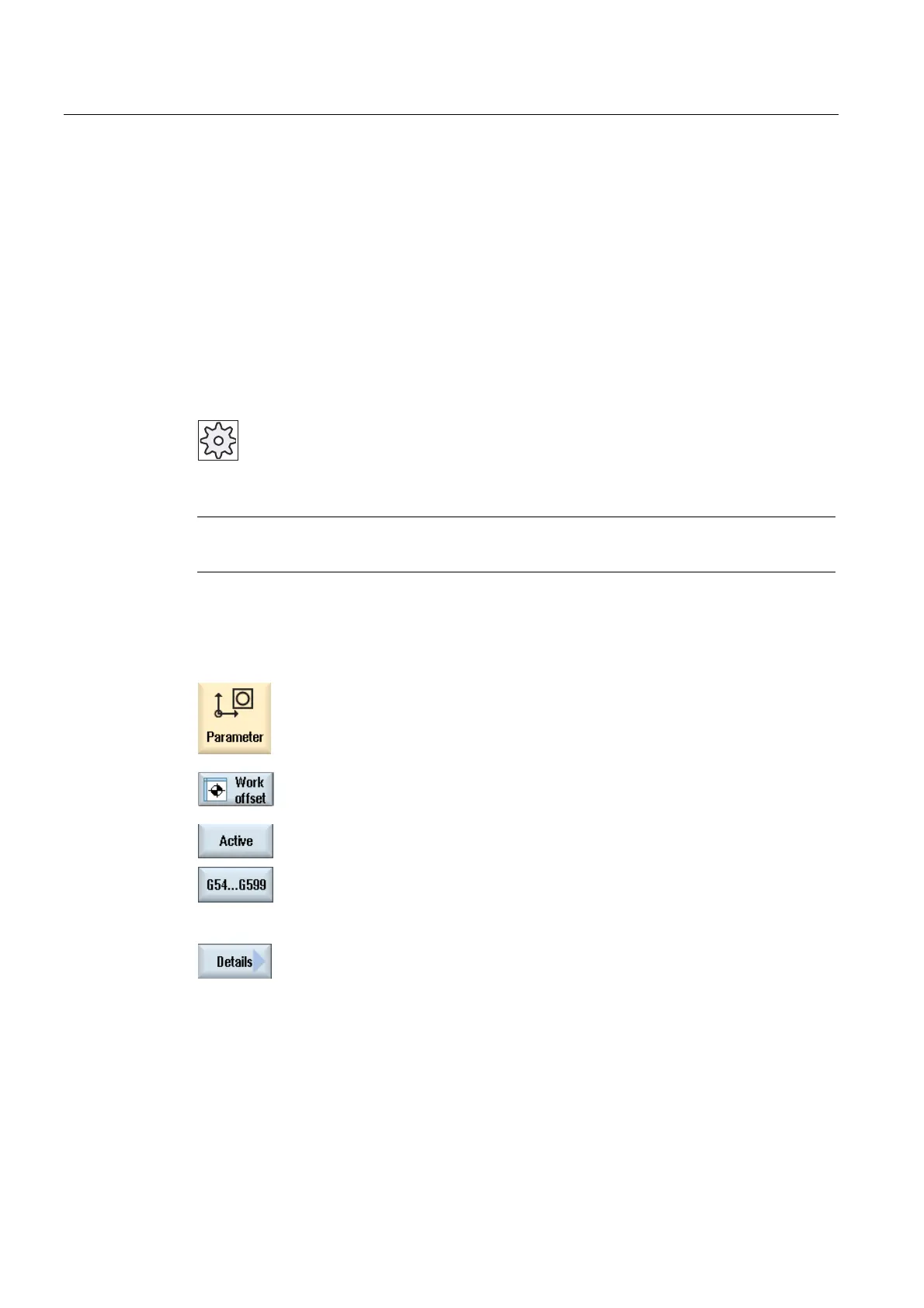

Page #88 background imageLoading...
Page #88 background image
Setting up the machine
2.7 Zero offsets
Turning
88 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
2.7.5 Displaying and editing details of the zero offsets
For each zero offset, you can display and edit all data for all axes. You can also delete zero
offsets.
For every axis, values for the following data will be displayed:
Coarse and fine offsets
Rotation
Scaling
Mirroring
Machine manufacturer
Please refer to the machine manufacturer's specifications.
Note
Settings for rotation, scaling and mirroring are specified here and can only be changed here.
Procedure
1. Select the "Parameter" operating area.
2. Press the "Zero offset" softkey.
3. Press the "Active", "Base" or "G54…G599" softkey.
The corresponding window appears.
4. Place the cursor on the desired zero offset to view its details.
5. Press the "Details" softkey.
A window opens, depending on the selected zero offset, e.g. "Zero
Offset - Details: G54 to G599".
6. You can edit the values directly in the table.
