Simulating machining
5.2 Simulation before machining of the workpiece
Turning
Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
181
5.2 Simulation before machining of the workpiece
Before machining the workpiece on the machine, you have the option of performing a quick
run-through in order to graphically display how the program will be executed. This provides a
simple way of checking the result of the programming.
Feedrate override
Feedrate override is also active during simulation.
You can change the feedrate during the simulation via the user interface.
0 %: The simulation stops.
100 %: The program is executed as quickly as possible.
See also
Changing the feedrate (Page 190)
Simulating the program block by block (Page 191)

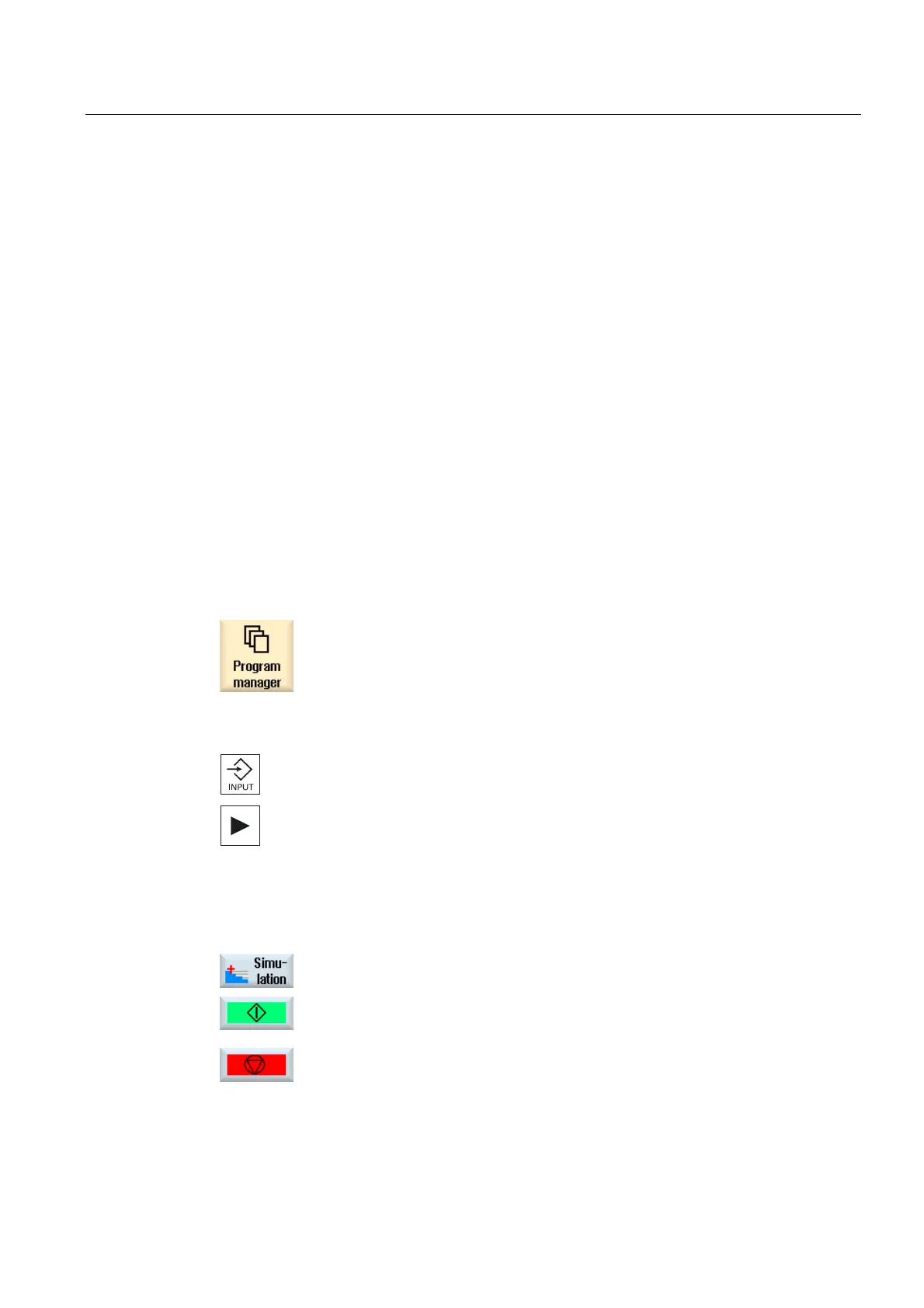

Procedure
1. Select the "Program manager" operating area.
2. Select the storage location and position the cursor on the program to be
simulated.
3. Press the "Input" or "Cursor right" key.
- OR -
Double-click the required program.
The selected program is opened in the "Program" operating area in the
editor.
4. Press the "Simulation" softkey.
The program execution is displayed graphically on the screen. The
machine axes do not move.
5. Press the "Stop" softkey if you wish to stop the simulation.
- OR -
