Tool management

11.3 Tool types

Turning

Operating Manual, 03/2013, 6FC5398-8CP40-3BA1

581

11.3 Tool types

A number of tool types are available when you create a new tool. The tool type determines

which geometry data is required and how it will be computed.

Tool types

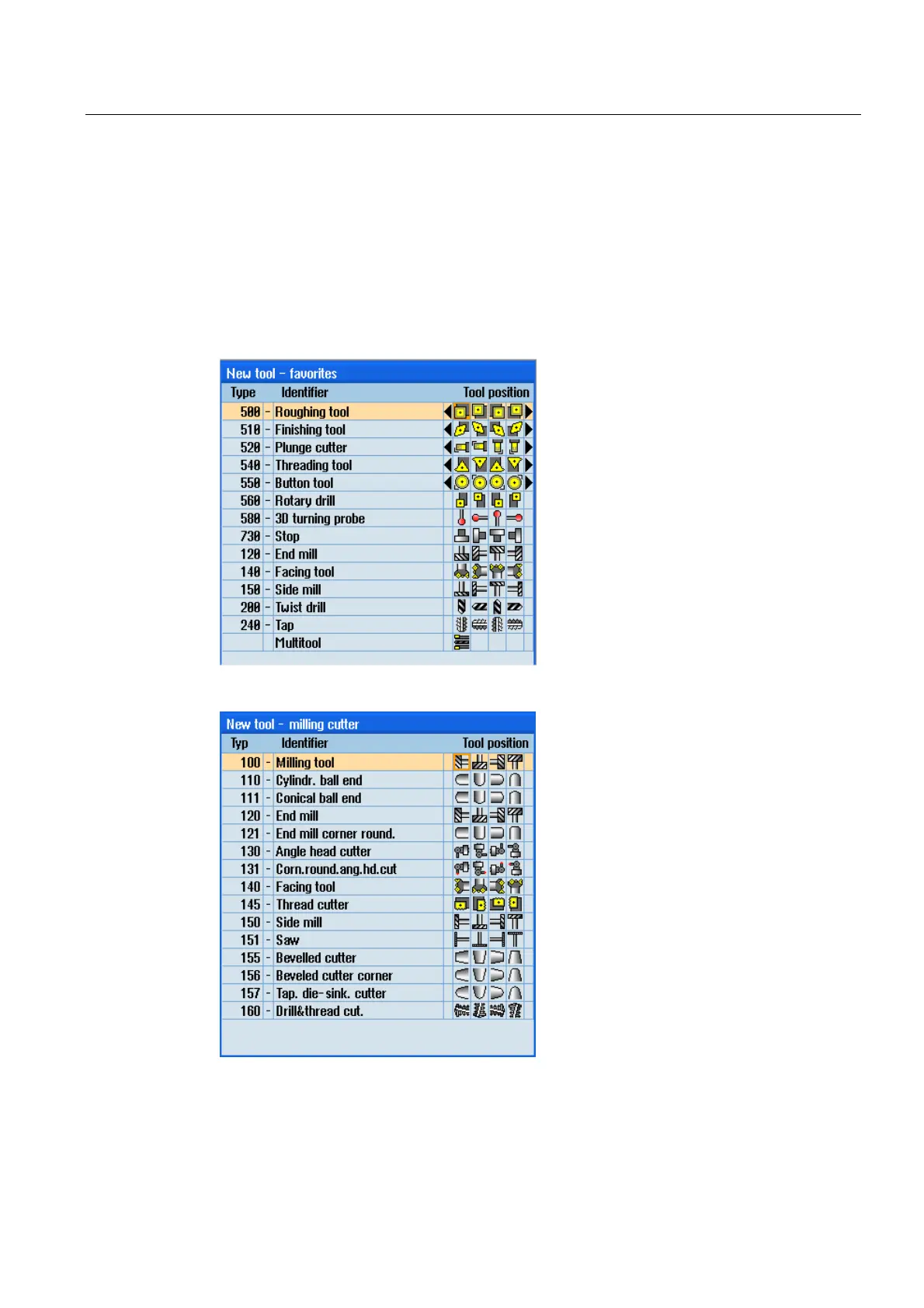

Figure 11-1 Example of Favorites list

Figure 11-2 Available tools in the "New Tool - Milling Cutter" window
