Tool management

11.16 Working with multitool (only 840D sl)

Turning

Operating Manual, 03/2013, 6FC5398-8CP40-3BA1

627

11.16.2 Create multitool

The multitool can be selected in the list of favorites as well as in the list of special tool types.

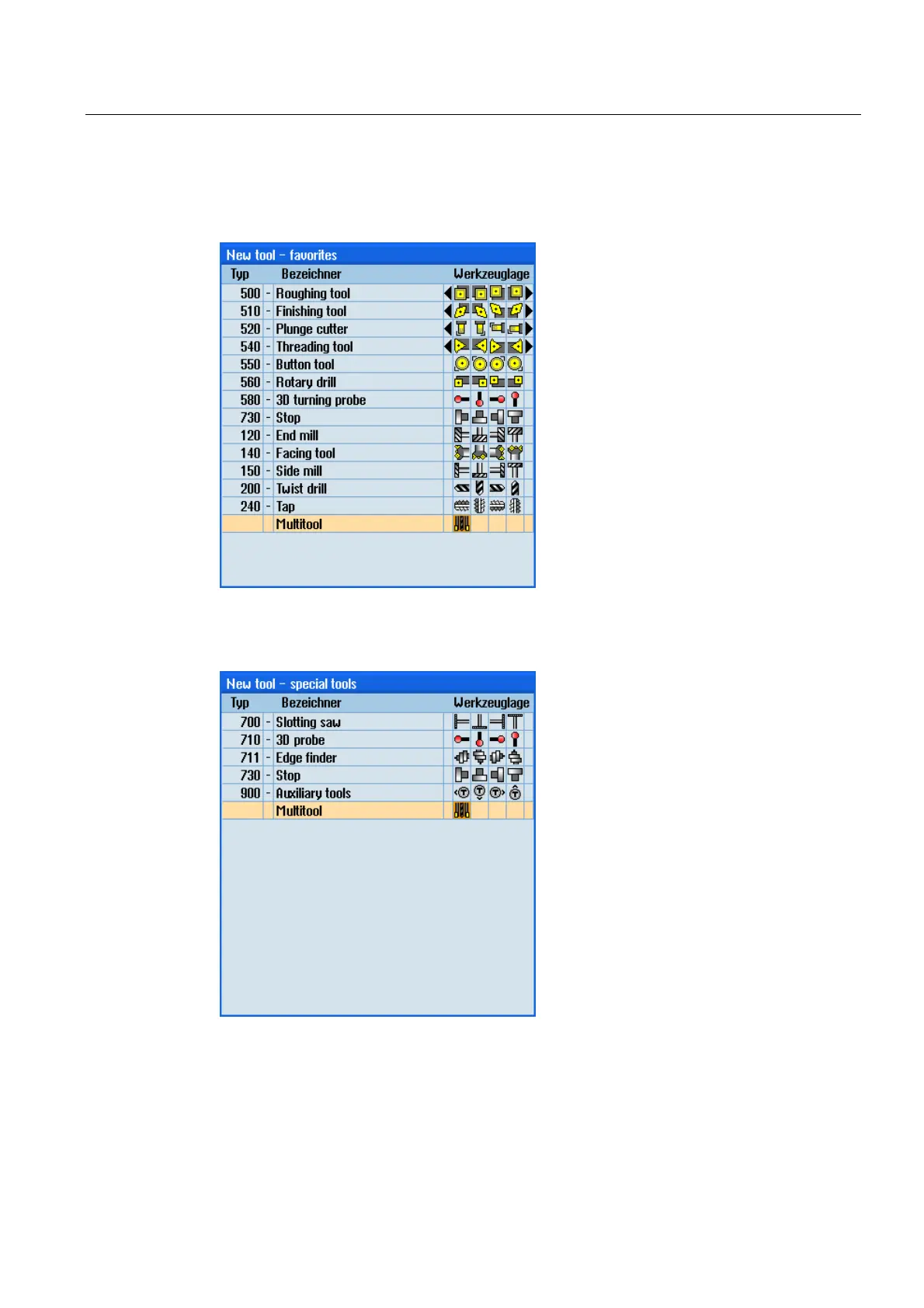

Figure 11-19 List of favorites with multitool

Figure 11-20 Selection list for special tools with multitool
