Working in manual mode
3.5 Manual retraction
Turning
110 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1

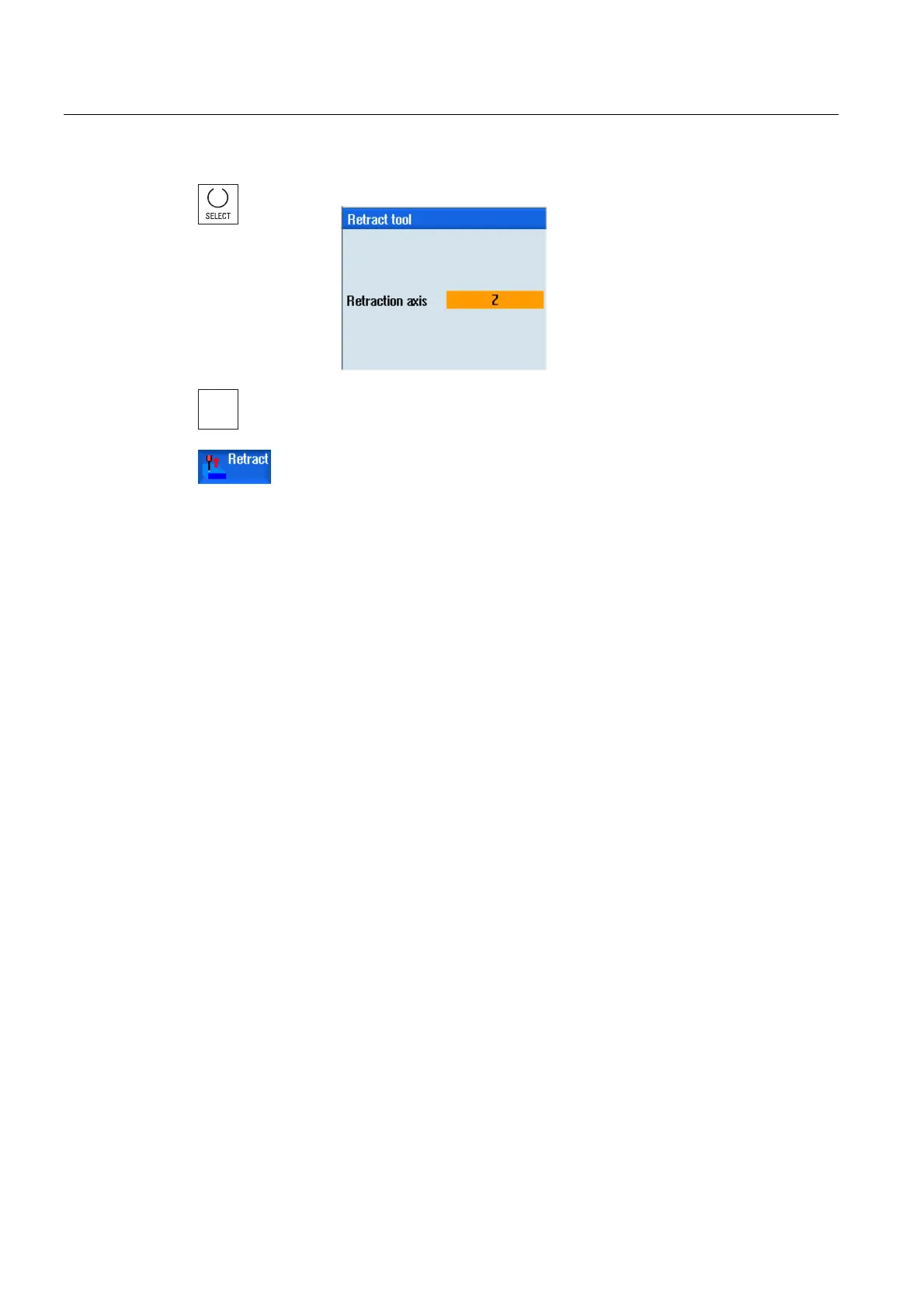

7. Select the required axis in the "Retraction axis" selection box.
=
8. Use the traversing keys (e.g. Z +) to traverse the tool from the
workpiece according to the retraction axis selected in the "Retract Tool"
window.
9. To exit the window, press the "Retract" softkey again when the tool is at
the desired position.
