Machining the workpiece

4.8 Controlling the program run

Turning

136 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1

Skip levels, activate

Select the corresponding checkbox to activate the desired skip level.

Note

The "Program Control - Skip Blocks" window is only available when more than one skip level

is set up.

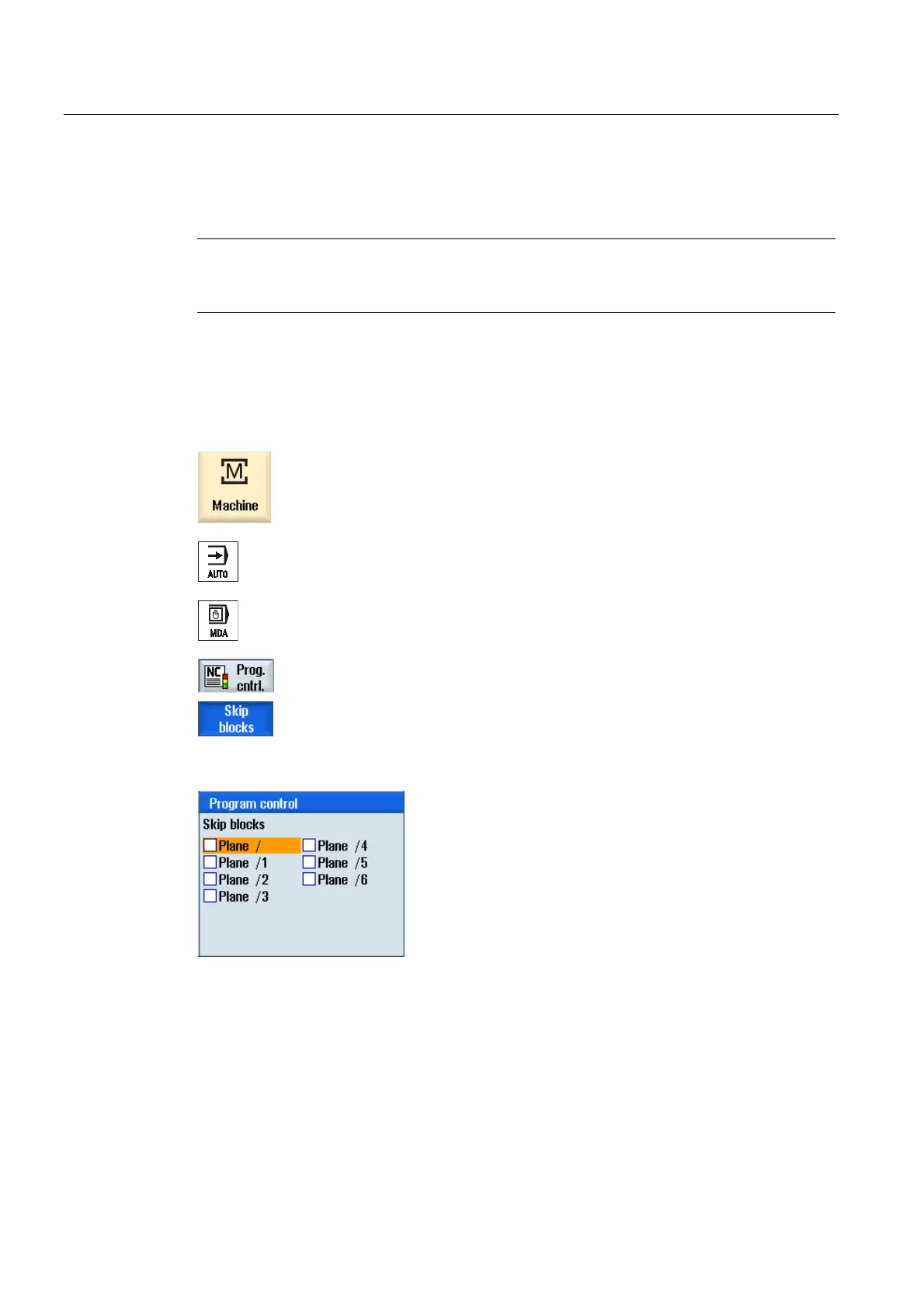

Procedure

1. Select the "Machine" operating area.

2. Press the <AUTO> or <MDA> key.

3 Press the "Prog. ctrl." and "Skip blocks" softkeys.

The "Program Control" window appears and shows a list of skip levels.
