Creating a ShopTurn program
7.18 Example: Standard machining
Turning
Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
273

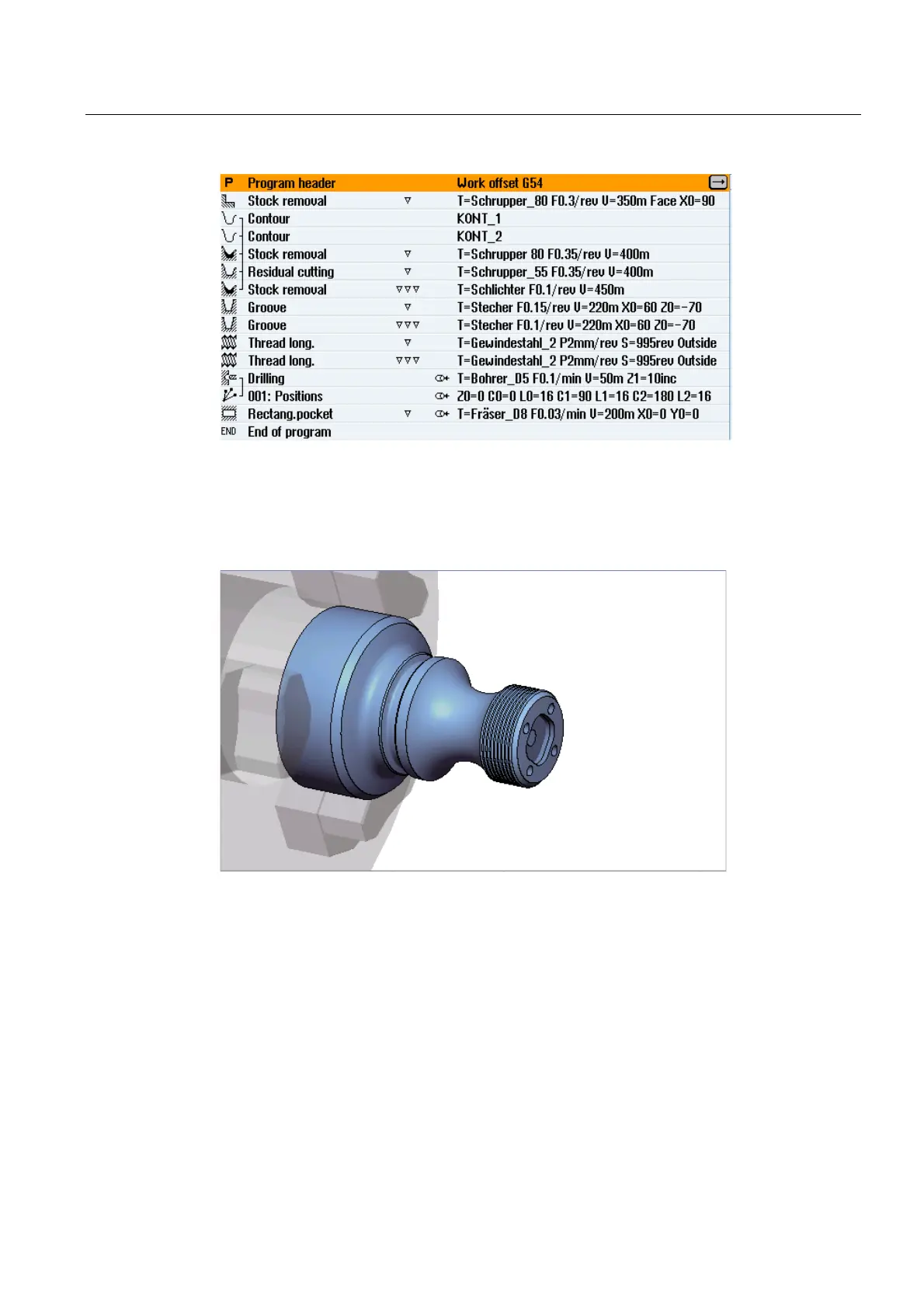

Figure 7-11 Process plan
Program test by means of simulation
During simulation, the current program is calculated in its entirety and the result displayed in
graphic form.
Figure 7-12 3D view
