Programming technology functions (cycles)
8.4 Milling
Turning
Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
395

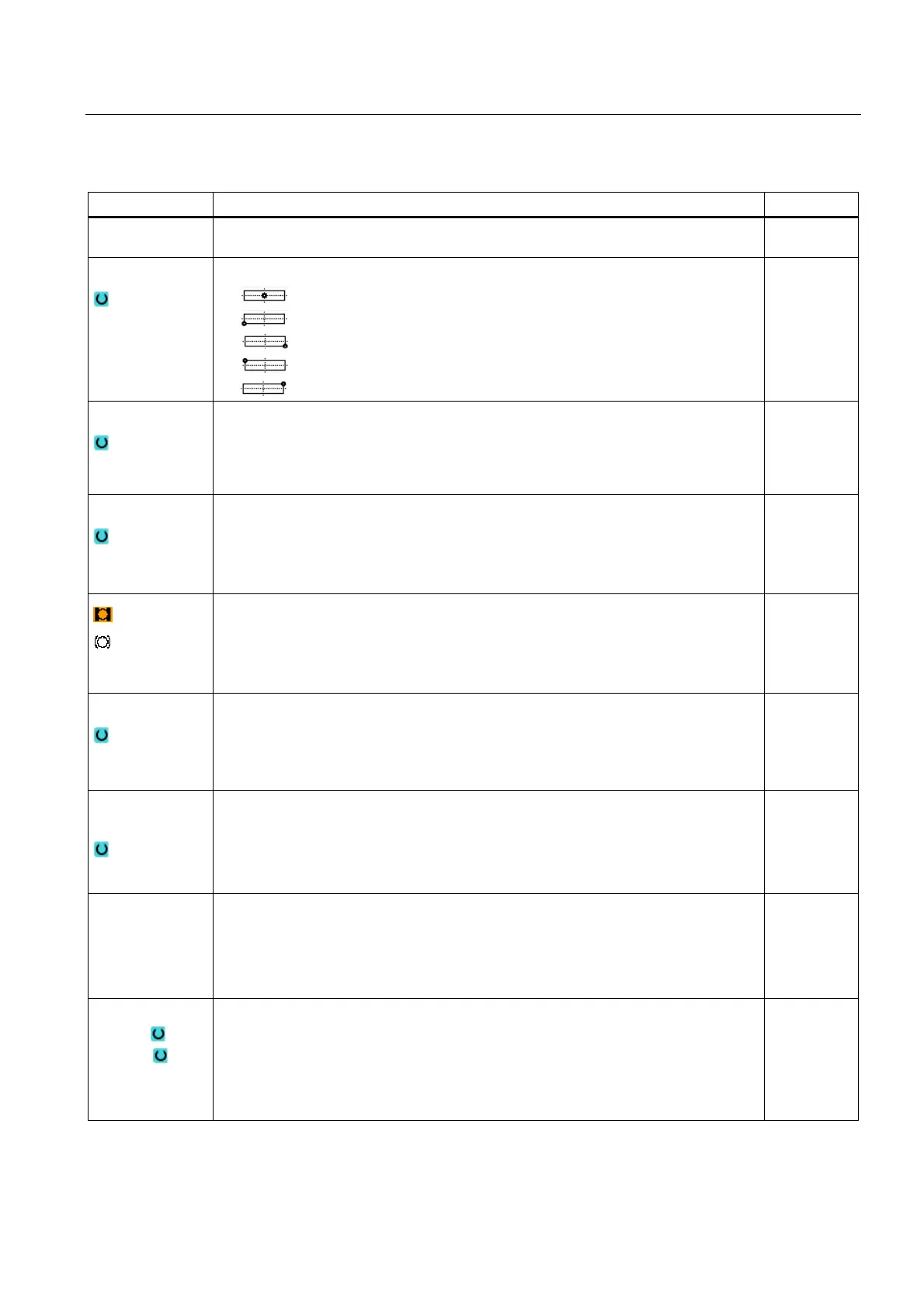

Parameter Description Unit
FZ
(only for G code)
Depth infeed rate (only for ∇ and ∇∇∇) *
Reference point
(only for
ShopTurn)
The following different reference point positions can be selected:
•
(center)
•
(bottom left)
•
(bottom right)
•
(top left)
•
(top right)
Machining surface
(only for
ShopTurn)
• Face C
• Face Y
• Peripheral surface Y
Position
(only for
ShopTurn)
• At the front (face)
• At the rear (face)
• Outside (peripheral surface)
• Inside (peripheral surface)
(only for
ShopTurn)
Clamp/release spindle (only for end face Y/peripheral surface Y)
The function must be set up by the machine manufacturer.
Machining
The following machining operations can be selected:
• ∇ (roughing)
• ∇∇∇ (finishing)
• Chamfering
Machining
position
• Single position
Mill rectangular pocket at the programmed position (X0, Y0, Z0).
• Position pattern
Position with MCALL
X0
Y0
Z0
(only for G code)
The positions refer to the reference point:
Reference point X – (only for single position)
Reference point Y – (only for single position)
Reference point Z
mm
mm
mm
X0 or L0
Y0 or C0
Z0
(only for
ShopTurn)
Face C: The positions refer to the reference point:
Reference point X or reference point length polar – (only for single position)
Reference point Y or reference point angle polar – (only for single position)
Reference point Z – (only for single position)
mm
mm
mm
