Programming technology functions (cycles)
8.7 Additional cycles and functions in ShopTurn
Turning
506 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
7UDYHUVLQJ
SDWK
3DWK
3URJUDPPHG

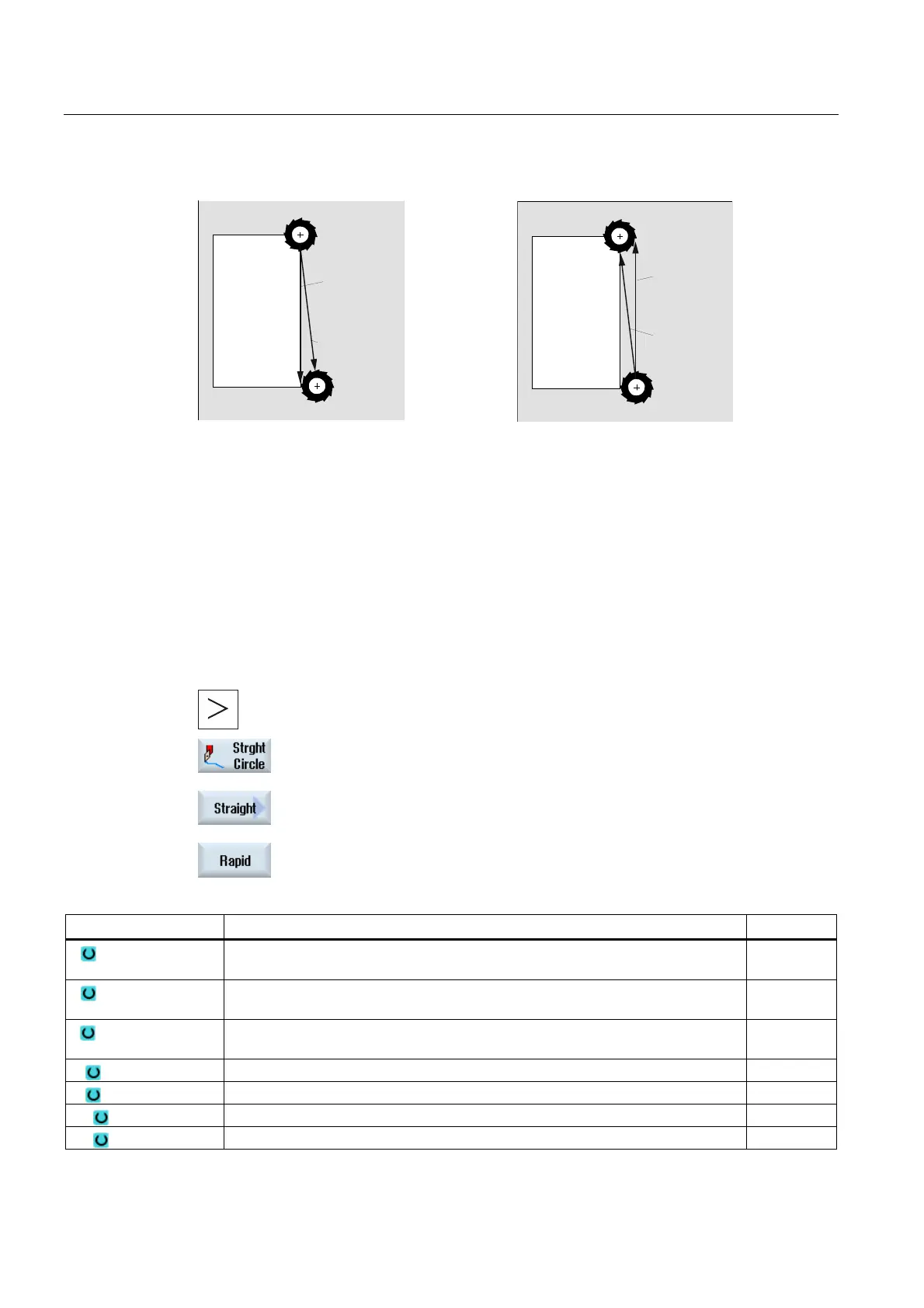

Straight line when selecting radius
compensation
7UDYHUVLQJ
SDWK
3DWK
3URJUDPPHG
Straight line when deselecting radius
compensation
If you want to prevent deviation from the programmed path, you can program the first
straight line with radius compensation or with deactivated radius compensation outside the
workpiece. Programming without coordinate data is not possible.
Procedure
1. The ShopTurn program to be processed has been created and you are
in the editor.
2. Press the menu forward key and the "Straight Circle" softkey.
3. Press the "Straight" softkey.
4. Press the "Rapid traverse" softkey if you want to use rapid traverse
instead of a programmed machining feedrate.
Parameters Description Unit
X Target position X ∅ (abs) or target position X referred to the last programmed
position (inc)
mm
Y Target position Y (abs) or target position Y referred to the last programmed
position (inc)
mm
Z Target position Z (abs) or target position Z referred to the last programmed
position (inc)
mm
U Target position (abs) or target position referred to the actual position (inc) mm
C Target angle (abs) or target angle referred to the actual position (inc) Degrees
C1 Target position of C axis of main spindle (abs or inc) mm
C3 Target position of C axis of counterspindle (abs or inc) mm
