Programming technology functions (cycles)
8.7 Additional cycles and functions in ShopTurn
Turning
516 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1

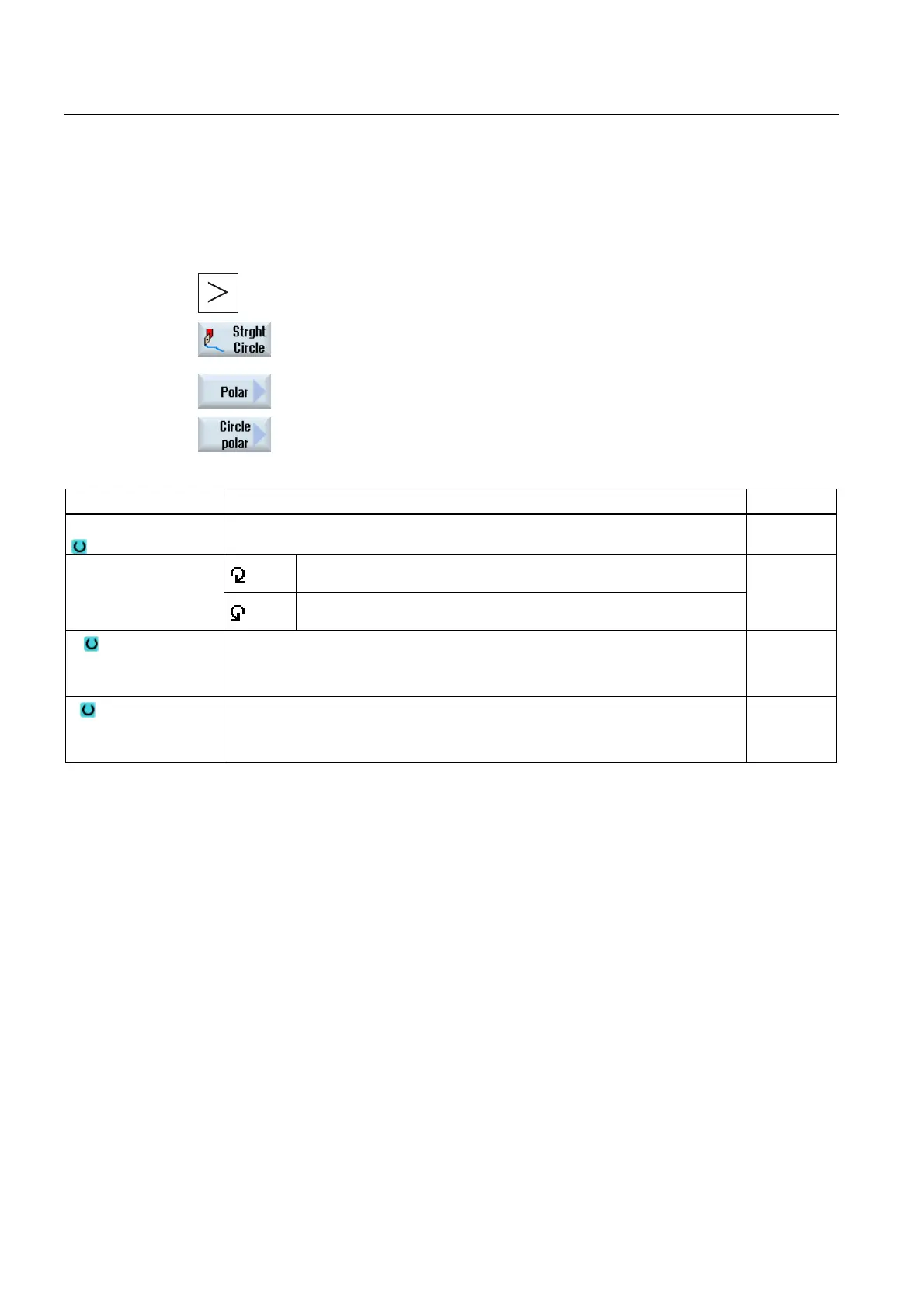

Procedure
1. The ShopTurn program to be processed has been created and you are
in the editor.
2. Press the menu forward key and the "Straight Circle" softkey.
3. Press the "Polar" and "Circle Polar" softkeys.
Parameters Description Unit
Direction of rotation
Direction of rotation in which the tool travels from the circle starting point to the
circle end point
Direction of rotation clockwise (right)
Direction of rotation counterclockwise (left)
α
Polar angle to the pole, end point (abs) or
Polar angle change to the pole, end point (inc)
The sign specifies the direction.
Degrees
F Machining feedrate mm/rev
mm/min
mm/tooth
