Multi-channel machining (only 840D sl)
9.2 Multi-channel support (only 840D sl)
Turning
Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
557
Precondition
Software options
You require the "programSYNC" option to generate and edit synchronized
programs in the multi-channel editor as well as for the multi-channel functions
in the "Machine" operating area.
Example
Your machine has 6 channels.
You configure channels 1 - 4 for the multi-channel view and define the display sequence
(e.g. 1,3,4,2).
Using the <CHANNEL> key, advance the channel in the "Machine" operating area - you
obtain the following views: Channels "1" and "3", channels "3" and "4", channels "4" and "2".
Channels "5" and "6" are not displayed in the multi-channel view.
In the single-channel view, toggle between all of the channels (1...6) without taking into
account the configured sequence for the multi-channel view.
Procedure

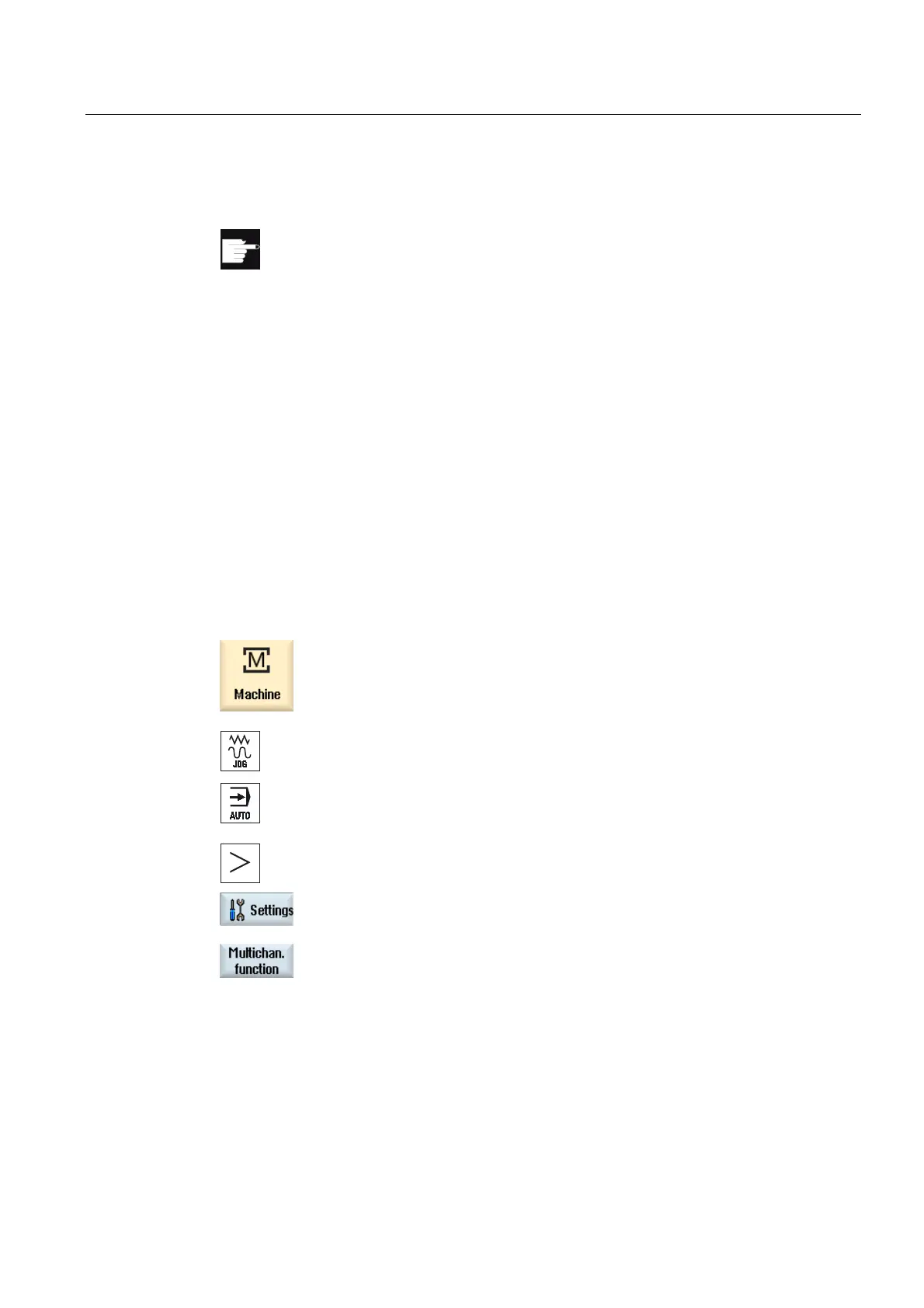

1. Select the "Machine" operating area.
2. Select the operating mode "JOG", "MDA" or "AUTO".
3. Press the menu forward key and the "Settings" softkey.
4. Press the "Multi-channel function" softkey.
The "Settings for the multi-channel functionality" window is opened.
