Multi-channel machining (only 840D sl)
9.2 Multi-channel support (only 840D sl)
Turning
Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
563
Time-related view
The wait time at the wait marks is displayed in seconds.
The total runtime is displayed at the end of the program.
If you change the program, time data is still displayed at the corresponding wait marks or the
corresponding blocks dimmed.
The determined times are kept if you change, shift or copy the program blocks.
The determined times are lost if you exit the editor using the "Close" softkey or you open or
select another program. The data must be determined again through simulation.
Time bars
7LPHD[LV
&KDQQHO
&XUVRUSRVLWLRQ
&KDQQHO
:DLWWLPH
\HOORZ
0DFKLQLQJ
WLPHEODFN
:DLWWLPHIRU
WKHSDUDOOHO
SURJUDP
:DLWWLPH
WKDWRIIHUVWKH
RSWLRQRIVDYLQJ
PDFKLQLQJ
VWHSVWREH
H[HFXWHG

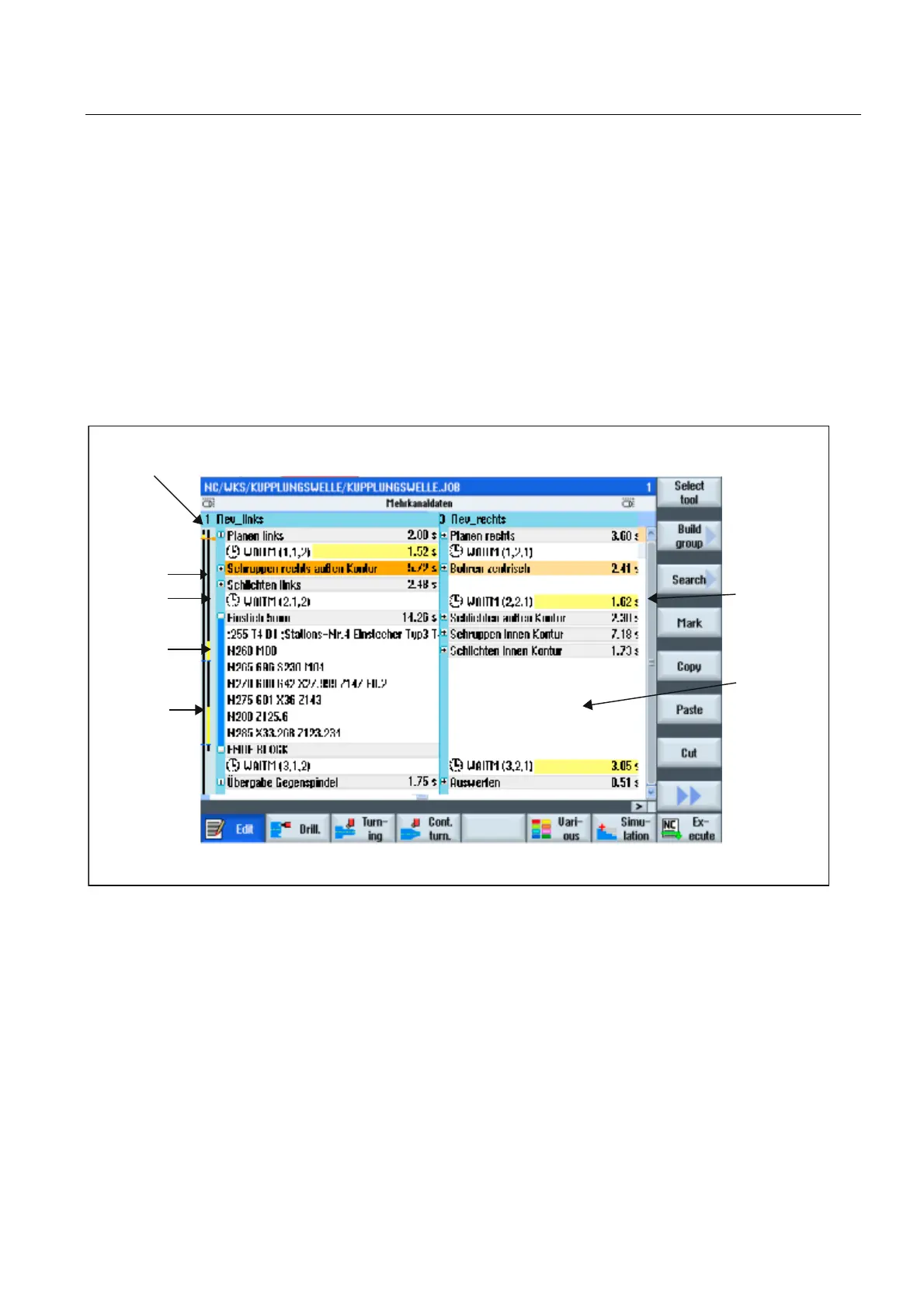

Figure 9-2 Time synchronous view
